Home > Products > Plastic Random Packing > Good Quality PE Pall Ring KY25

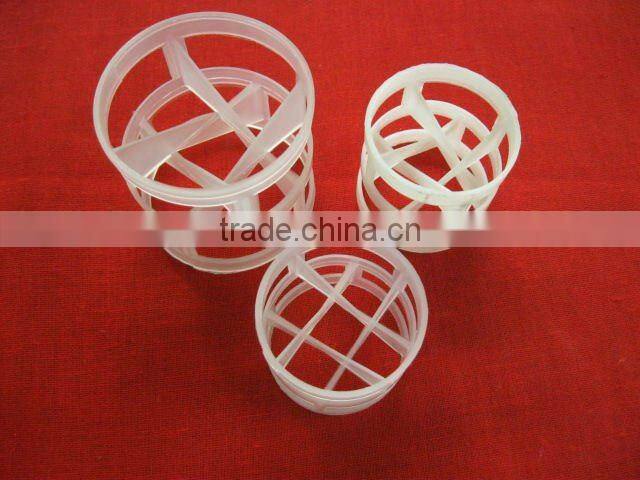

Good Quality PE Pall Ring KY25
- SHENZHEN SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | KANGYU |
Product Description
Specifications
PE Pall RingSize:16mm 25mm 38mm 50mm 76mm
Material:PE PP PVC CPVC PVDF etc
Application: Random tower packing
PE Pall Ring
Indtroduction:
Plastic pall rings is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
Features
High free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150.
Application
It is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc
Technical data
Spec. | D*H*T (mm) | Number per m³ | Bulk density (kg/m³) | Surface area (m²/m³) | Free volume (%) | F factor (m-1) |
Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 |
Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 |
Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 |
Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 |
Dg76 | 76*76*2.6 | 1930 | 70.9 | 73 | 92 | 94 |
Note: The above data are reference to material PP.
