Product Details
| Place of Origin | Shanghai, China | Brand Name | ABM | |
| Model Number | FRL01 |
Product Description

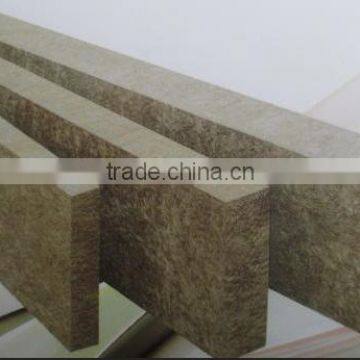

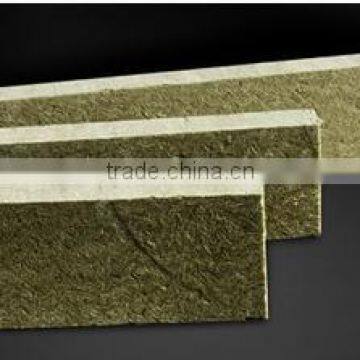

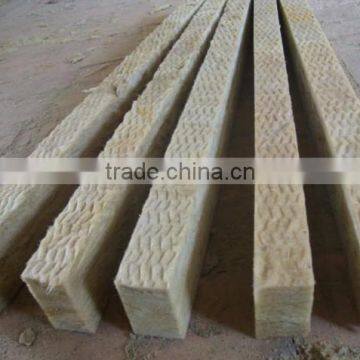

Rockwool sound insulation lamella

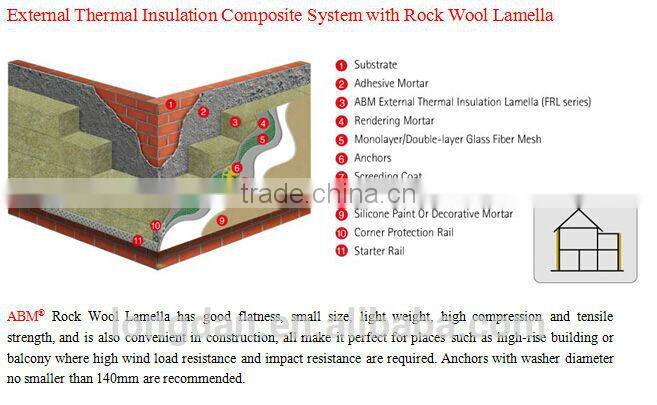

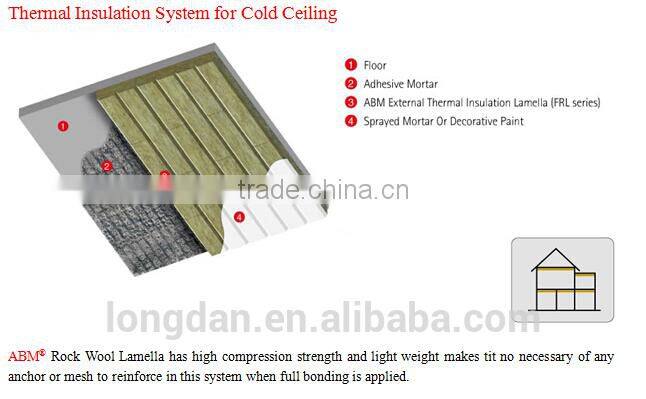

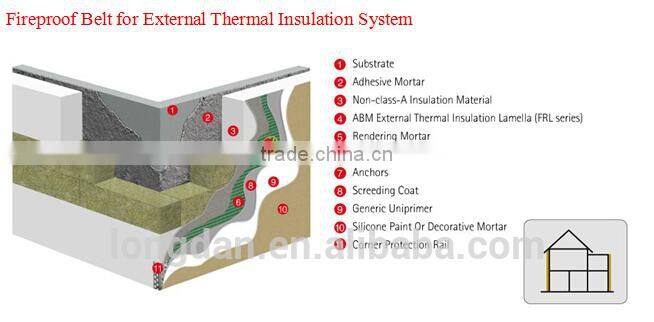

ABM® External Thermal Insulation Lamella(FRL series)is designed for external thermal insulation composite system and dry-hanging curtain wall thermal insulation system as a fire proof insulation material.or applied together with other insulation materials whose combustion performance infeior tu class-A such as EPS, XPS,PU to improve the fire performance of the whole system.It can also be applied to cold ceiling for protecting,thermal insulating and sound absorbin.Suitable for new/expansion project and retrofitting project of existing buildings.
Sound Absorbing Fireproof 100kg/m3 Exterror Wall Thermal Insulation Lamella for House Wall
Standard Specification
| Product Type | FRL 80 | FRL 100 | FRL 120 |
| Nominal Density,kg/m³ | 80 | 100 | 120 |
| Size(L*w),mm | 1200×150,1200×200,1200×250 | ||
| Thickness,mm | 30~200 | ||
Other size or density may be available on request
Main Properties and Technical Data
| Properties | FRL80 | FRL100 | FRL 120 | Unit | Standard |
| Compressive Strength(10% deformation) | ≥40 | ≥60 | ≥80 | kPa | GB/T 13480 |
| Tensile Strengh (perpendicular tu sur face ) | ≥80 | ≥120 | ≥180 | kPa | JG 149-2003 Annex D |
| Thermal Conductivity(25°C) | ≤0.043 | W/(m.k) | GB/T 10295 | ||
| Reaction to Fire | Class A | GB/T 8624-1997 | |||
| Acidity Coeffcient | ≥1.8 | GB/T 5480 | |||
| Water Repellence | ≥99 | % | GB/T 10299 | ||
| Water Vapor Absorption | ≤1.0 | wt % | GB/T 5480 | ||
| Short-term Water Absorption(partial immersion,24h) | ≤ 0.5 | kg/m² | GB/T 25975-2010 Annex B | ||
| Long-term Water Absorption(partial immersion,28d) | ≤2.0 | kg/m² | GB/T 25975-2010 Annex B | ||
| Noise Reduction Coeffcient(NRC) | ≥0.6 | ---- | GB/T 18696.1 | ||
| Dinebsuibak Stability | ≤1.0 | % | GB/T 8811 | ||
| Melting Temperature | ≥1000 | °C | GB/T 5480 | ||
| Thickness Deviation | ±1 | mm | GB/T 5480 | ||
| Squareness | ≤5 | mm/m | GB/T 5480 | ||
| Flatness | ≤2 | mm | GB/T 25975-2010 Annex A | ||
Other size or density may be available on request.
Other properties meet GB/T 25975-2010 and GB/T 19686-2005's requirements
Product Application
| Packing | plastic bad or other packing way offered |
| Loading | 20 feet container ,40feet container ,40HQ container |
| Sample Policy | sample offered in 1-3 days |
| Service | phone, rademanger ,email and fax are available ,welcome visit us |
