HSS drill Straight shank twist metal drilling countersink drill bit with high quality
- 500000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
Cheap White Color China Diatomaceous Earth with Plastic Bag
-
High Quality White Color Powder Diatomaceous Earth for Food
-
High Quality Cheap 2.4MM White Color Expanded Clay Pebbles for Agriculture Material
-
High Quanlity Cheap 100ML 3-6MM Size White Color Expanded Clay Pebbles for Agricultre Hydroponics
-
Excellent Thermal Shock Resistance 1600 High Temperature Heat Insulation Blanket for High Temperature Furnace
-
High Quality Fireproof Boiler Insulation for Industry
Product Details
| Model Number | TDS13 | Type | Twist Drill Bit | |
| Material | High Speed Steel | Use | Metal Drilling |
Product Description

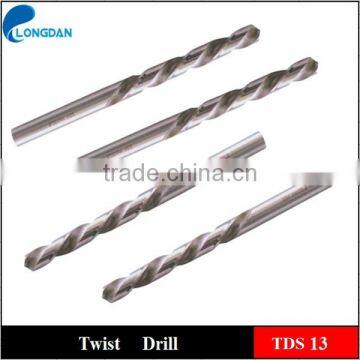

Item name: Drill bit
Product Description
STRAIGHT SHANK TWIST DRILL BIT is metal drill bits fully ground from solid heat resistant high speed steel produced.
The HSS twist drill bit ,a high speed steel bit,comes in many sizes,as well as shapes and functions.Usually,the shape for most bits is the twist form.The front edges cut the material while the spirals remove the debris from the hole.Twist brill bits are normally made of alloys and are designed for a specific task.
Specifications
1.Process:Fully Ground

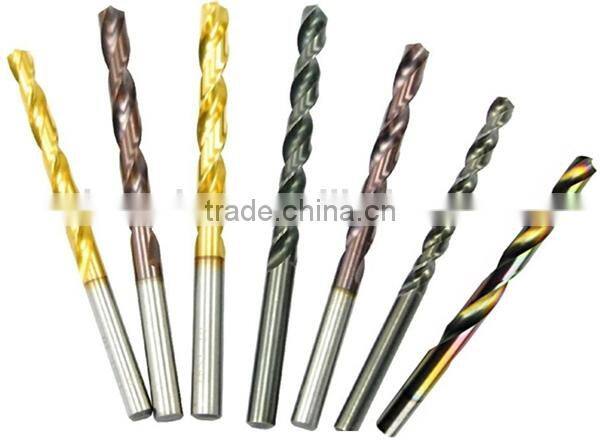

2.Surface Finishing: White, Black, Tin-Coated, Amber
HSS Drill Bits, Fully Ground
3.Size available:from 0.2-13.0mm
4.Degree:118 degree, normal point angle or 135 split point
Diameter(mm) | Spiral Flute Length | Overall Length | Diameter(mm) | Spiral Flute Length | Overall Length |
1 | 12 | 34 | 1.1 | 14 | 36 |
1.2 | 16 | 38 | 1.35 | 18 | 40 |
1.55 | 20 | 43 | 1.75 | 22 | 46 |
2 | 24 | 49 | 2.15 | 27 | 53 |
2.4 | 30 | 57 | 2.7 | 33 | 61 |
3.1 | 36 | 65 | 3.4 | 39 | 70 |
3.8 | 43 | 75 | 4.3 | 47 | 80 |
4.8 | 52 | 86 | 5.4 | 57 | 93 |
6.1 | 63 | 101 | 6.8 | 69 | 109 |
7.6 | 75 | 117 | 8.6 | 81 | 125 |
9.7 | 87 | 133 | 10.7 | 94 | 142 |
11.9 | 101 | 151 | 13.3 | 108 | 160 |
14.25 | 114 | 169 | 15.25 | 120 | 178 |
16.25 | 125 | 184 | 17.25 | 130 | 191 |
18.25 | 135 | 198 | 19.25 | 140 | 205 |
20.0 | 140 | 205 |
|
|
|
In all rotary and percussion drilling machines and in machines for mechanical processing;For drilling in Stainless steel, steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Packing | Plastic bag and carton box or other packing way offered |
Loading | 20 feet container ,40feet container ,40HQ container |
Sample Policy | sample offered in 1-3 days |
Service | phone, rademanger ,email and fax are available ,welcome visit us |
