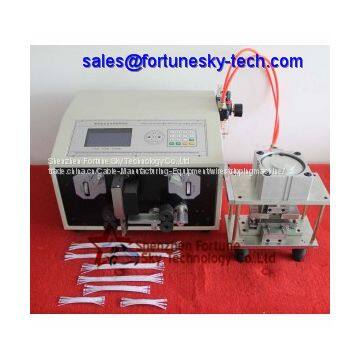

Automatic Ribbon Cable Strip Split Machine
- 100 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
Product Details
| Brand Name | Fortune Sky | Place of Origin | China | |
| Model Number | FSSWT-508PX-II | Usage | Stripping |
Product Description
Automatic Ribbon Cable Strip Split Machine
Specially Split Cable Max12Pins
Feature:
1.）Inexperienced user can operate it easily.
2.）Support full strip, half strip and semi-strip.
3.）Installed 100 processing program, no need to reset program while change product. 4.）Automatic out/inlet line, timing start, unique wire stripping stacking.
5.）No matter how long split from ribbon cable head or end, just installation a set of splitting cutter die is ok
Model no.: FSSWT-508PX-II
Power: AC 110V/220V/ 50/60Hz /350W
Size:420X380X280
Display:Chinese/English LCD Display
Net Weight:32(KG)
Cutting Length:1-150000mm
Cutting error:(0.2±0.002×L)mm adjustable
Stripping length:wire head 0-50,wire nail 0-50mm
Mid Cutting Stripping:13 places
Scope:flat cable split cable max weight 12Pins
Conduct Max Height:80x25x2mm
Available Wire: PVC/Teflon/Silicon Rubber Wire/Fiberglass etc.
Cutter material: Hard Carbide
Stripping Speed: L=100mm, 3000-5000pcs/h
Driving Mode:Four Wheels Driving
