2016 Newest Advanced Design Stainless Steel JHN 15-90 Chemical Roll Mixer
- China Main Ports
- T/T L/C D/P D/A Credit Card
You May Like
-
2016 Innovate Design JHN 15-90
-
China Best Selling Small Size 3L-110L High Effective Powder Industrial Blender JHN50
-
Good Price Stainless Steel Multiple Barrels Mixing Machine
-
Time-saving Multiple Barrels Grind Machine JHN-50
-
Newest Small Size 316 304 Stainless Steel Mixing Tank
-
Unique Design Strong R&D Team Stainless Steel Powder Cosmetic Mixing Machine
Product Details
| Mixer Type | Screw | Application | Powder | |
| Additional Capabilities | Milling | Place of Origin | Henan, China | |
| Brand Name | JIN HE | Model Number | JHN | |
| Warranty | 12 months |
wooden case and at customer's requirement
Product Description

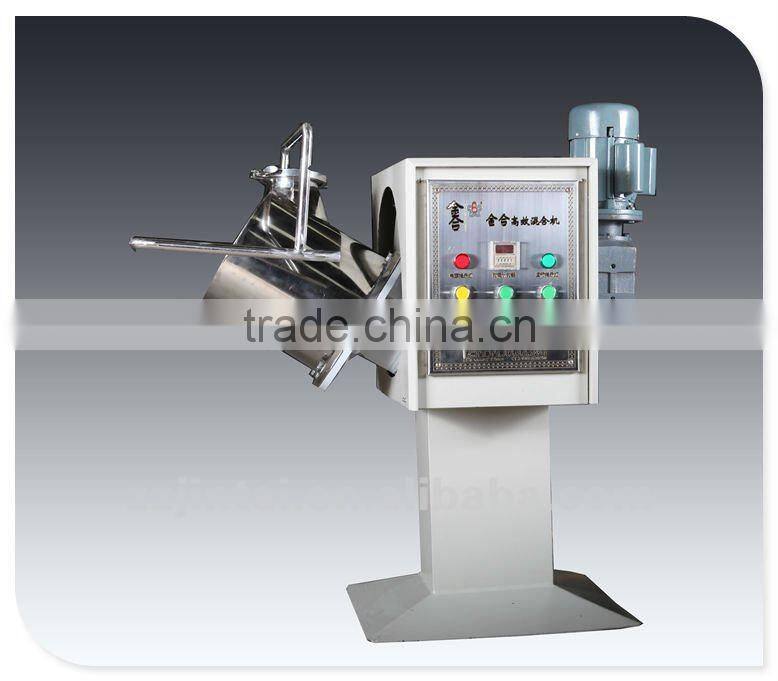

2016 newest advanced design stainless steel JHN 15-90 chemical roll mixer
Company Introduction:
Zhengzhou Jin Tai Metal Materials Co., Ltd was established in 2001. It is a professional manufacturer for mixer (also known as mixing machine). The cooperation has about 125 staffs, including 15 senior engineer, which is a comprehensive enterprise engaged in research and manufacture mixing machine. The company's production base is located in No. 1 Zhongxing Road, Xinzheng City and its headquarter is in Weilai Garden, No. 71 Weilai Road, Zhengzhou City, which is close to the CBD of Zhengzhou City.
Our advantages:
JHN series mixer
JINHE® JHN Double Movement Mixer realizes the dream of installing different volume containers in one machine, easy loading and unloading.
JINHE®JHN series machine is an excellent equipment which bears extraordinary imagination of our designers. It combines double movement mixing principle and complicate mixing task perfectly.
1st .Different volume containers can be installed whenever needed. When customers install one 3 L container, it can be used as test for mini mixing. If install one 15L container, it can finish small batch mixing task, fully develop the vast potential of the machine.
2nd .Inherited the advantage of double movement, this utility-type machine not only realize cross revolving shaft double movement, but also has its inherent advantages such as ideal mixing effect, large loading ratio, cost less time, saving electricity and money.
3rd .Convenient installation: A skillful worker only needs 5 minutes to change and install containers.
4th .Dismountable installation: containers can be used as special purpose, dismounted and cleaned whenever needed, so this machine can effectively prevent cross-contamination between batches.
Technical Parameter
Model | Barrel Capacity (L) | Max Barrel Capacity (L) | Max Weight Capacity (kg) | Barrel Revolution Speed(r/min) | Blade Revolution Speed(r/min) | Motor Power | Size(mm) | Weight |
JHN-15 | 3~18 | 2~15 | 18 | 24 | 62.4 | 0.37 | 1045*600*990 | 100 |
JHN-50 | 20~50 | 15~40 | 55 | 20 | 60 | 1.1 | 1200*780*1250 | 300 |
JHN-90 | 60~90 | 45~70 | 90 | 21 | 56 | 1.5 | 1300*820*1400 | 500 |

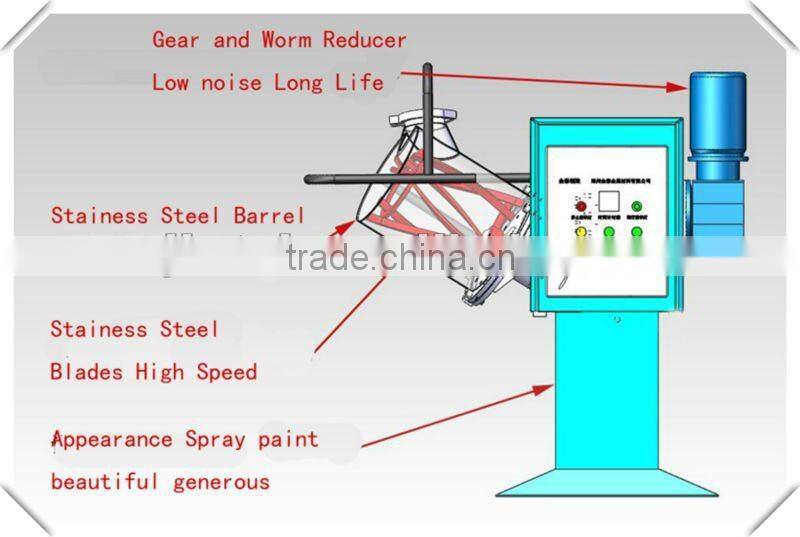

Barrel and inside blades

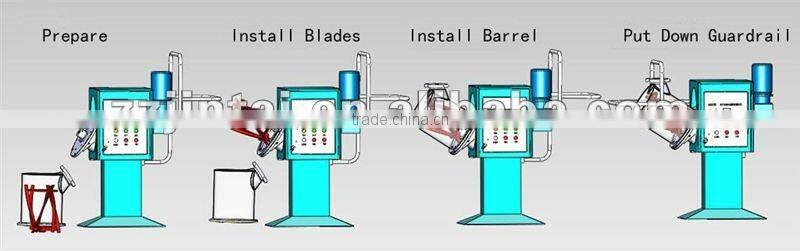

Installation Ways

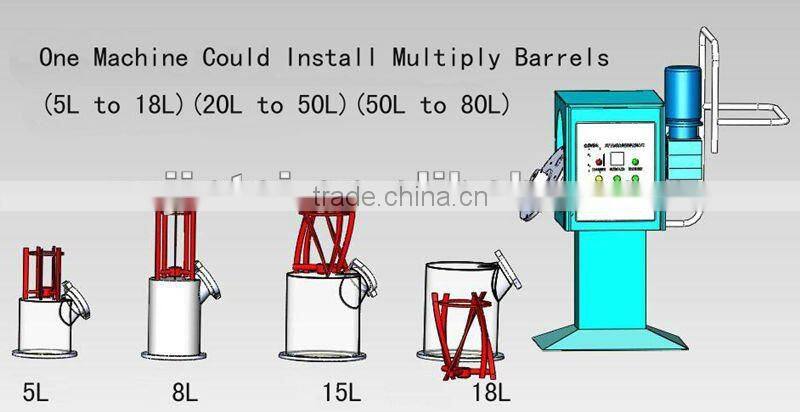

Different Berrals

Package
Our Exhibition Hall
Our Booth On Fair
Our Customer
For more details welcome visit our website:
...
Company Profile
Zhengzhou Jin Tai Metal Materials Co., Ltd. was established in 2001. Our company is a professional mixer (also known as mixing machine) manufacturer. Our corporation has about 185 staff members, including 15 senior engineers. Our company integrates research and manufacture during our development. Our production department is located at No.1, Zhongxing Road, Xinzheng City and our headquarters is located at No.71, Weilai Road, Weilai Garden, Zhengzhou City, being close to the famous Zhengdong New District. For mixing equipment, most companies are still producing traditional equipment. Some equipment has not been changed for over 30 years. Over these years, our company has been sticking to the spirit of "Made in China" in the field, devoting ourselves to the innovation in order to improve efficiency and save energy. At present, we have independent intellectual right and national patent technology for our products. In the creation of domestic mixing equipment, our company has been taking the leading position. "Made in China" has been the dream of several generations in the industrial field. Being the main force of the independent innovation, our company is responsible for making contributions to the development of Chinese industry and keeping innovating and moving forward to make more high quality products.
