JINHE High Effiency blending dosing system
- 30 Set / Sets per Month
- Shanghai Tianjin or Qingdao
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Ribbon | |
| Product Type | Detergent Powder | Application | Powder | |
| Additional Capabilities | Coating | Place of Origin | Henan, China | |
| Brand Name | JINHE | After-sales Service Provided | Engineers available to service machinery overseas |
wood bpx
Product Description
blending dosing system
Introduction
blending dosing system consists of U shape shell ,double ribbons and drive unit.
The exterior ribbon transfers raw material from the two ends to center while the interior ribbon moves
the material in opposite in the form of counter-current movement.
Ribbons can be changed into paddles,and chopper is optional for different materials.
The top cover can be concave for pressure application ,or full open way to allow for easy cleaning.
The advantages of blending dosing system
1.High Mixing Effect
2.Rapid Mixing Time
3.Large Loading Ratio
4.Wide Application
5.Wear-Resistence and Low Maintenence
Model Project | Total Volume (M³) | Loads coefficient | Electrical machiney power (KW) | Size(mm)× Max-diameter ×High | Equipment weight (kg) |
JHRB-0.15 | 0.15 | 0.4-0.8 | 3 | 1190×740×770 | 330 |
JHRB-0.3 | 0.3 | 0.4-0.8 | 4 | 2030×630×980 | 720 |
JHRB-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
JHRB-1 | 1 | 0.4-0.8 | 11 | 2800×920×1320 | 1700 |
JHRB-1.5 | 1.5 | 0.4-0.8 | 11 | 3180×1020×1550 | 1800 |
JHRB-2 | 2 | 0.4-0.8 | 15 | 3310×1120×1640 | 2100 |
JHRB-3 | 3 | 0.4-0.8 | 18.5 | 3750×1290×1820 | 3000 |
JHRB-4 | 4 | 0.4-0.8 | 22 | 4220×1400×1990 | 3980 |
JHRB-5 | 5 | 0.4-0.8 | 22 | 4220×1500×2100 | 4620 |
JHRB-6 | 6 | 0.4-0.8 | 30 | 4700×1610×2260 | 6180 |
JHRB-8 | 8 | 0.4-0.8 | 37 | 4420×2150×2470 | 8200 |
JHRB-10 | 10 | 0.4-0.8 | 45 | 5520×2960×2720 | 8920 |
JHRB-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9520 |
JHRB-15 | 15 | 0.4-0.8 | 55 | 5840×3540×2940 | 9950 |
Manufacturing Process
Applications
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing podwer mixer market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, providing best service,sureness and steadiness, devotion and dedication".Please feel free to contact us at any time.
Zhengzhou Jin Tai Metal Materials Co., Ltd. cleaves to the spirits of" Creat in China" in the field, devoting research to innovating in order to improve the efficiency and save more energy. At present we have the independent intellectual rights and national patent technology of our products .

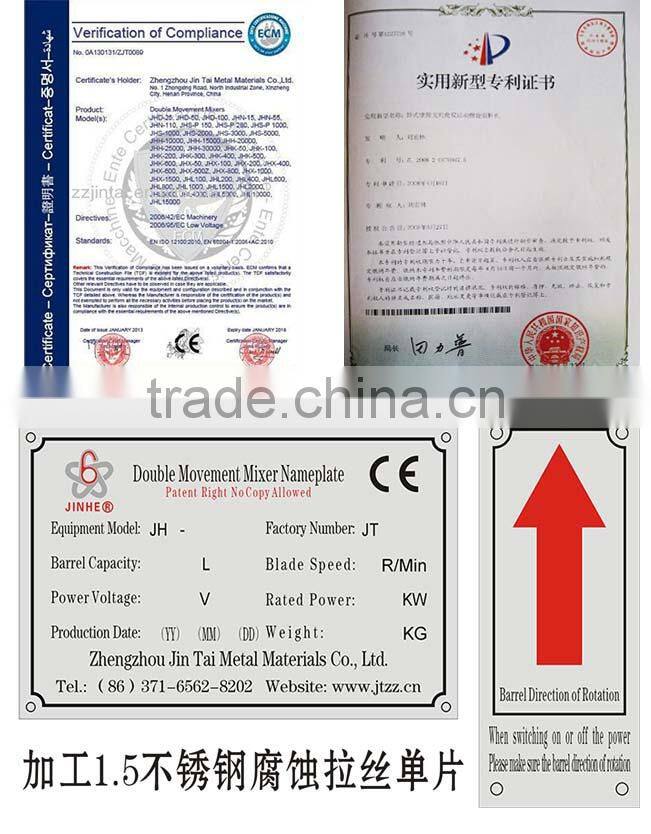

Certificates
Exihibition
1.Some remarkable questions in the process of use.
Because the Dry Powder Mixer Machine is electrical equipment, so the operator should pay attention to electricity safety.
2.How to maintain dry mixer?
1.)Ensure that the Dry Powder Mixer Machine and the surrounding environment clean.
2.)Regular checks of the various systems, such as tainted ash, gas leakage, oil spills and leakage phenomenon timely processing.
...
Company Profile
Zhengzhou Jin Tai Metal Materials Co., Ltd. was established in 2001. Our company is a professional mixer (also known as mixing machine) manufacturer. Our corporation has about 185 staff members, including 15 senior engineers. Our company integrates research and manufacture during our development. Our production department is located at No.1, Zhongxing Road, Xinzheng City and our headquarters is located at No.71, Weilai Road, Weilai Garden, Zhengzhou City, being close to the famous Zhengdong New District. For mixing equipment, most companies are still producing traditional equipment. Some equipment has not been changed for over 30 years. Over these years, our company has been sticking to the spirit of "Made in China" in the field, devoting ourselves to the innovation in order to improve efficiency and save energy. At present, we have independent intellectual right and national patent technology for our products. In the creation of domestic mixing equipment, our company has been taking the leading position. "Made in China" has been the dream of several generations in the industrial field. Being the main force of the independent innovation, our company is responsible for making contributions to the development of Chinese industry and keeping innovating and moving forward to make more high quality products.
