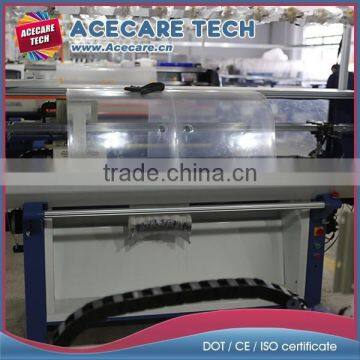

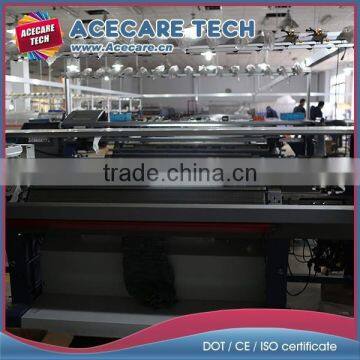

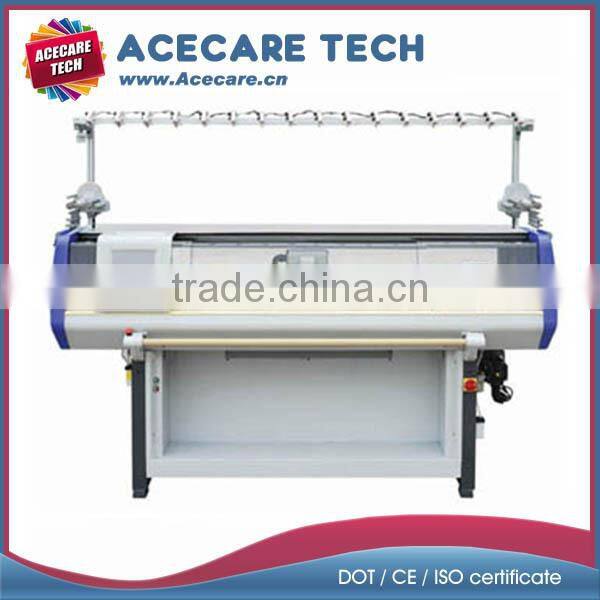

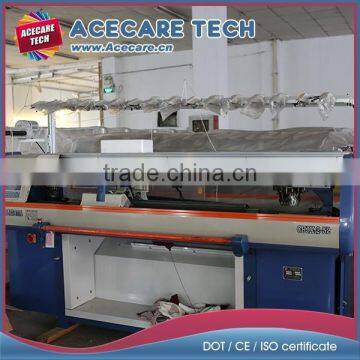

COMPUTERIZED VAMP MACHINE

FOB Price

US$ 16,000 - 20,000 / Unit

1 Unit(Min. Order)

Port Dalian

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Industrial Sewing Machine
Brand Name	Acecare Tech	Model Number	FFA-228XM FFA-236XM
Max. Sewing Speed	24 segments with the maximum velocity of 1.2m/s	Stitch Length	it may adopt the scissor clamp device and comb device.
Power	2000w	Overall Dimensions	28Inch
Feed Mechanism	Other	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

COMPUTERIZED VAMP MACHINE
FFA-228XM FFA-236XM

Main Technical Characteristics:
1,This series of types include single head double system and doule head double system with simple and concise appearance of machine.
2,The digitalized technology is adopted to realize the needle reversal, double stitchand knitting of flat knitting machine;moreover, it may adopt the scissor clamp device and backplane device.
3,The high-quanlity batching roller system, the soft upper roller traction which is specially designed, can ensure the posotion closes to the mouth if needle plate and improve the high quality batching control on the fabrics.
4,Positive yarn feeder with standard configuration has greatly reduced the resistance of yarn feeding.
5,Infrared batching detection system with standard configuration is bale to prevent the upper roller batching.
Knitting Function:
It is able to knit the basic knitting organizations (full needle,single side etc), multicolour random jacquard weave, applique(intarsia), twist knitting, pointelle and other weft knitting organizations. It is applicable for real silk, spun silk, synthetic, wool, acrylic, blended, yarn and other raw materials toknit the sweater and scarf, cap, trousers,socks and garment accessories. It is mainly used in professional 3D vamp production.

Product Specification:

Gauge:	14G
Knitting range	28,36 ,52Inch
Knitting speed	It adopts 24 segments with the maximum velocity of 1.2m/s. AC servo motor control is adopted and controlled by refined feedback control and DSP with high-speed computation capability, for the purpose of controlling the IGBT to generate precise current output.
Knitting system	single head double system
Knitting function	Needle reversal, double stitch, pointelle, intarsia, jacquard weave, front narrowing, back narrowing and other pattern knitting.
Needle bed shifting	AC servo motor control is adopted with the needle shifting range realizing 2 inches; in the meantime, it is of precise fine tuning functions.
Probe warning	Precise position probe warning.
Needle singal	Advanced encoder is used to observing the needle.
Needle reversal function	Triangle combined type design is adopted to realize the single/double synergy of needle reversal independently or simultaneously; or it is able to implement system knitting and realize high-srrective production.
Stitch density	It mainly adopts the stepper motor control and 24 segments density selection. Subdivision technology is adopted with its adjustable range is 0650 degree, which is able to control the size of cut piece accurately. It adopts closed-loop system to supervise the current position of motor.
Sinker system	Stepper motor control is able to adjust as per different fabrics, and finally realiz the multiple narrowing and widening effects. It is composed of left system and right system to adjust.
Batching system	Computer programs command, stepper motor control,24 segments tension selection with the adjustable range is 0-100 degree. It is able to select the moment of force to assist the roller for the purpose of providing effective tensile force for thick piece of clothes.
Colour changing system	28 groups of yarn mouth configurations are equipped with two sides of four guide rails for the purpose of shifting the yarn mouth at any position of needle bed( standard configuration 28)
Comb device	it may adopt the scissor clamp device and comb device.

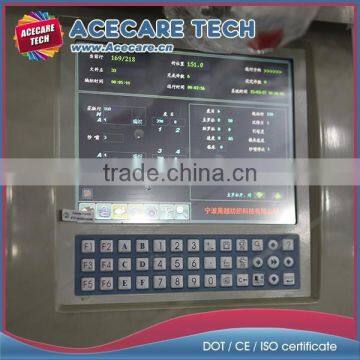

Control system	1.LCD industrial display is adopted in the screen, and USB and internet are used as transmission modes. Users can save a great deal of pattern documents and use from time to time in line with the production requirements. 2.Monitoring screen: it is able to display all knids of working parameters and the numerical value for the knitting lines. Meanwhile, it adjusts from time to time at the moment of machine running; therefore it can maximally operate and save time. 3.Platemaking system and control system are researched and developed independently; the software, as the free configuration, can be upgraded conveniently. 4.Multilingual operation versions: it supports Chinese, English and other languages; meanwhile it can set other required languages as per the customers' requirements.
Power	singlephase 220V/three phase 380V; it adopts the advanced CMOS technology to memorize and recover at the moment of power cut.

Machine Size:

Knitting range	Length	External Length	Width	External Width	Height	External Height	Net Weight
28Inch	2200	2600	820	1030	1800	2000	748KGS
