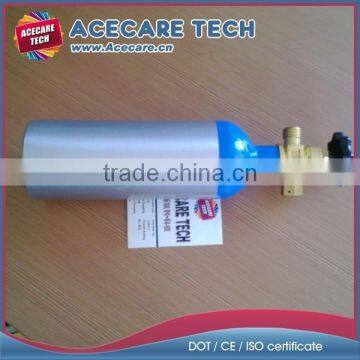

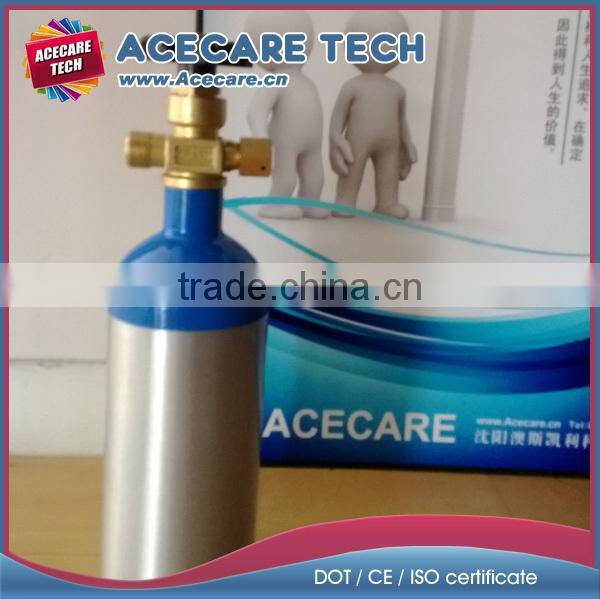

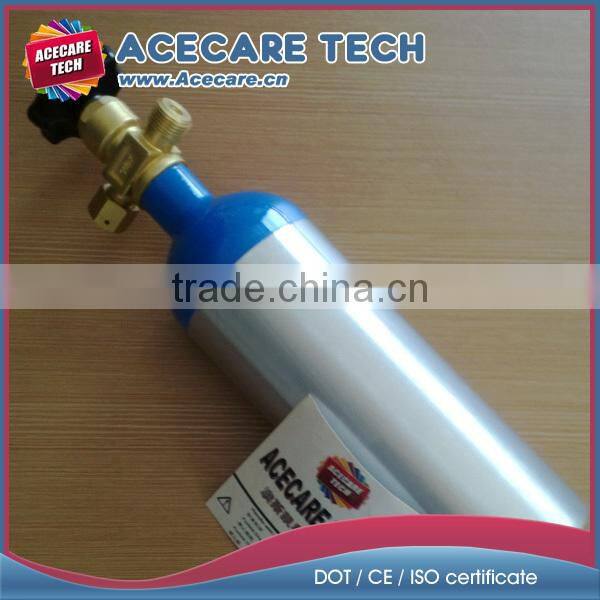

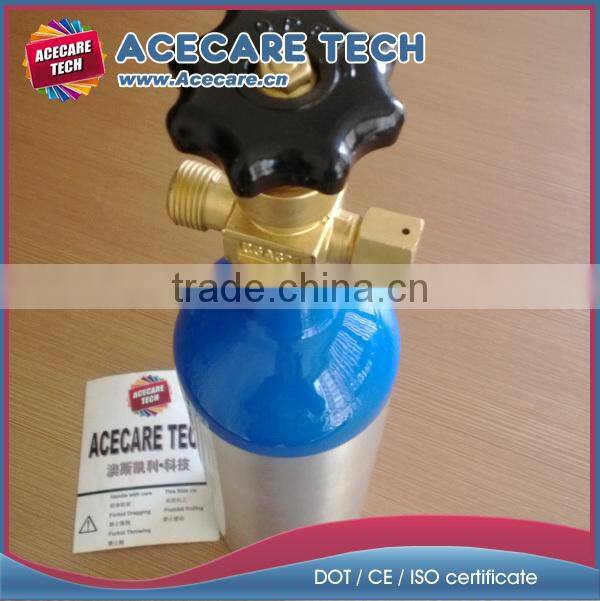

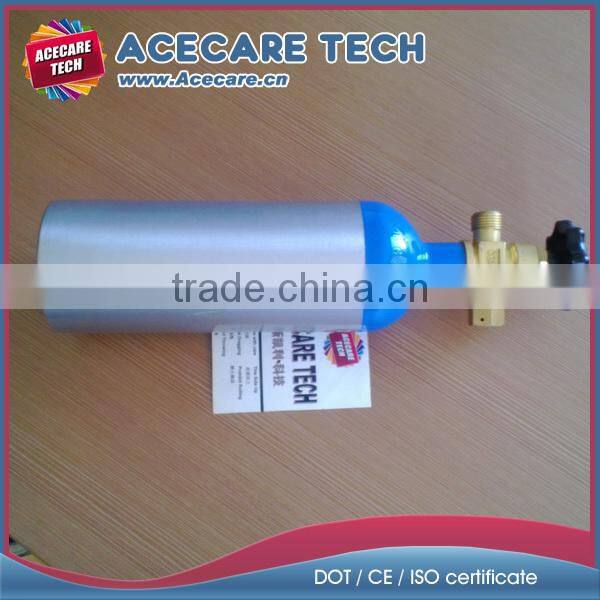

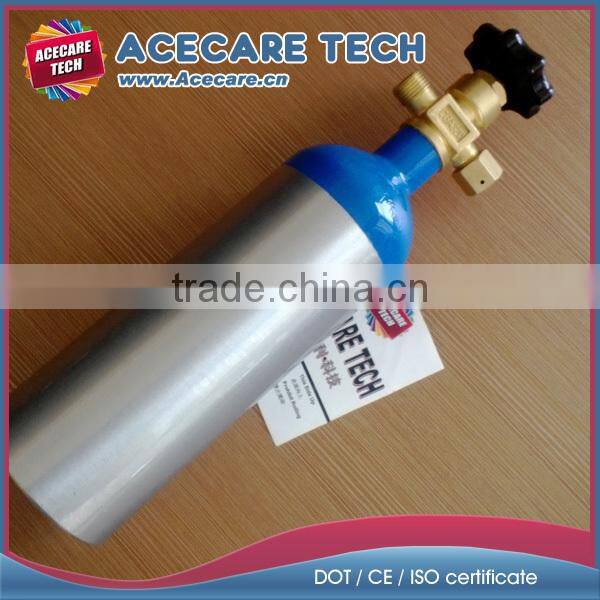

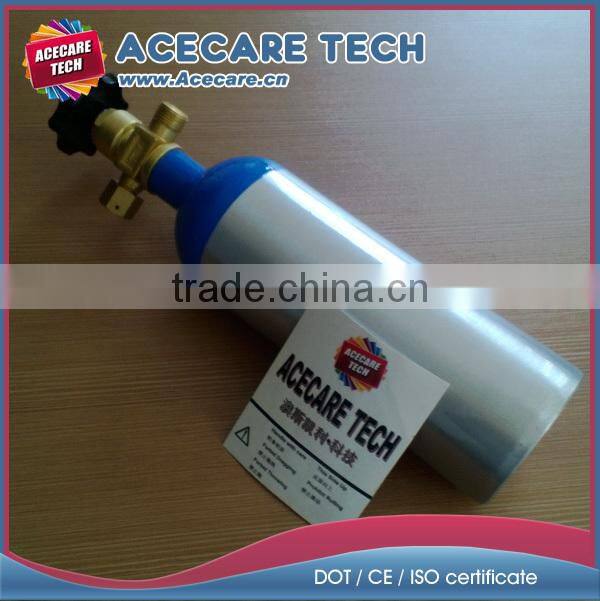

1L - 150bar aluminum gas tank,CO2 tank ,oxygen tank

FOB Price

USD $20 - $200 / Piece

100 Pieces(Min.Order)

Supply Ability 4200 Piece / Pieces per Month
Port Dalian Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Aluminium	Use	Other, Oxygen, Medical ,breathing
Pressure	High	Place of Origin	Liaoning, China
Brand Name	Acecare Tech	Model Number	LWH89-1.0-15

Product Description

Aluminum cylinder:

Acecare Tech produces aluminum bottle through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people.

Gas cylinder introduction:

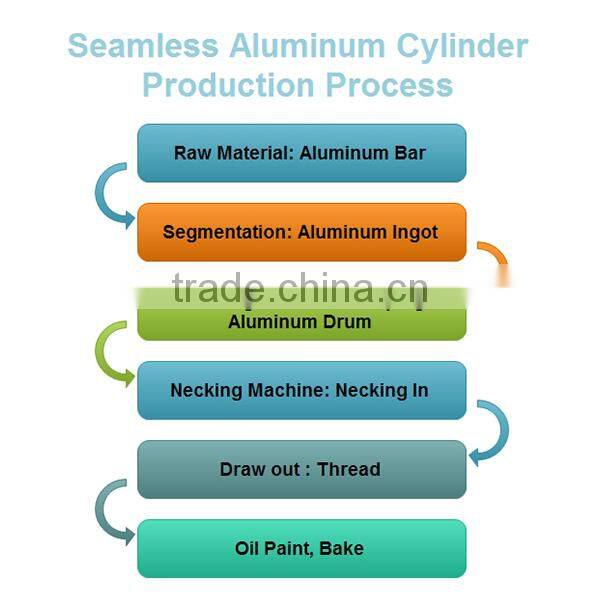

Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.

1. 15-year lifetime warranty;

2. 5-year requalification period; 15-year life;

3. Smooth, high quality, easy-care exterior finish;

Aluminium Alloy Cylinder
Part No.	Diameter	Length	Empty Weight	Water Capacity	Working Pressure	Wall Thickness
	(mm)	( mm)	(kg)	(liters)	(MPa)	(mm)
LWH59-0.37-20	59	238	0.5	0.37	20	4
LWH63.2-0.37-30	63.2	245	0.8	0.37	30	6.1
LWH59-0.5-20	59	303	0.65	0.5	20	4
LWH63.2-0.5-30	63.2	305	1.04	0.5	30	6.1
LWH89-1.0-15	89	266	1.1	1	15	4.5
LWH108-2.0-15	108	416	2.54	2	15	5.6
LWH120-3.2-15	120	420	3.1	3.2	15	6.2
LWH140-4.0-15	140	406	4.19	4	15	7.1
LWH140-6.0-15	140	583	5.7	6	15	7.1
LWH140-8.0-15	140	739	6.9	8	15	7.1
LWH159-10.0-15	159	905	9.25	10	15	7.1
LWH184-11.0-20	184	625	10.7	11	20	9
LWH184-12-20	185	707	14.5	12	20	10.3
LWH203-13-15	203	635	13.5	13	15	10.3
LWH203-20-15	203	900	18.1	20	15	10.3
LWH232-30.0-15	232	1020	28	30	15	12.6
LWH232-40-15	232	1320	38.8	40	15	11.7
LWH232-50.0-15	232	1590	39	50	15	12.6
