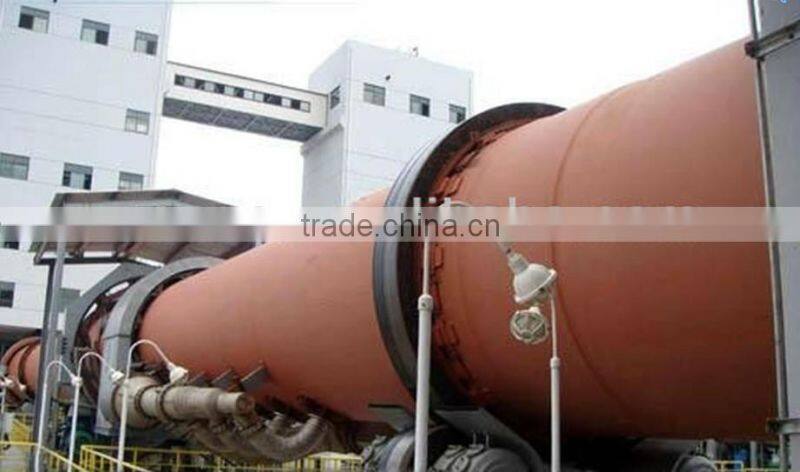

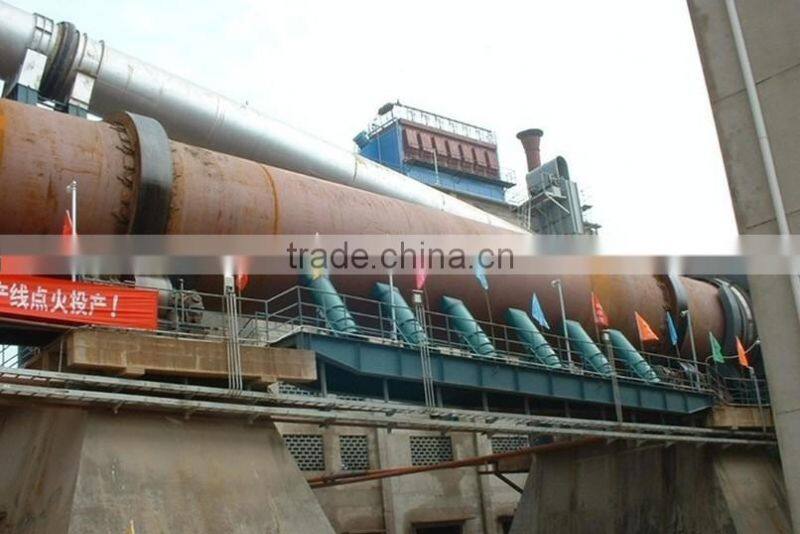

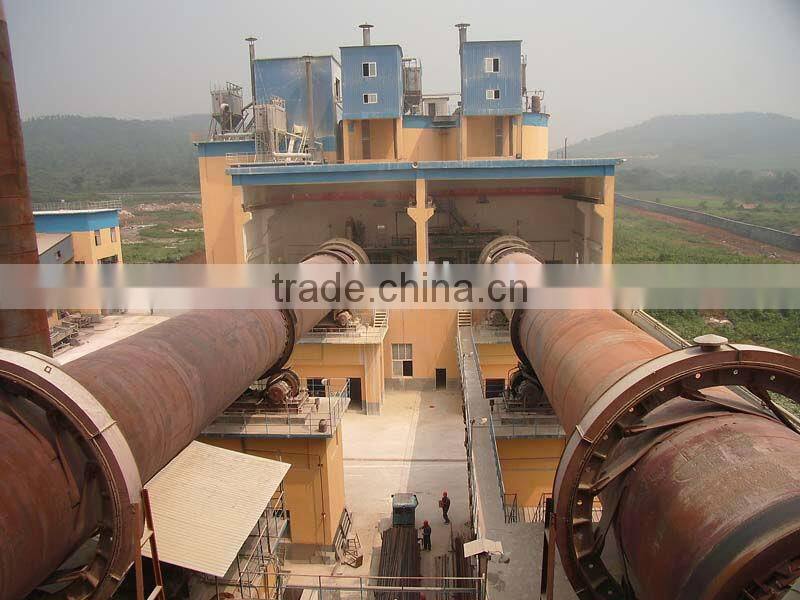

Wet Process Rotary Kiln

Specifications

Wet process rotary kiln | Wet process rotary kiln | Wet process rotary kiln

Introduction:

In wet process, first, make the raw material to be the slurry containing 32% ~ 40% water. Then put the sluury into the rotary kiln to calcine. During calcination, the water is evaporated. Because the slurry moves in the kiln, so the material is blended evenly, that’s why the prodction is in high quality.

Besides, in the whole process, less dust will be caused. Another advantage, water wil give wedge effection to material, so the wet process kiln works with high efficiency.

Features:

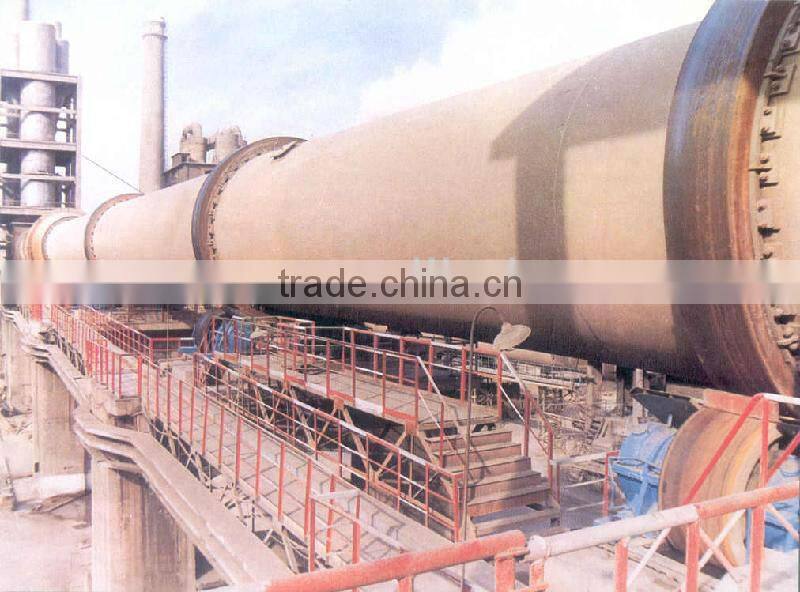

1) The rotary kiln is an inclined rotary cylinder, the raw material enter the cylinder through the high end of the machine,then move in with the movement of of the rotary kiln. Therefore, the rotary kiln is a conveying equipment.

2) Rotary kiln is a combustion device.

3) Rotary kiln has the function of heat exchange.

4) Rotary kiln has the chemical reaction function.

5) The rotary kiln has the function of degrading and re-using the waste.

The structure chracteristic of ourcompany is:

 This series of rotary kiln is the large-size advanced international calcining kiln & furnace which is developed by

our company and many scientific research institutes such as Beijing General Reserch Institute of Mining &

Metallurgy, Changsha Research Institute Of Mining & Metallurgy, Suzhou Sinoma Reserch Institute of Non-

metallic Mining Industry, etc. Compared with the rotary kiln with the same specification made by the traditional

technology, this series of torary kiln can make the production capacity increase by 30%, make the heat

consumption reduce by 40% and make the discharged flue gas temperature<250 °C , so it is convenient for

collecting dust and meeting the modern environment protection needs about energy saving and consumption

reducing. This rotary kiln is widely used for extracting nickel from laterite,  calcining the activated limestone,

oxidized pellet, magnesium oxide, aluminum oxide, titanium dioxide, etc.

 1. The rotary kiln shell design fully take into consideration of the corner at shell flexible supporting to extend

the lifetime of refractory bricks and castings.

2. Adopt supporing roller bearing with big diameter and small ratio between length and diameter to improve

the reliability. The bearing is automatic self-sligning bearing.

3. The better sealing effect of new type open gear hood sealing type.

4. The spring lamination overlying type lexible sealing, double layer spring lamination sealing increase the

heat insulation layer to improve the reliability and lifetime.

Parameters:

1 Specification: φ3×88m

2 Capacity: 384t/d (lime)

3 Slope of the kiln shell: 3.5%

4 Rotating speed of kiln (main driving): 0-1.74r/min

                   (Auxiliary driving): 0.054r/min (3.24r/h)

5 NO. of supporters: 5

6 Sealing type: sheet steel seal of kiln hood

7 Cooling type of kiln hood: air cooling

8 Driving type: Single driving

9 Type of thrust roller: hydraulic thrust roller

10 Cooling water consumption of each set of thrust roller: 2.5m³/h

11

12

13 Total weight (excluding kiln hood): 390t

             Weight of discharging kiln hood: 12.5t
