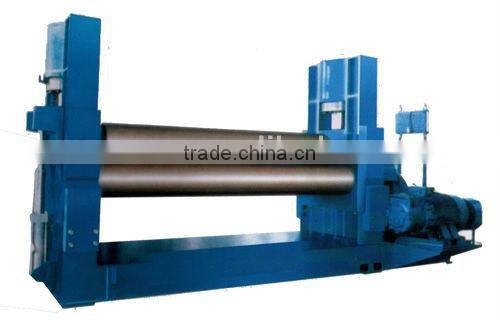

3 Roller Hydraulic Symmetrical Three-roller Plate Rolling Machine

FOB Price

US$ 1,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	WENAO	Model Number	W11Y-40X2500
Machine Type	Roll Forming Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Other, Hydraulic, 37kw
Automation	Automatic	Extra Services	Machining
Certification	Other, ISO 9001:2000 CE	After-sales Service Provided	Engineers available to service machinery overseas

3 Roller hydraulic symmetrical rolling machine
Cone device
Up driver roller
Pre-bending function
ISO&CE,compact structure

Specification	Max thickness of coiled plate	Max width of coiled plate	Yielding limit of sheet metal	Coiling speed	Min full loading diameter of coiled plate	Diameter of top shaft	Diameter of Bottom shaft	Central distance between bottom shafts	Motor power	Hydraulic power
Specification	mm	mm	mm	m/min	mm	mm	mm	mm	KW	KW
W11Y-25*2500	25	2500	245	4	1200	370	300	480	22	7.5
W11Y-25*3000	25	3000	245	4	1200	430	370	550	30	11
W11Y-30*2000	30	2000	245	4	1200	360	290	480	22	7.5
W11Y-30*2500	30	2500	245	4	1200	420	360	550	30	11
W11Y-30*3000	30	3000	245	4	1200	450	390	600	30	11
W11Y-40*2500	40	2500	245	3.5	1400	500	400	600	37	15
W11Y-40*3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11Y-50*3000	50	3000	245	3.5	2000	580	480	750	55	22
W11Y-60*3000	60	3000	245	3.5	2400	660	560	800	75	30
W11Y-70*3000	70	3000	245	3.5	2800	710	620	850	90	37
W11Y-80*3000	80	3000	245	3.5	3200	770	680	900	90	37
W11Y-90*3000	90	3000	245	3.5	3600	820	730	950	110	45
W11Y-100*3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11Y-110*3000	110	3000	245	3.5	4400	900	810	1080	132	55
W11Y-120*3000	120	3000	245	3.5	4800	950	860	1160	132	55
