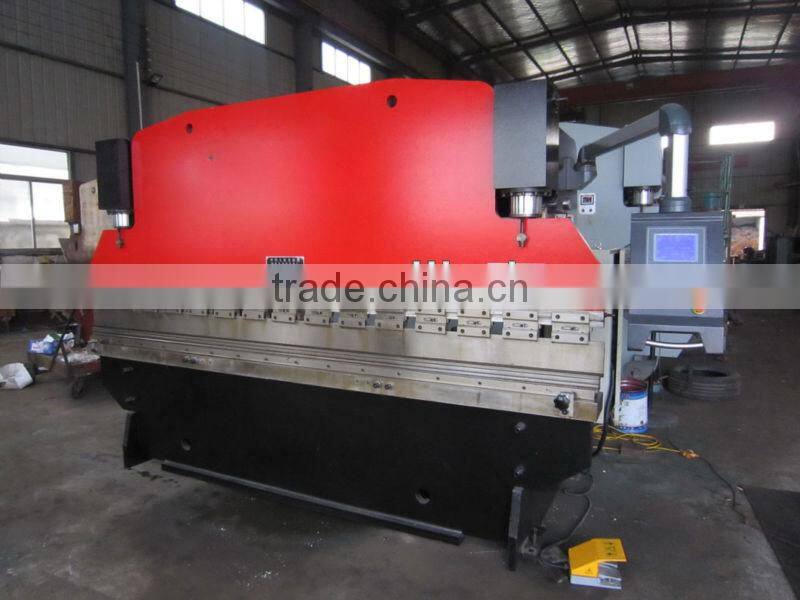

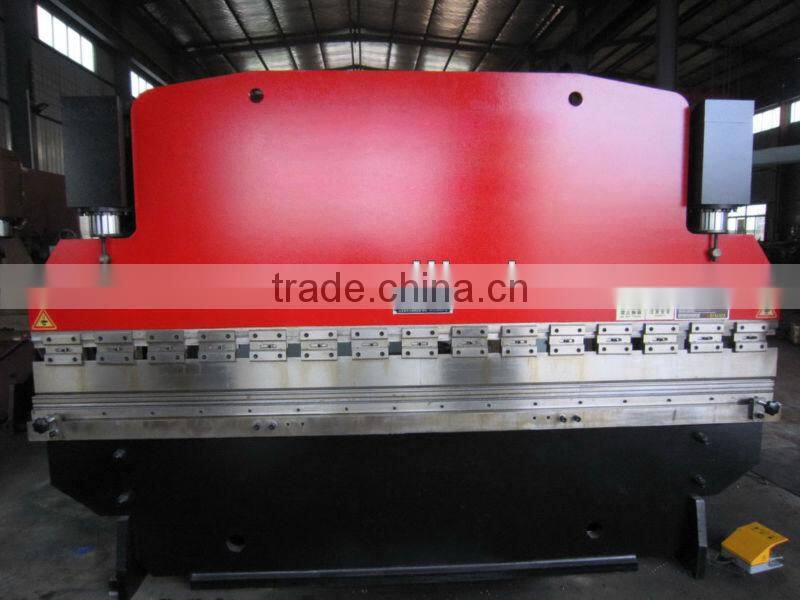

CNC Hydraulic Press Brake, Bending Press in China

New China supplier of CNC hydraulic swing beam plate shearing machine

Hydraulic system:

-A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake.
-Adopt Bosch electrolyte servo system (from Germany)

Mechanical system:
- Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table
- Adopt the working table compensation structure.
- The CNC servo motor of the back gauge gives a high positioning accuracy.

Main features:

Steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity

1.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision

2. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display

3.Travel limit protection, full machine guarding with safety interlocker

4.Two cylinders controlling beams vertical moving

5.Mechanical torsion synchronization

6.Integration hydraulic system

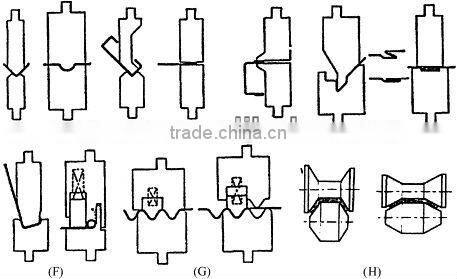

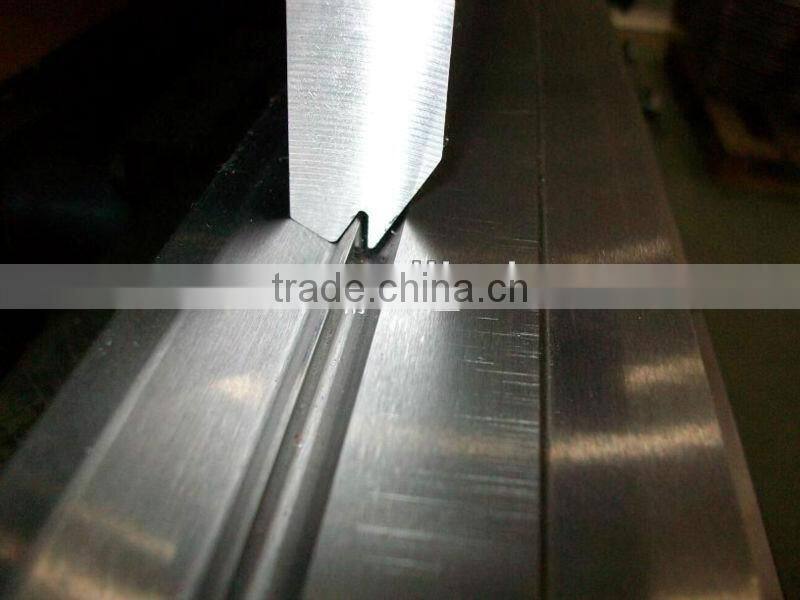

7.Standard punches and dies

8.Hanging arm control panel

9.Foot pedal with emergency stop

Our Advantage

1.This press brake bending machine adopts all-steel welded structure with high machine strength and good rigidity.

2.The press brake bending machine makes use of block structure ensuring reliable and stable operation.

3.Hydraulic upper transmission is stable and reliable. The oil cylinder placed on the slider can directly drive the slider to work.

4.The press brake bending machine features electric adjustment of stroke of upper slider, manual fine tuning and digital display.

5.The upper die of the press brake bending machine is equipped with deflection compensating mechanism, which can ensure high bending precision.

6.Mechanical stop and torsion axis are synchronized with high accuracy.

1). Quality assurance system

Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.

2). Quality assurance procedure for important out-source parts.

a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.

b. After evaluation, select qualified suppliers as business partners.

c. Purchasing according to plan, purchase contract, quality requirement, technical standard and inspection standard.

d. Receiving inspection on site either in supplier or our company with related technicians.

METAL BENDING TOOLS MACHINE TECHNICAL SERVICE &. OPERATOR TRAINNING

1). Design examine

When designing and manufacturing the machines, manufacturer should be as per ISO9001 standard strictly to assure the system be performed effectively. According to contract requirement, to supply quality eligible, meet the professional design standard.

2). Operator training

During the installing and commissioning period, supplier arrange time to training buyer’s operator including operation, maintenance etc. supplier should solve the buyer technical questions about operation, maintenance and technics etc. Operator trained by supplier should do his commitment independently.

METAL BENDING TOOLS MACHINE MACHINE QUALITY

 Machine design and manufacture performs GB/T-14349 and comply with the requirement of quality, specification and characters herein this technical regulation.

Guarantee period start from the day the machine acceptance report signing. Period would be one year.

Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting.

METAL BENDING TOOLS MACHINE INSTALLATION, SETTING &. AFTER-SALE-SERVICE

1). Installation and setting;

Manufacturer is in charge of the machines installation &. commissioning. User is request for in charge of the round tickets &.boarding &. necessary salary of the engineers.

2). After-sale-service;

Manufacturer will in charge of the technical service for the whole using life of the machine.
