Stone Crusher Machine/High-quality Crusher
- Nantong/Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Impact Crusher | |
| Application | crush, mining, construction, smelt, railway, highway, railway | Motor Type | AC Motor | |
| Power(W) | 110-132kw | Capacity(t/h) | 70-120 | |
| Place of Origin | Jiangsu, China | Brand Name | Wenao | |
| Model Number | PF1210 | Dimension(L*W*H) | 2690*2338*2890 mm | |
| Weight | 15T, 15t | Certification | ISO9001:2000 CE | |
| Warranty | 12 month | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,Good capacity2,Different kinds of specifications
3,Widely used

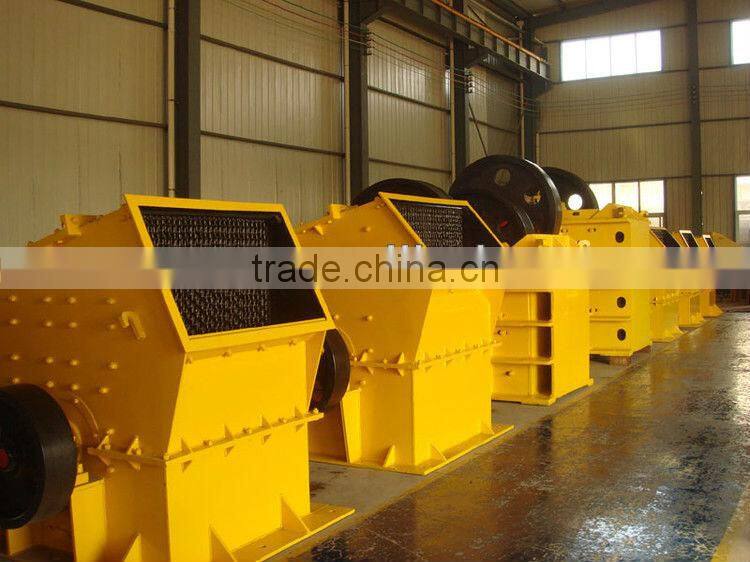

stone crusher machine/ PF/PFV Series Impact Crusher
Main Descriptions :
PFV Series Impact Crusher is mainly applied in secondary crushing and capable of crushing the
material with compressive resistance not more than 320 Mpa which is suitable to produce
aggregates for high class road, hydroelectric power, construction industry.The machine can produce
excellent shape of product and mainly the shape of product is cubic with small fraction of elongated
flak particle shape, suitable for aggregate shaping. And the machine is equipment with new type
wear resisting below bar and liner plate which has longer life expectancy.
The Technical Parameters of PF/PFV Series Impact Crusher
Model | Rotor Spec(mm) | Feed Opening Size(mm) | Max Feed size(mm) | Capacity (t/h) | Motor Power(kw) | Overall Dimensions L×W×H (mm) | Weight(t) | ||
PF1007 | 1000×700 | 400×730 | 300 | 30-50 | 37-55 | 2400×1558×2660 | 9.5 | ||
PF1010 | 1000×1050 | 400×1080 | 350 | 50-80 | 55-75 | 2400×2250×2620 | 12.2 | ||
PF1210 | 1250×1050 | 400×1080 | 350 | 70-120 | 110-132 | 2690×2338×2890 | 14.9 | ||
PF1214 | 1250×1400 | 400×1430 | 350 | 100-180 | 132-160 | 2690×2688×2890 | 18.6 | ||
PF1315 | 1320×1500 | 860×1520 | 500 | 160-250 | 180-260 | 3096×3273×2667 | 19.3 | ||
PF1415 | 1450×1520 | 1145×1520 | 950 | 220-450 | 220-315 | 3745×3022×3519 | 27 | ||
PF1520 | 1520×2000 | 830×2050 | 700 | 300-550 | 315-440 | 3581×3560×3265 | 38.7 | ||
PF1818 | 1800×1800 | 1600×1850 | 1000 | 600-850 | 650-900 | 4180×4200×4900 | 75 | ||
