Home > Products > Energy Machine > Coal ball pressing machine coal ball forming machine
Coal ball pressing machine coal ball forming machine
USD $2,000 - $5,000
/ Set
1 Set(Min.Order)
- Qingdao
- Credit Card
You May Like
-
Hot sale shisha charcoal press machine charcoal briquette making machine
-
New Style Fish Shape with Open Mouth Taiyaki Maker Machine for Korea Ice Cream Taiyaki
-
Custom Iron Plate Waffle Maker
-
Hot sale!Waffle maker/waffle machine with high quality
-
Automatic Jowar Roti Making Machine
-
Electric Big Bomb Takoyaki Maker Machine
Product Details
| Condition | New | Production Capacity | 4-6T/H | |
| Motor Type | AC Motor | Power(W) | 7.5KW | |
| Place of Origin | Henan, China | Brand Name | ALPHA | |
| Model Number | AE-CB 290 | Dimension(L*W*H) | 1900*1800*2000mm | |
| Certification | CE ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

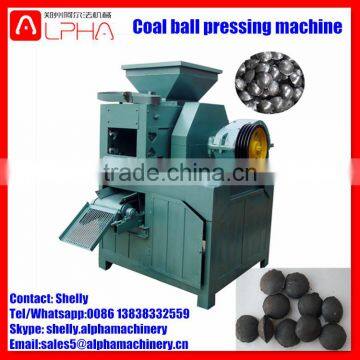

Coal ball pressing machine coal ball forming machine
Product Description
1. Brief introduction of coal ball pressing machine
Coal ball press machine is the equipment to press powder materials into ball shape. The design of the product is mainly used for pressing dry power into pellet material in the magnesium-making
. After many years of industrial use and improvement, compared to other similar products, the series of ball press machine have many obvious advantages, such as high pellet rate, low consumed power, compact structure, easy maintenance and debugging, etc; Thus, it is a kind of key ideal equipment for magnesium-making technology by pidgeon process.2. Models of coal ball pressing machine
Model | AF-CB 290 | AF-CB 360 | AF-CB 450 | AF-CB 500 | AF-CB 650 | Remark | |
| Capacity(t/h) | 1-3 | 3-5 | 6 | 8-10 | 15 | ||
| Roller Width(mm) | 200 | 250 | 250 | 300 | 330 | 65Mn | |
| Roller Diameter(mm) | 288 | 360 | 400 | 500 | 650 | ||
| Power(KW) | 5.5 | 7.5 | 11-15 | 22-30 | 45-55 | According to material | |
| Spindle Speed(rpm) | 18 | 15 | 13 | 13 | 13 | ||
| Reducer | ZQ350 | ZQ350 | ZQ400 | ZQ500 | ZQ750 | ||
| ZQ400 | ZQ400 | ZQ500 | ZQ650 | ZQ850 | |||
| Pressure Form | Tapered Iron Constant Pressure | Tapered Iron Constant Pressure | Tapered Iron Constant Pressure | Tapered Iron Constant Pressure | Tapered Iron Constant Pressure | Optional | |
| Axle Seat Drawbar | Axle Seat Drawbar | ||||||
| Roller Material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | Casting | Optional |
| 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | 9Cr2Mo | Casting | ||
| Structural Type | Double Shaft Single Pressure | Double Shaft Single Pressure | Double Shaft Single Pressure | Double Shaft Single Pressure | Double Shaft Single Pressure | Optional | |
| Four Shaft Double Pressure | Four Shaft Double Pressure | Four Shaft Double Pressure | Four Shaft Double Pressure | Four Shaft Double Pressure | |||
| Main Shaft | Φ95mm | Φ110mm | Φ135mm | Φ165mm | Φ200mm | ||
| 45#Steel | 45#Steel | Forging | Forging | Forging | |||
| Ball Size | Defined by users | Defined by users | Defined by users | Defined by users | Defined by users | Commonly used 30-60mm | |
3. Features of coal ball pressing machine
High efficiency and reasonable price
High productivity
Easy to operate and no flying dust
Low cost but high quality and efficiency
Long service life
Environmental friendly
Easy to repair and debugging
Packaging & Shipping
1.We always use standard export packing, carton box. But for our customer, Alpha Machine give a free Wooden Package to protect your machines.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
