10 Ton Diesel Counterbalanced Forklift Truck

FOB Price

US$ 60,000 - 90,000 / Set

1 Set(Min. Order)

Port XIAMEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	HT	Model Number	HT 890 Forklift truck
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	9000kg	Max. Lifting Height	3000mm
Fork Length	1500mm
Fork Width	180mm	Overall Dimensions	399021002480mm

Product Description

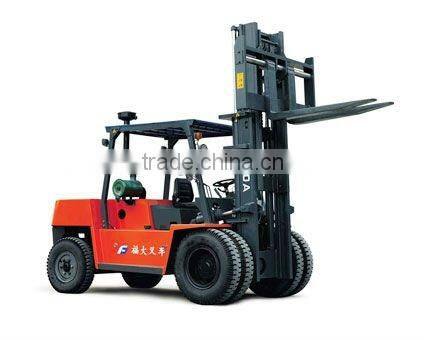

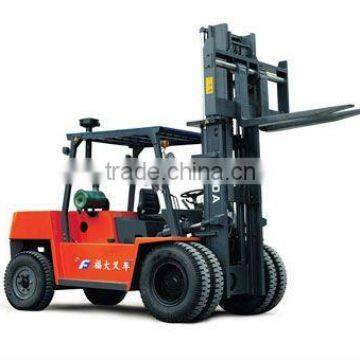

10 Ton Diesel Counterbalanced forklift truck

SCIENTIFIC ERGONOMIC APPLICATION
We use scientific ergonomic method to design this Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.

STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our products. All these measures efficiently protect the user and improve the environment.

RELIABLE SPECIAD DESIGNED INSTRUMENT
Low power consumption and long-life. It also works in wide temperature range(-40°C~+80°C) and with high interference resistant capability.

POWERFUL ENGINE AND TRANSIMISSION SYSTEM

Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.

This series forklift trucks are widely used in stations, ports, airports, warehouse and other places for loading, unloading and short distance transporting of the packaged goods.

Speciflcation
General
	Manufacture						FDM890
	Power type
	Rated loading capacity					Kg	9000
	Load center					mm	600
Dimensions	Lift height					mm	3000
	Free lift height					mm	195
	Fork size					mm	1500×180×90
	Fork distance			Min./Max.		mm	400/1480
	Mast tilt anglc			Front/After		deg	8/12
	Front overhang					mm	690
	Dimensions	Overall length			mm		3990
		Overall width			mm		2100
		Mast lowered height			mm		2550
		Mast extended height			mm		4380
		Overhead guard height			mm		2480
	Turning radius					mm	4000
	Min.right angle aisle width					mm	3300
Performance	No load/Full load	Traveling Speed			km/h		25/24
		Lifting speed			mm/sec		330/280
	Max.grade ability					%	20
	Max. Pull force(full load)					KN	76
	Self weight					kg	11600
Chassis	Tread	Front					9.00-20-14PR
		Rear					9.00-16-14PR
	Tread width	Front			mm		1490
		Rear			mm		1520
	Wheelbase					mm	2700
	Min.Ground clearance (No load/Full load )		Mast		mm		220/210
			Frame		mm		235/230
Drive unit&control	Battery					V/AH	24/100×2
	Engine	Manufacture					YC6108
		Manufacture					YUCHAI
		Rated power			Kw/rpm		92/2300
		Rated torque			N.m/rpm		446/1500
		NO.of cylinder					6
		Bore×Stroke			mm		108×125
		Displace ment			L		6.871
		Fule tank capacity			L		125
	Transmissions	Type			L		Hydraulic
		Shift Front/rear					2/1
