Home > Products > Stove > New design low consumption Coal Gas Producer,Coal Gasifier Porfessional Supplier

New design low consumption Coal Gas Producer,Coal Gasifier Porfessional Supplier

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	shuliy	Model Number	SL series
Usage	Hydrogen	Production Rate	high
Voltage	380v	Power(W)	6-27 KW
Certification	ISO	Warranty	for a whole year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Quick Details

Condition:	New,new	Place of Origin:	Henan China (Mainland)	Brand Name:	SHULIY
Model Number:	SL series	Usage:	heating	Production Rate:	6-27 KW
Certification:	CE, ISO9001:2008,SGS	Warranty:	12 months	After-sales Service Provided:	Overseas service center available
Type:	one stage coal gasifier	Color:	Customized	Certificate:	ISO9001:2008 & CE
Warrant period:	12 months	Efficiency:	high	Quick wear parts:	we offer
Service time:	whole using life	Brand:	SHULIY

Packaging & Delivery

Packaging Detail:	1.Naked 2.Packed in wooden box 3.to requirement
Delivery Detail:	10-30 days after receiving prepayment

Specifications

One stage coal gasifier
Energy saving, high efficiency
Stable performance
12 months warranty
ISO9001:2008 & CE approved

Famous energy-saving one stage coal gasifier in fair price

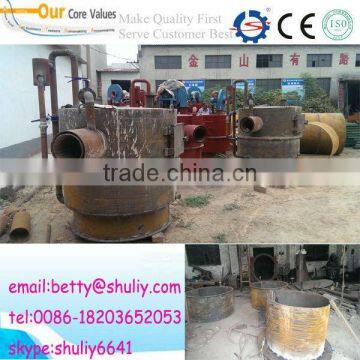

Usaging of one stage coal gasifier

The one stage coal gasifier products designed and made by our company takes air and steam as gas agent, it is an advanced equipment for producing gas, It is suitable for gasifying charred coal, coke. And it is widely used in heating furnace in machinery, metallurgy, chemical engineering, glass, building materials, light industry, food and textile.

Advantages of coal gasifier

Firstly, It can raise the utilization of heat and coal can be fully burnt, so the energy comsumption can be reduced. Compared with burning the coal directly, It can save 20%-40% energy.

Secondly, By using this equipment, the temperature can reach 1500°C in the connected kiln or furnace and the temperature difference is low.

Thirdly, It is conforming to the industrial furnace emission standard GB9079.88. Slag is discharged in wet form which is free from pollution and social benefits.

Fourthly, It can greatly improve the working environment, reduce the labour intensity, so it has been well-received since it was invented.

Main technical parameter of one stage coal gasifier

Model		SL0.8	SL1.0	SL1.2	SL1.5	SL1.6	SL1.8	SL2.0	SL2.4	SL2.6	SL3.0
Name	Unit	Producer furnace specification
Chamber diameter	mm	800	1000	1200	1500	1600	1800	2000	2400	2600	3000
Heating active surface	m2	0.5	0.785	1.13	1.77	2.01	2.54	3.14	4.52	5.31	7.07
Fuel	Weak coherent gas carbon, anthracite, burnt carbon
Fuel granularity	mm	25-80
Fuel consumption	kg/h	40-100	70-140	120-190	160-350	350-460	500-600	500-720	700-1040	850-1200	1700-2000
Gas agent	Air, steam
Gas output	Nm3/h	140-350	245-490	420-670	560-1200	1200-1600	1500-2100	1750-2500	2500-3600	3000-4300	6000-7000
Coal gas calorific value	Kj/Nm3	5020-5670				5020-6000
Water jacket heating area	m2	4.02	5.02	6.78	10.37	11.06	12.44	17.58	21.87	23.69	30.16
Steam output	kg/h	60	80	130	200	220	260	350	420	600	840
Temperature of coal gas outlet	°C	400-500 (Plants related with the coal)					400-500 (Plants related with the coal)
Pressure of coal gas outlet	Pa	<1000					<980-1470			<1470-1960
Diameter of coal gas exportation	mm	219	325	325	426	426	529	630	720	820	1020
Air pressure	Pa	<3000					<4000
Temperature of saturated air	°C	50-60					50-65
Rotational speed of disc	r/h	0.177-1.77
Total weight of equipments	T	3.5	4.5	5	7.5	10	20	23.4	29.8	32	37.6
Power of complete equipments	KW	<6	<6	<6	<7	<8	<10	<14	<20	<20	<27
Diameter of tuyere	mm	108	108	140	165	219	325	325	426	426	426
