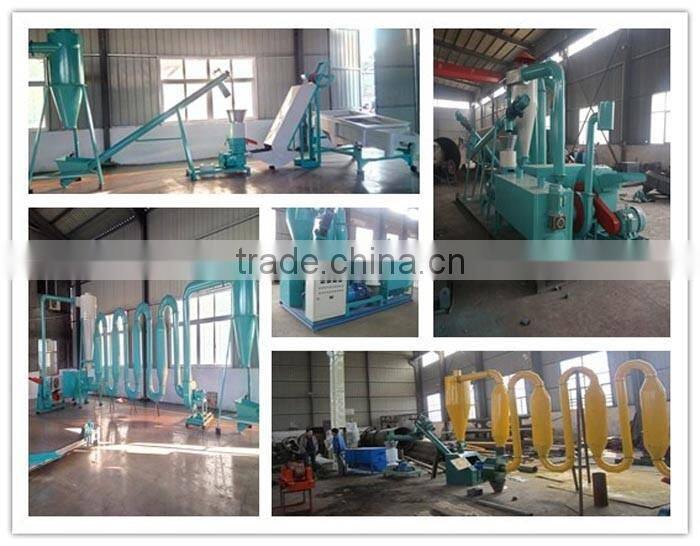

Multifunctional Straw Hay/Cotton Straw Pellet Production Line

Straw pellet production line also known as portable pellet plant, is used to process wood chips, tree branches, sawdust and other agricultural biomass materials into biomass pellets to satisfy the use of heating source or animal bedding. It is featured by low cost, simple operation, low energy consumption and flexible working places, which is popular.

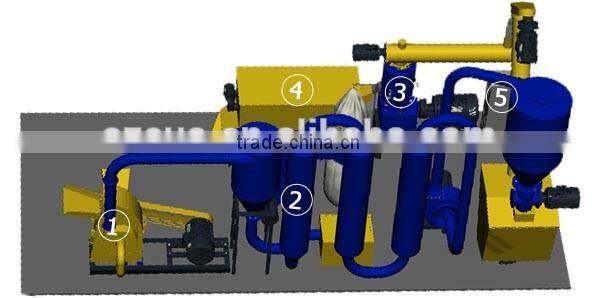

Parameter of Straw Pellet Production Line
Item	Product Name	Power
1	Hammer Mill	15KW
2	Dryer	5.5KW
23	Wood Pellet Mill	18.5KW
4	Cooler & Screener	1.5+3KW
5	Control Cabinet
Capacity		200-300kg/h
Installation size		3500x2000x2500mm (Exclusive packing machine)
Weight		4000kg

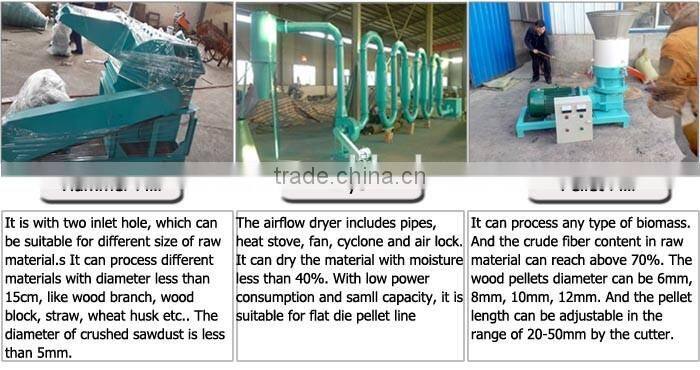

Main Machine Of Straw Pellet Production Line

Various materials can be mixed together to make biomass pellets such as agricultural / harvest residues like Empty Fruit Bunches (EFB), Oil Palm Fronds (OPF), Rice husk, Straws, Bagasse.

 The pellet diameter can be: 6mm, 8mm, 10mm, 12mm

The pellet length: 20-50mm adjustable

The pellet application: for boiler, power plant, pellet stove, pellet burner, animal bedding etc..

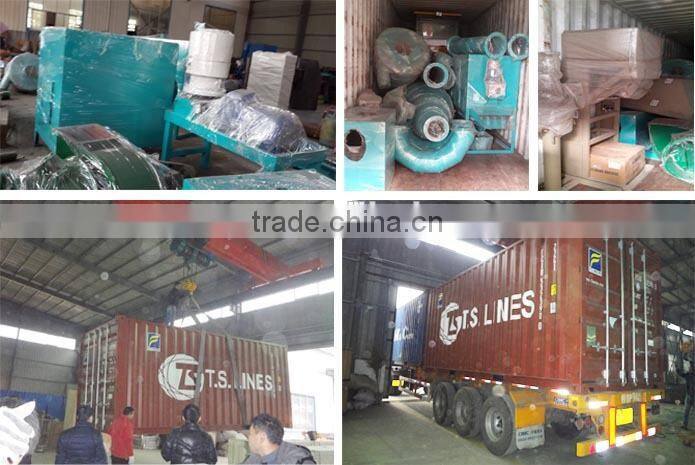

Straw pellet production line is shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.

Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.

We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.

1. What is the capacity of straw pellet production line?

We have different capacity of flat die wood pellet machine: 100kg-1000kg per hour.

2. Do you supply the whole production line? And the capacity of the production line?

Yes, we can supply the production line. The capacity of the production line can be ranged from 100-150kg/h, 200-300kg/h,400-600kg/h, 800-1000kg/h.

3. What is the material of the flat die mould and roller?

They use alloy steel material because of its high hardness and long using life to make wood pellets.

4. Can you modify the voltage to meets our requirements?

Yes, we can modify the voltage, but the voltage must be 3 phase.

5. Are you trading company or factory?

We are both trading company and manufacturer.
