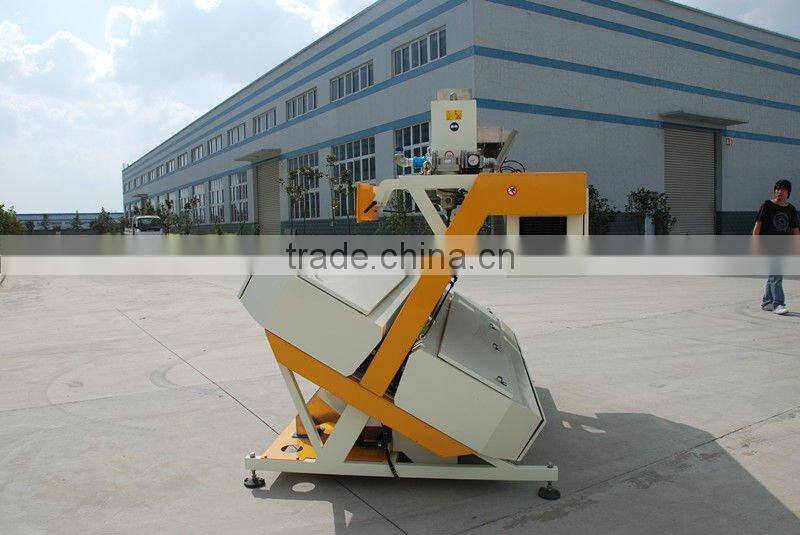

Plastic Granules Color Sorter(zk5)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | Clean international Co., Ltd. | |
| Model Number | (CCD)ZK5 | Type | Grain Processing Equipment |
Product Description
Specifications
Colorized Sorter | Used for separating different grains like rice and millet on the basis of color.4 models and 192channels.
Model | CCD Rice Series | |||
AMD-ZK3 | AMD-ZK4 | AMD-ZK5 | ||
No. of Channels | 192 (128/64)* | 256 (192/64)* | 320 (256/64)* | |
Output (t/h) | 2-4 | 3-6 | 4-8 | |
Sorting Accuracy (%) | >99.99 | >99.99 | >99.99 | |
Optimal Carryover (bad: good) | ≥8:1 | ≥8:1 | ≥8:1 | |
Voltage | AC220V 50HZ | |||
Power (KW) | 1.0-2.7 | 1.2-3 | 1.5-3.5 | |
Air Pressure (Mpa) | ≥0.6 | |||
Air consumption (L/min) | 1000-1800 | 1200-2500 | 1500-3000 | |
Weight (Kg) | 635 | 750 | 950 | |
Dimensions (mm) | Length | 1506 | 1808 | 2110 |
Width | 1550 | 1550 | 1550 | |
Height | 1840 | 1840 | 1840 | |
Note: Color selection parameter in fixing a watch takes being labeled with one hard rice as example without exception. TheConcrete index will be different to some extent because contents different. | ||||
1.2048 pixel high-speed line scan CCD and photo processing technology.
2. Field bus structure attached with high consistency of signal, stability and simplified outline.
3. Capable of detecting minimum area 0.08mm² in order to clearly identify and seperate different granule.
4. flat and groove slide path make it much easier to recognize and sort according to flexible capacity.
