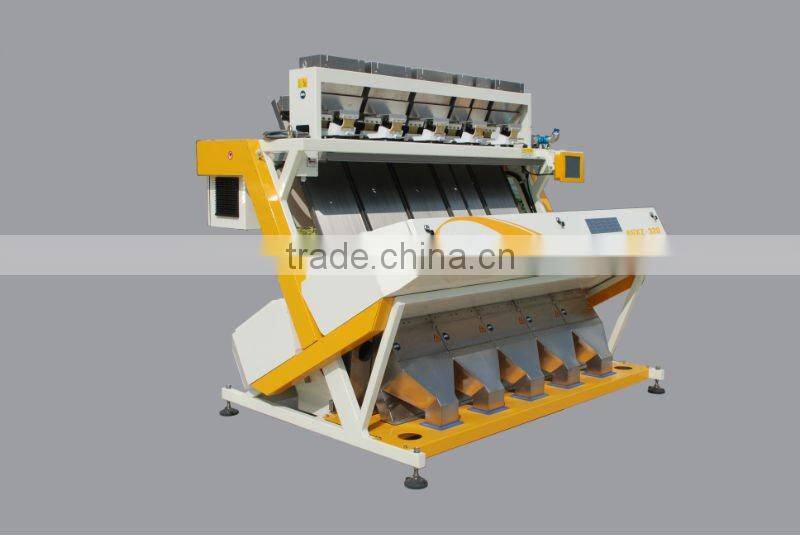

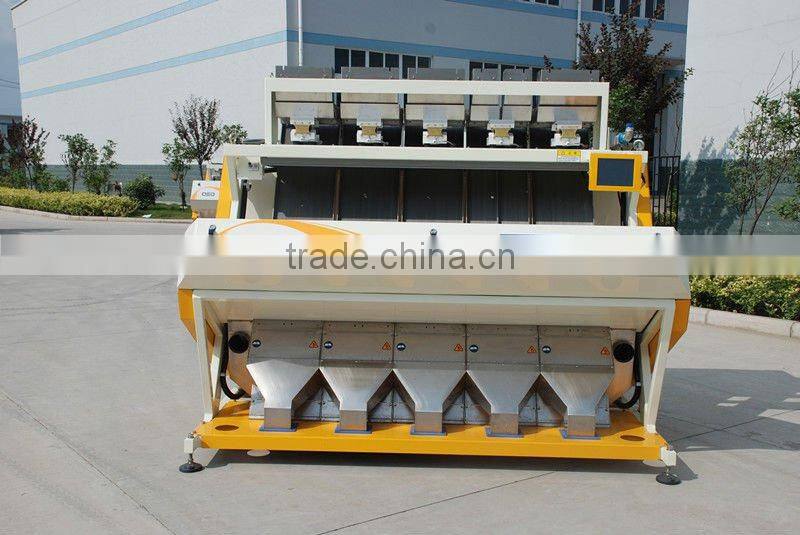

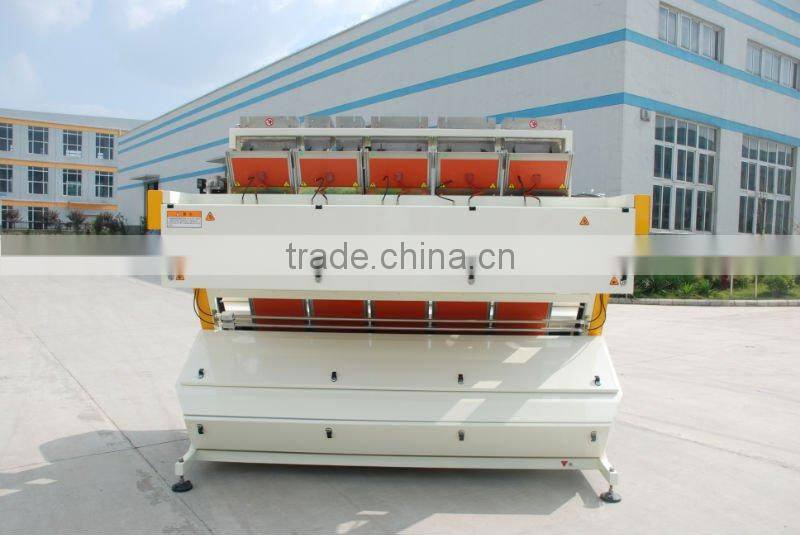

Industrial Scrap Colorized Sorter

FOB Price

US$ 10,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Clean international Co., Ltd.
Model Number	(CCD)ZK5		Type	Grain Processing Equipment

Colorized Sorter | Used for separating different grains like rice and millet on the basis of color.
4 models and 320 channels.

1.2048 pixel high-speed line scan CCD and photo processing technology.

2. Field bus structure attached with high consistency of signal, stability and simplified outline.

3. Capable of detecting minimum area 0.08mm² in order to clearly identify and seperate different granule.

4. flat and groove slide path make it much easier to recognize and sort according to flexible capacity.

Model		CCD Rice Series
Model		AMD-ZK3	AMD-ZK4	AMD-ZK5
No. of Channels		192 (128/64)*	256 (192/64)*	320 (256/64)*
Output (t/h)		2-4	3-6	4-8
Sorting Accuracy (%)		>99.99	>99.99	>99.99
Optimal Carryover (bad: good)		≥8:1	≥8:1	≥8:1
Voltage		AC220V 50HZ
Power (KW)		1.0-2.7	1.2-3	1.5-3.5
Air Pressure (Mpa)		≥0.6
Air consumption (L/min)		1000-1800	1200-2500	1500-3000
Weight (Kg)		635	750	950
Dimensions (mm)	Length	1506	1808	2110
	Width	1550	1550	1550
	Height	1840	1840	1840
Note: Color selection parameter in fixing a watch takes being labeled with one hard rice as example without exception. TheConcrete index will be different to some extent because contents different.
