What is Features of  wavecom fastrack m1206b m1306b gsm gprs modem ?

Main Features:

• EGSM 900/1800MHz
• Supports voice / data / fax / SMS (text and PDU modes) / GPRS class 10
• OpenAT capable for embedded applications
• Optional TCP/IP stack permitting direct UDP/TCP connectivity and POP3/SMTP/FTP services
• 3V SIM Interface
• 15-pin sub-D connector for voice and RS-232 serial interface
• Fully type-approved
• 25mm shorter than M1206B predecessor
• Serial port shutdown power saving feature
• Two general-purpose input/output pins built into Molex power connector
• Compatible with all laptops and PCs installed with Win 98SE / 2000 / ME / XP, Linux and Mac Os

Details:

• • Band: Dual-band EGSM900/1800 MHz
  • Dimensions: 2.6x7.4x6
  • Input Voltage: 5.5 to 32v DC
  • Power Supply: 14mA in idle mode with no RS232 communication @ 5.5VDC, 31mA in idle mode with active RS232 communication at 5.5VDC.

•

  Description Wavecom GSM GPRS Modem, Interface: RS232
  Specifications
  Model	M - 1206B-1
  Design	Industrial Design, Aluminium Casing
  Based On	Based on WAVECOM Module A-2406B
  Band	900/1800 MHz, in compliance with ETSI GSM Phase2 + Standard RJ11 For Phone
  Internet	Wireless Access to internet
  TCP/IP stack	YES
  AT Commands	Remote control GSM 07.07 & 07.05
  Interface	DB -15 PIN RS232 Interface
  SIM Slot	3 Volt SIM Card slot
  GPRS Class	GPRS Class 10
  Transmitting Speed	Maximum Transmitting Speed 115.2 Kbps
  DTMF	Yes
  Work	Send SMS, Data, FAX, E-mail and Voice
  Antenna	Male SMA connector
  Output Power	900MHz 2W (Class 4) 1800MHz 1W (Class 1)
  Input Voltage	6V to 36 V DC
  Input Current	1A to 2 A
  Standard Current	Standard Current 52mA
  Working Current.	100 - 140mA
  Working Temp.	(-20C to +55C)
  Store.temp.	(-25C to +70C)
  DB	15 PIN RS232 Interface
  Weight	80g
  Accessories	2 mounting plates;4PIN Power cable.
  Voice Features	Telephony Emergency Calls Full Rate, Enhanced Full Rate and Half Rate (FR/EFR/HR) Dual Tone Multi Frequency Function (DTMF)
  GSM Data Features:
  	Data circuit asynchronous, transparent and non transparent up to 14,400 bits/s MNP2, V.42bis
  GPRS Packet Data Features:
  	GPRS Class 10, PBCCH support Coding schemes: CS1 to CS4 Compliant with SMG31bis Optional embedded TCP/IP stack Short Messages Services features: Text and PDU Point to point (MT/MO) Cell Broadcast
  GSM Supplement Services:
  	Call Forwarding Call Barring Multiparty Call Waiting and Call Hold Calling Line Identity Advice of Charge USSD Closed User Group



  GSM Supplement Services:
  	Call Forwarding Call Barring Multiparty Call Waiting and Call Hold Calling Line Identity Advice of Charge USSD Closed User Group

What is Specifications of  wavecom fastrack m1206b m1306b gsm gprs modem ?

     Wavecom’s rugged, discrete Fastrack GSM/GPRS modem has proven itself for stable, reliable performance on wireless networks worldwide for more than five years. Updated with new features, the now legendary Fastrack continues to deliver rapid time to market and painless integration for machine-to-machine applications.

Housed in a rugged metallic casing, 25 mm shorter than the previous version, the Fastrack M1306B now offers two general purpose input/output access points to connect peripherals. Fully certified, the dual-band 900/1800 MHz Fastrack M1306B offers GPRS Class 10 capability, supports Open AT and IT protocols such as IP connectivity.
It is included as part of the basic Autopage Package. Most Autopage users depend on it to send and receive messages, or keep it as a back up, but it can also be used for many other purposes. We supply it with a 240V mains power supply, a straight helical aerial and an RS232 data cable to connect it to your computer.

Functions of different modules

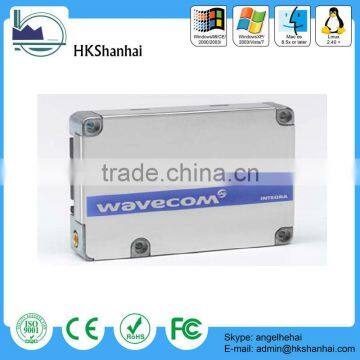

Product Photos
