Overview

   SIMCOM introduced new GSM + GPS + Bluetooth combo module. Please find attached datasheet & hardware design manual.

   SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications.

   Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

What is Features of our     Hot sale drive IC Quad-Band simcom gsm/gprs gps module sim808 ?

Feature

General features

•Quad-band 850/900/1800/1900MHz

•GPRS multi-slot class 12/10

•GPRS mobile station class B

•Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

•Bluetooth: compliant with 3.0+EDR

•Dimensions: 24*24*2.6mm

•Weight: 3.3g

•Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)

•Supply voltage range 3.4 ~ 4.4V

•Low power consumption

•Operation temperature:-40℃ ~85℃

 Other Information

What is Specifications of our        Hot sale drive IC Quad-Band simcom gsm/gprs gps module sim808 ?

 Specification

* Specification for GPS

Receiver type
-22 tracking /66 acquisition -channel
-GPS L1 C/A code
Sensitivity
-Tracking: -165 dBm
-Cold starts : -147 dBm
Time-To-First-Fix
-Cold starts: 30s (typ.)
-Hot starts: 1s (typ.)
-Warm starts: 28s (typ.)
Accuracy
-Horizontal position : <2.5m CEP

* Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD

* Specifications for SMS via GSM/GPRS

•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode

* Software features

•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
•Embedded AT (optional)

* Compatibility

•AT cellular command interface

* Interfaces

•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
•GPS Antenna pad

* Certifications(Plan)

•CE
•GCF
•FCC
•ROHS
•REACH

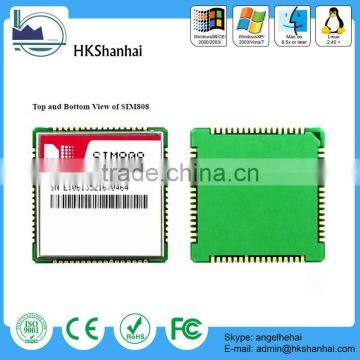

How is the pictures of our      Hot sale drive IC Quad-Band simcom gsm/gprs gps module sim808 ?
