Hotselling tri-band in stock fast delivery GSM Module mc55i Module gsm module at commands

Specifications

Hotselling tri-band in stock fast delivery GSM Module mc55i Module gsm module at commands

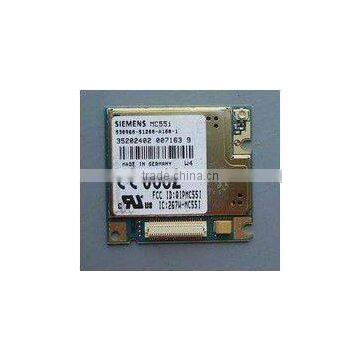

GSM  MC55I Module

1. industral design
2. TCP/IP over AT
3. GPRS class 10
4. Two serial inter

Description

The key features of the MC55i at a glance:

• GPRS Class 10 for 43 kbps in uplink and 86 kbps in downlink
• Quad-Band (850/9000/1800/1900 MHz)
• 50 pin B2B connector
• RIL driver for MS Windows Mobile 6.1 based devices
• TCP/IP over AT
• Two serial interfaces
• Extended temperature range: -40°C to +70°C

MC55i: Quad-band, miniaturized

It's just 35 x 32.5 x 2.95 mm, but packed with impressive features: Quad-Band GPRS class 10, a TCP/IP stack, a RIL driver. The MC55i comes as all-round module suitable for a host of fields: security, vending, metering, gateways, remote maintenance and control, routers and a great deal more. The Quad-Band technology allows the module to be used anywhere in the world.

The RIL driver for Microsoft© Windows Mobile 6-based devices comes free of charge and simplifies the development of smart phones, PDAs and industrial handhelds.

• GPRS class 10
• Quad-Band
• TCP/IP over AT

Triband GSM/GPRS 850/1800/1900MHz (MC56)
GPRS multi-slot class 10 / Station class B
PBCCH support
Ausgangsleistung:
2W bei EGSM 850, 2W bei EGSM 900
1W bei GSM 1800, 1W GSM 1900
Steuerung über AT-Befehle
TCP/IP stack access via AT commands
SIM Application Tool Kit
Eingangsspannungsbereich: 3,3 ... 4,8V
Betriebstemperatur: 25°C bis +70°C, Switch off: +80°C
Abmessungen:35x32,5x3mm
Gewicht: 5,5 g
GPRS: max. 85.6 kbps (downlink), Mobile station class B, PBCCH support, Coding schemes CS 1-4
Daten: CSD bis zu 14,4 kbps/USSD/Non transparent mode/V.110/GPRS: max. 85,6 kbps/ Coding Scheme CS 1,2,3,4/PPP-Stack
Voice: Half rate (HR) / Full rate (FR) / Enhanced full rate (EFR) Adaptive multi rate (AMR), Echounterdrückung, Rauschunterdrückung
SMS: Point-to-point MO und MT / SMS cell broadcast / Text- und PDU-mode
Fax: Gruppe 3, Klasse 2
Schnittstellen: Hirose U.FL-R-SMT 50 Ohm Antennenanschluss, Ltkontakt für Antennen, Hirose 50-pin board-to-board connector: Stromversorgung,

Audio: 2 x analog, 1 x digital, SIM Card 1.8 V / 3 V, 2 serielle Schnittstellen (ITU-T V.24 protocol), Ladegert
Treiber: RIL/MUX software für Microsoft Windows Mobile 5.0 Gerte
