New and Original Low Price Multi-Band LTE EV-DO/HSPA+/WCDMA Simcom Sim7500a 4g 3g Gps Gsm Module

New and original low price Multi-Band LTE EV-DO/HSPA+/WCDMA simcom sim7500a 4g 3g gps gsm module

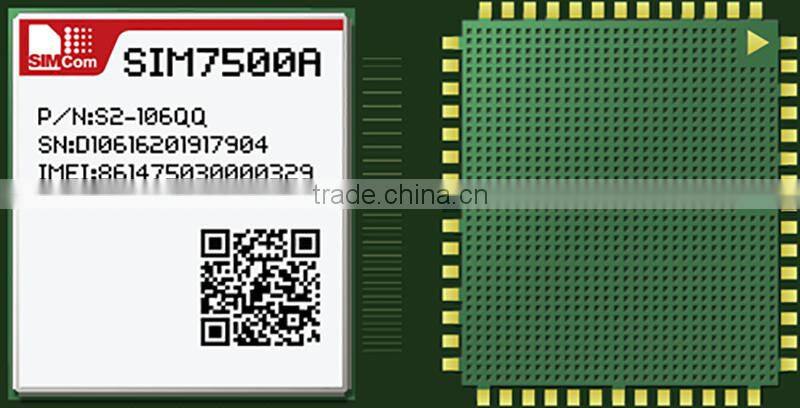

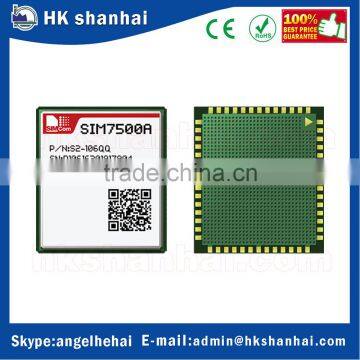

The SIM7500A is Multi-Band LTE-FDD/HSPA module solution in a SMT type which supports LTE CAT1 up to 10Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, I2C, GPIO etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.

General features

• Tri-Band FDD-LTE B2/B4/B17
• Dual-Band UMTS/HSDPA/HSPA+ B2/B5
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 24*27*2.75mm
• Weight: 4.0g

Specifications for Data transfer

• LTE CAT1
- Uplink up to 5Mbps,
- Downlink up to 10Mbps
• HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
• WCDMA
- Uplink/Downlink up to 384Kbps
• CSD
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call

Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation for windows
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
• DTMF
• MBIM to Win8
• Source code of the PC manager of the device for reference

Interfaces

• USB2.0
• UART
• SIM card
• I2C
• GPIO
• ADC
• PCM
Certifications(Plan)
• FCC
• PTCRB
• AT&T
• ROHS
• REACH

OUR ADVANTAGES

1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.

FAQ(Frequently Asked Questions)

Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience

How to Contact Us?

Send your Inquiry Details in the Below, Click "Send " Now .

Packing

1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
