Newest Wholesale Cheap Price Simcom Sim800a Smt32 Gsm Gprs Module Dual-frequency GSM/GPRS Low Power Gsm Module

newest wholesale cheap price simcom sim800a smt32 gsm gprs module dual-frequency GSM/GPRS low power gsm module

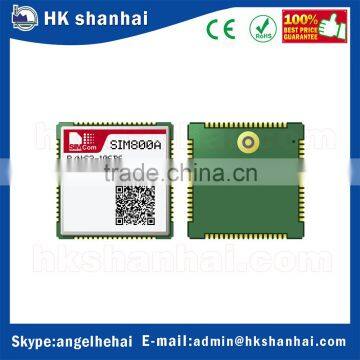

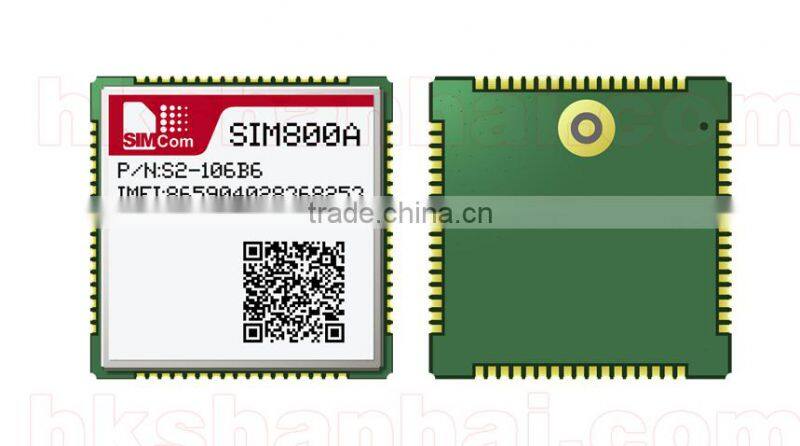

SIM800A is a complete Dual-band GSM/GPRS solution in a SMT type, which can be embedded in the customer
applications.
SIM800A supports Dual-band 900/1800MHz, it can transmit Voice, SMS and data information with low power
consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.

General features

•Dual-band 900/1800MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @900MHz)
–Class 1 (1 W @1800MHz)
•Dimensions: 24*24*3mm
•Weight: 3.1g
•Control via AT commands (3GPP TS 27.007, 27.005
and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~ 85℃

Specifications for SMS via GSM/GPRS

•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•TTS_CN (optional)
•Bluetooth 3.0 (optional)

Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD

Specifications for voice

•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•AMR
–Half rate (HR)
–Full rate (FR)
•Hands-free operation (Echo suppression)

Interfaces

68 SMT pins including
•Analog audio interface
•RTC backup
•USB interface
•Serial interface
•Interface to external SIM 3V/1.8V
•GPIO
•ADC
•PWM
•I2C
•GSM Antenna pad
•Bluetooth Antenna pad

Compatibility

•AT cellular command interface

Certifications

•ROHS
•REACH
