Wholesale Gps Chip Price Wireless Simcom 4g Sim7100 Sim7100e LIte 4g Gsm Desktop Phone Module

hot sale wholesale gps chip price wireless simcom 4g sim7100 sim7100e lte 4g gsm desktop phone module

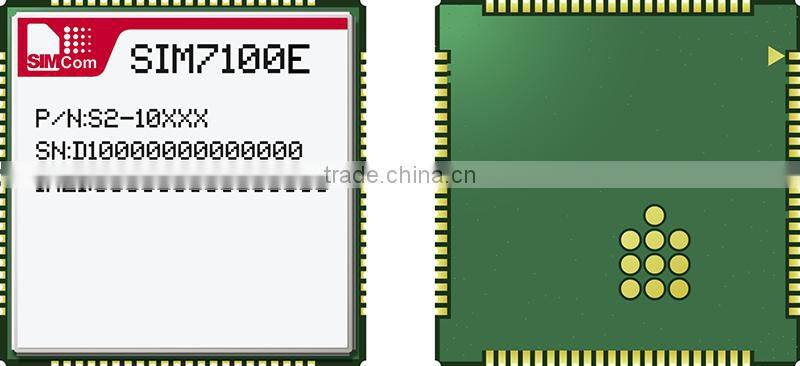

SIMCom presents an ultra compact and reliable wireless module SIM7100E which is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100E is a complete multi-band TDD-LTE/FDD-LTE/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.

General features

• Five-Band FDD-LTE B1/B3/B7/B8/B20
• Dual-Band TDD-LTE B38/B40
• Dual-Band UMTS/HSDPA/HSPA+ B1/B8
• Dual-Band GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.8g
• GNSS: gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer

• LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps
• HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• EDGE Class:
- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call

Other features

• USB Driver for Microsoft Windows2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation for windows
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
• DTMF
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device for reference

Interfaces

• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• ADC
• PCM *
• SDIO

Certifications

• CE
• ROHS ( ongoing )
• REACH ( ongoing )
• GCF ( in planning )
