QT5-20 Automatic Brick Making Machine Production Line Block Machine Manufacturer in China
- qingdao
- T/T Credit Card
You May Like
-
QT5-20 Hydraulic Paving Brick Cement Concrete Block Machine Prices, Automatic Concrete Block Machine Producton Line
-
QT5-20 Automatic Hydraulic Concrete Brick Block Making Machine in China
-
China Good Product High Quality SY7502 Interlocking Pavers Stone Tiger Stone Moulding Machine Price List for Sale
-
High Quality Pavers Stone Tiger Stone Moulding Machine SY7502 in Low Price
-
Shengya Hot Sale SY7502 Pavers Tigher Stone Moulding Machine Price List for Sale
-
SY7502 Pavers Stone Moulding Machine Price
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 5000pcs/8h | Place of Origin | Shandong, China | |
| Brand Name | shengya | Model Number | QT5-20 | |
| Voltage | 380V/220V | Power | 22KW | |
| Dimension(L*W*H) | 3650(L)*2100(W)*2720(H)MM | Certification | ISO,CE,SGS | |
| Warranty | 1 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
QT5-20 automatic brick making machine production line block machine manufacturer in China
Sales Manager:Sally Wu
Mobile&Whatsapp:0086 15305399025 Skype:wuyan535
Email: brick27 at
1.Simple introduction of QT5-20 semi automatic hydraulic brick machine
QT5-20 Automatic hydraulic color paver brick making mahcine is one of the newest styles of concrete block shapig machine of our company.
(1) Advanced hydraulic system and electro-hydraulic integration system is adopted,It is simple in operating and reliable in running
(2) The material distributing system equipped with multirow of stirring forks ,can quickly and evenly discharge the material into the moulding box.
(3) The integration of hydraulic system and vibrating make the brick shaping more quickly and the density of brick is strengthened .
(4) The machine can also produce different sizes of blocks with different moulds.
2.Specification of QT5-20 semi automatic hydraulic brick machine
Standard block | 390x190x190 Hollow block | ||
Number of each mould | 32 pcs | 5 pcs | |
Moulding cycle | 20 S | 20-25 S | |
Designed capacity per hour | 5760 pcs | 750 pcs | |
Vibrator force (KN) | 50 KN | 50 KN | |
Vibration frequency | 4500 r/m | 4500r/m | |
Amplitude (MM) | 15 | 15 | |
Number of operators | 8 | 8 | |
Pressure | 21 Mpa (≈10 T) | 21 Mpa | |
Total weight | 3.5 T | 3.5 T | |
Dimensions | 4500x1520x2900mm | 4500x1520x2900mm | |
Pallet size | 1100x550x25 (adjustable)mm | 1100x550x25 (adjustable)mm |

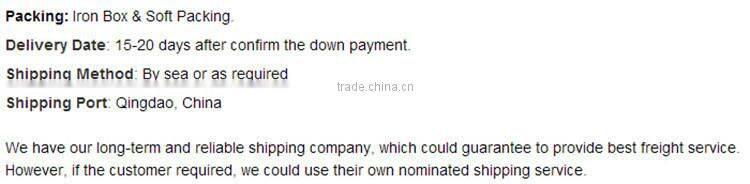

3.Packaging & Shipping
4.Pictures show:

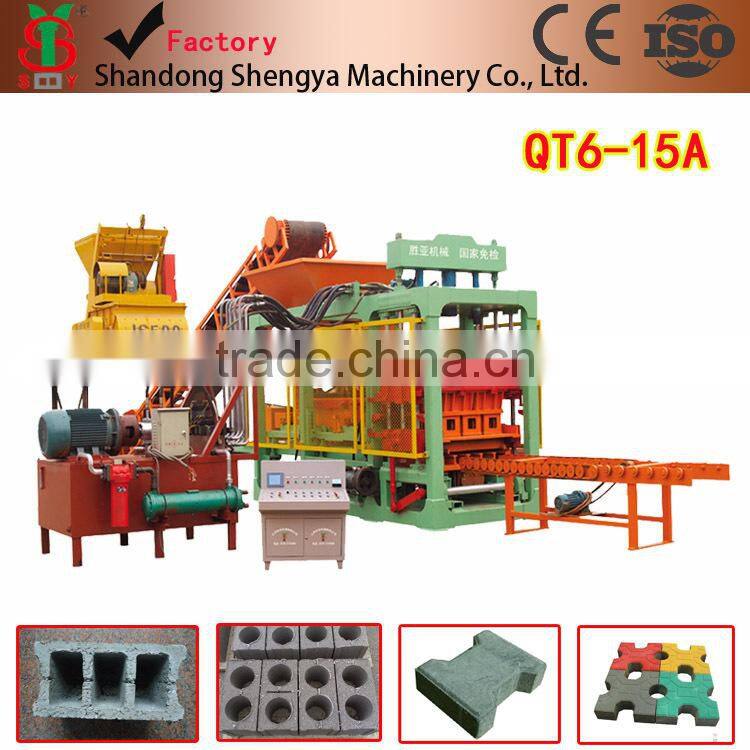

( 1)QT5-20 semi automatic hydraulic brick machine


(4) Concrete mixer for QT5-20 automatic hydraulic brick machine

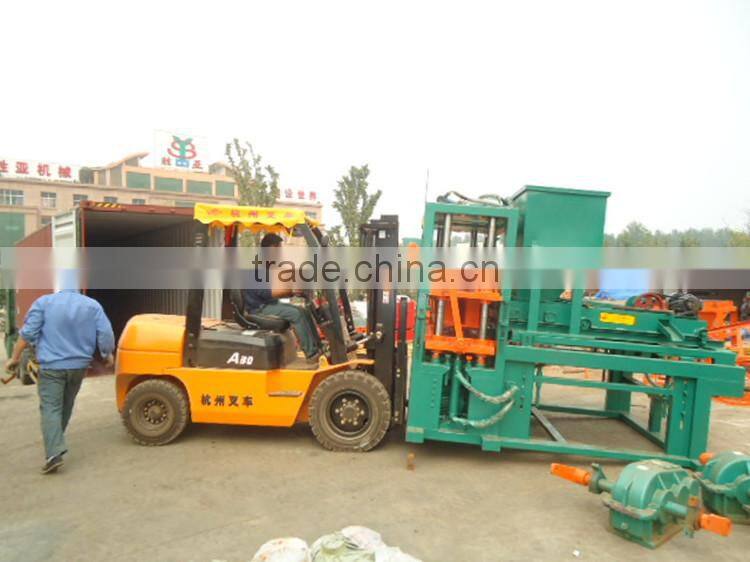

(5)shipping the goods
(6)Certificates
(8)About our factory
5.Contact information
Sally 0086 15305399025 skype:wuyan535 QQ:361869504

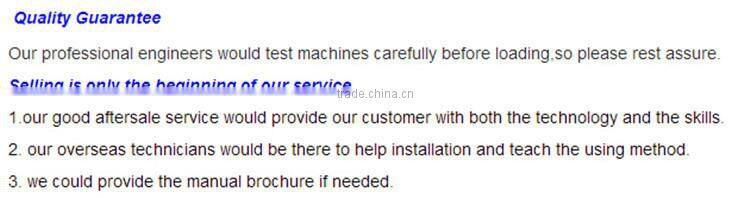

6. Our Services

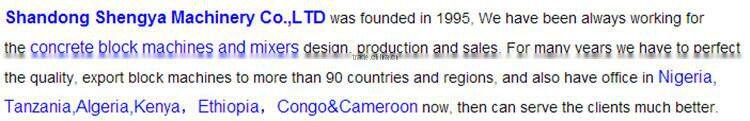

7.Company information
8.The reasons why choose us
(1)We offer different types of block machines, small, semi-automatic and fully automatic. and make all kinds of size of moulds, according to customer requirements.
(2) We have about 200 workers,50 sales manager and 10 professional designers of 20 years experience
(3)Exported to more than 70 countries in the world, setting branch office inNigeria,Tanzania,Algeria,Kenya,Ethiopia,Congo and Cameroon.
(4)Professional factory: we are manufacturer, specializing in manufacturing block machines, mixers for 20 years.
(5)Competitive price with good quality, the deadline usually is 25-35 working days.
(6)Our worker will test the machine for making blocks before we send it out,So please rest assure.
(7)Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you have any problems. We are looking forward to cooperating with you.
9. Our other type related hollow block machines
10.Warmly welcome to visit our factory.Shengya is ur best choice!
