best seller presressed electric concrete pole making machine ,concrete poles manufacturing line
- QINGDAO TIANJIN SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
concrete pole making machine production line
-
best price concrete pole production line for Africa market
-
best price electrical pole production line for Southeast --Asia market
-
best price electrical pole production line
-
low price concrete electrical pole production line
-
Electric Concrete Pole Making Machine with Lowest price to Algeria Market
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | Concrete | Application | Energy Supply Pipe | |
| Production Capacity | 12 sets one year | Place of Origin | Shandong, China | |
| Brand Name | HX | Model Number | HX series | |
| Voltage | as your request | Power(W) | 30-300kw | |
| Dimension(L*W*H) | 1500*450*750mm | Weight | 800KGS | |
| Certification | ISO,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

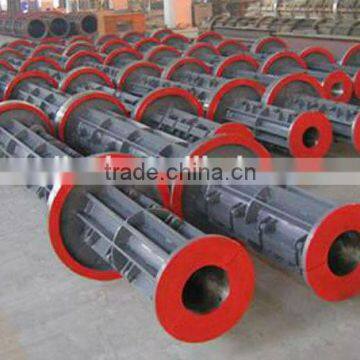

1.Electric Pre-stressed Concrete Pole Spinning Machine
2: Long life time
3: Easy Maintainence
Installtion requirments
The installation and maintenance of pole centrifugal machine
1, riding wheel rotates freely after the final assembly, without blocking phenomenon;
2, wheelbase deviation is no more than 2.5 mm;
3, fasteners shall not loose, no wrong loading or packing;
4, the levelness of the wheel (public reference axis is not more than 0.015/100;
5, roller and public reference axis alignment, 1.5 mm supporting wheel under 6, no more than 2 mm, wheel pieces 6-8;
6, the roller wheelbase allows error is + / - 0.3 mm;
7, wheel end beating is less than 0.3 mm, cylindrical beating 0.15 mm.
o. | Item | Unit | Types and forms of composition | |||
Double Riding Wheel | Three Riding Wheel | |||||
1 | Riding wheel trea d | MM | 2000 | 2000 | ||
2 | Riding wheel base | MM | 800 | 800 | ||
3 | Riding wheel external diameter | MM | 550 | 550 | ||
4 | Width of riding wheel | MM | 80 | 80 | ||
5 | The angle of center of riding wheel and wired of the center of steel mould α | (°) | 75°-110 | |||
6 | Max. Length of Molding Pole | M | 15 | 15 | ||
7 | Diameter of molded pole | Root apex of tapered pole | M | 550 | 550 | |
Equal-diameter pole | M | 500 | 500 | |||
8 | Motor Power | KM | 22 | 45 | ||
9 | Range of speed of drive shaft | r/min | 60-600 (continuously) | 60-600 (continuously) | ||
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
1. Commitment to quality and one year guarantee for main body.
2. We arrange engineer to supervise installation, make the load test, do commissioning, train of the buyer's workers.
3. Customer service 24 hours per day, 7 days per week.
4. Technique support: for any time, any way.
