Chili Processing Machine

Specifications

Qualified chili processing machine

All our food processing machines are made of superior materials with excellent preformance

high output, high quality and considerater service for you,

they are all necessary equipment for chili further processing or other agricultural by-products processing,

If you need any, please don't hesitate to contact us, we will be honored to provide you our quality service and best price.

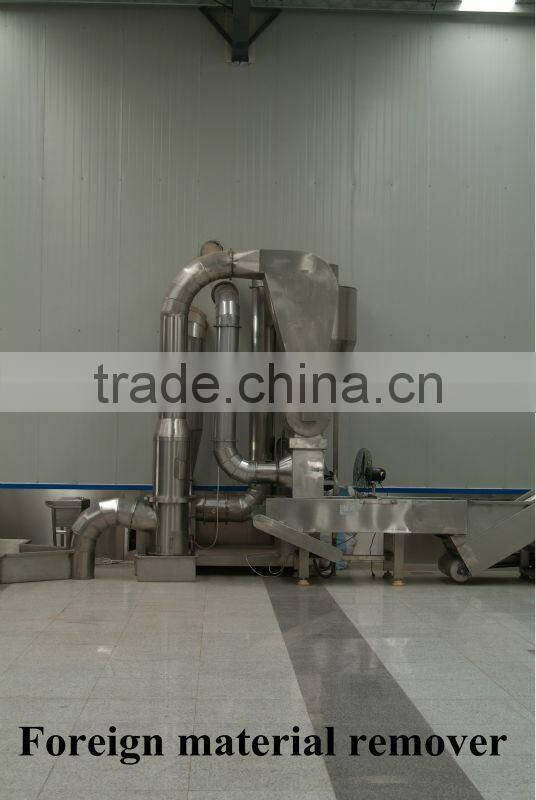

foreign material remover

stones,sands,hair,nylon and other impurity mixed in the chili will be wiped off by wind

 material: stainless steel

 Capability:1500kg/h

 Power:       15.1kw

 Dimension(L*W*H): 3500*2270*3050(mm)

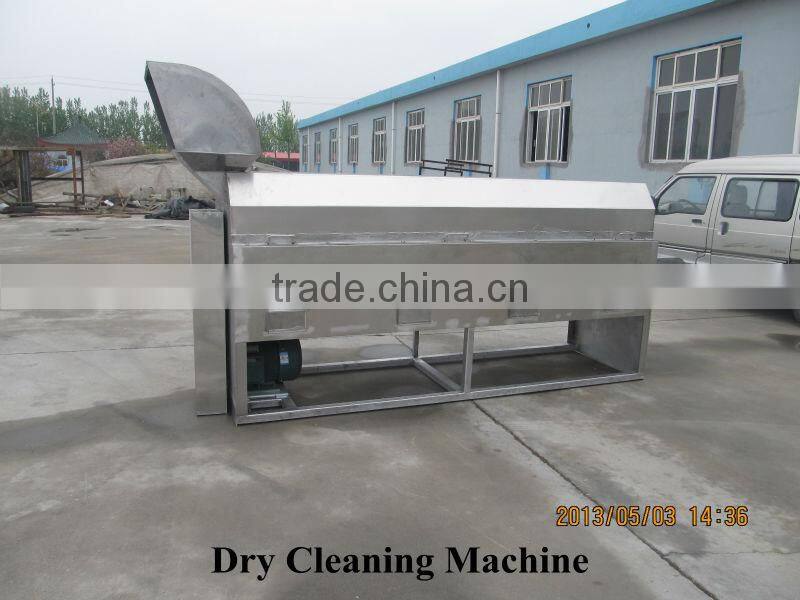

Dry cleaning machine---chili processing

 It can clean about 98% ash away from the surface of chili through brush friction,strong wind absorbing.

 We have 2 kinds of chili pepper dry cleaning machine. It can clean ash from the surface of chili pepper through brush friction, strong wind absorbing..

 1  FQX-1800:
             Material: stainless steel 201
            Capability: 1000kg/h
            Power: 11KW ( main engine:5.5 kw /  draught fan:5.5kw)
            Length: 1.8m          Diameter:0.7m

2   FQX-3000:
           Material: stainless steel 201
           Capability: 1500~2000kg/h
           Power: 11KW ( main engine:11 kw /  draught fan:5.5kw)
           Length: 3.0m          Diameter:0.8m

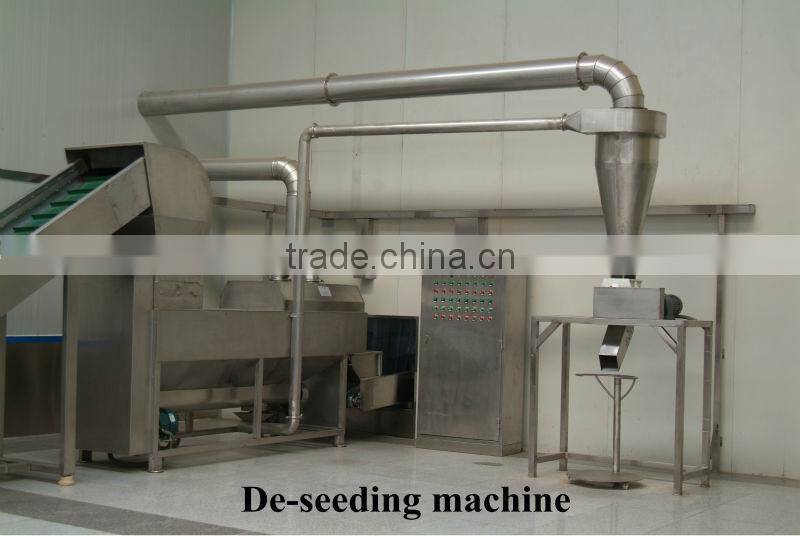

Chili processing machine-De-Seeding Machine

Function: It is mainly used to separate chili seeds from the whole chili. It can remove min. 98% chili seeds out.

Capability: 800-1000kg/h

Power: 5.5 KW

Dimension(L*W*H): 3050*740*2150(mm)

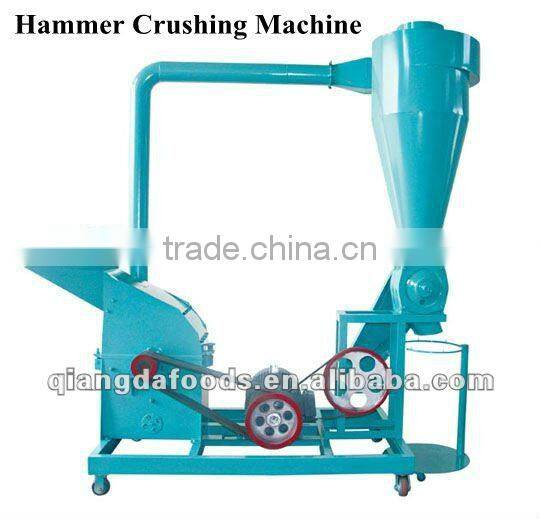

Model FFS50-40 Hammer Crushing Machine

      Function: For chili’s rough crushing. 3-8 mesh sieves can be changed according to need.

        Capability: 700-1000kg/h

        Power: 22 KW

        Dimension (L*W*H): 2480*1250*2640(mm)

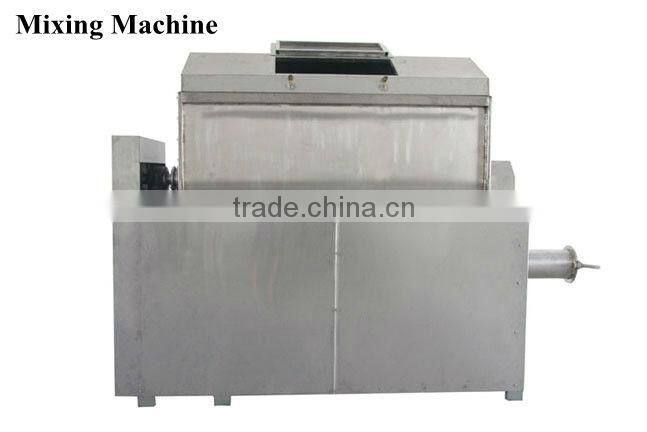

FJB-1800 Mixing Machine

Function: It is mainly used for mixing of chili powder and chili sauce,
with high efficiency. It is one of the ideal sauce and powder processing
machines, made of SUS304. Life will be more than decades.
Capability: spices500-750kg/h, chili sauce 1000kg/h
Power: 14KW
Dimension: 3000*900*2230(mm)

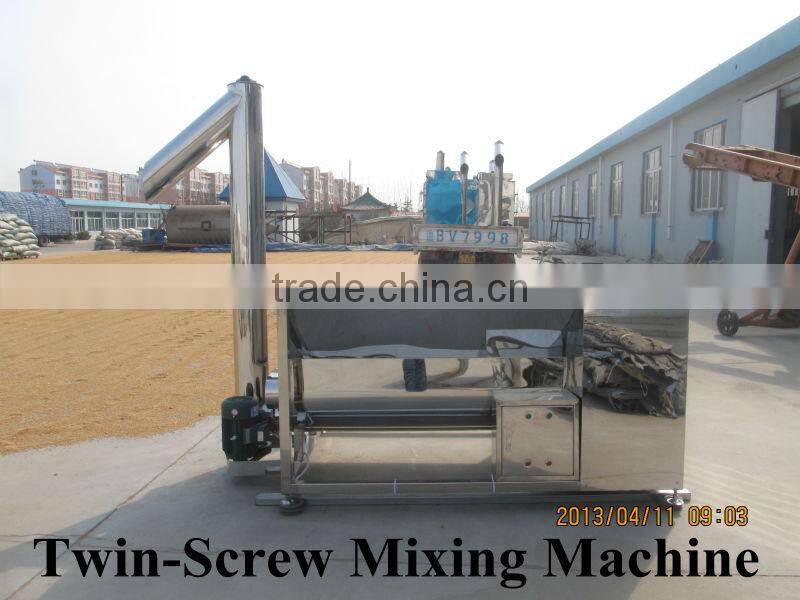

Twin-Crew Mixing Machine (Double Screw Mixing and Feeding Machine)

Model: QLJ1600

Output:1000KG/H

Power:7kw

Weight: 800KG

Number:00170

Function: It is mainly used for mixing of chili powder and chili sauce, with high efficiency.

The character and array of the gear angle in the surface of the rollers are mainly used to process chilli. the fitting technological character of the roller is as follows:

the number of the gear  :18~20/inch

gear angle:35°/65°

skewness:1:8

the array : rough to rough

when the output becomes lower, you should change the array to be sharp to rough or sharp to sharp.

 adjust the roller

After the machine being used for a long time ,when the product rate is lower heavily and the quality of the electricity consumption is high, you should do the wire-draw to adjust the roller according to the technology character.

Adjusting the distance of rollers

Coarse adjustment

Firstly, close the brake and adjust the spring and compress it 8-10mm. The pressure of the springs should be identical, you can inspect the coherence of the distance of the rollers by observing or using the 0.5-1.0mm thin sheet iron.

Putting a 450mm piece of paper sheet between the two rollers and turn the hand wheel to adjust the distance. Then turn vee belt by hand and see whether the trace pressed by the roller in the paper is consistent. If the trace is not even, you can adjust the length of staff and the pressure of spring.

.Adjustment during working :

Inspect whether the chili crushes after milling is even or not, if not, you can adjust the pressure of the spring.

 The flow is decided by the distance between the feeding rollers and the material entrance.

when you need to increase or decrease the flow ,there is a controlling hand wheel of material entrance on top left of the milling machine. And you can turn the wheel left or right standing on the manipulation place.

4.Installation

The milling machine and the suction fan should be installed firmly in a plain area, the machine rack is fixed by the bolt (M12) on the basis of the pouring concrete. Motor should touch the ground in case any electricity leakage. All electrical equipment should be installed by electrician.

All bolts and screws must be tightened in order to be reliable and firm .

 All turning parts must be in flexible way without any noise.

Parts that can be lubricated should add lube inside.

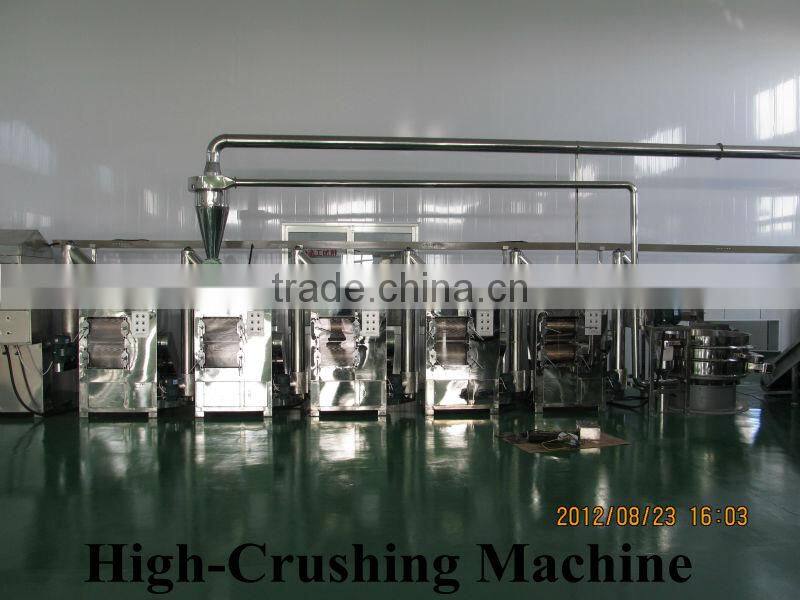

High-Crushing Machine

MODEL: FFS50-50

OUTPUT: 75KG/H per set  Total: 750-1000KG/H

POWER: 31.1KW

WEIGHT: 1200KG

FUNCTIONS: The machine can adjust chili crushed within 6-20 mesh automatically, 3-5 sets form a processing line, it can lighten the products‘ colour. This machine is used before milling to make the chili into pieces first, through high speed of the hammer, strong wind suction to the shedder, then the conveyor will transport the crushes into the rotating table. According to your need, you can change screens among 3mm-8mm. It is an important equipment before milling.

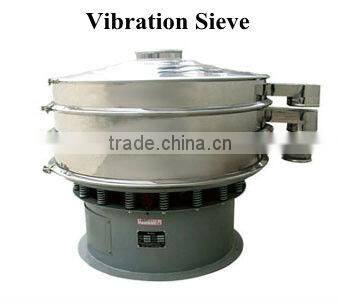

Model SQD-400-2000 Vibration Sieve

Model:SQD-400-2000

Output:According to each customers' process raw materials

Power:0.18-3.0KW

Weight::Depends on the size of diameter and number of layer.

Working principle: The vertical motors supply vibration source for SQD series vibration sieve. The eccentric heavy hammers were installed in the upper and lower side of the motors, making the motor rotary transformation for horizontal, vertical and slant movements. Then pass this movement to sieve to get different movements of materials. This machine is a very precise powder sieving machines with low noise, high efficiency. It only needs 3-5 minutes to change the sieve. Fully closed structure, suitable for separation of particles and powder. We can produce various specifications according to users'  needs. It is made of SUS304.

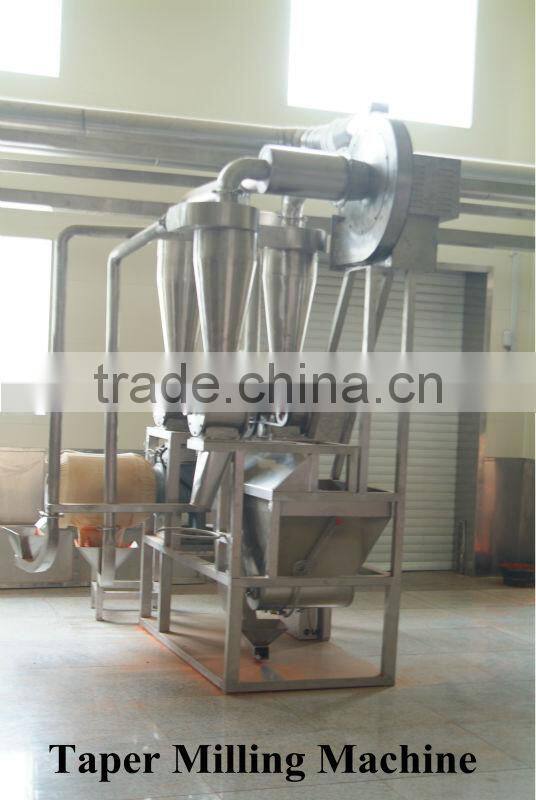

TAPER MILLING MACHINE

Model:FMZ-278B

Output: chili powder 100KG/H, Grain 300KG/H

Power: 13.2KW

Size: 1600*1600*3200

Weight: 880KG

Function: The machine can process chili seasoning powder or grains, the main part which touches the materials directly is made of stainless steel, high output, firm and durable with long life.
