wall concrete spray plastering machine flush coater

Introduction

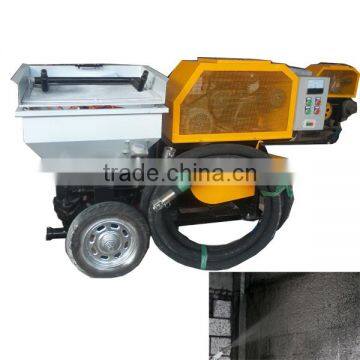

The flush coater is a new, and environmental construction equipment developed by our company, based on the advanced technology of Germany, and considered the characteristic of spraying mortar and modified. The spraying pump can be operated on the CS plate, SB plate, EPS plate, XPS plate and etc. and it has the advantage of easy operate, high hardness, good bonding, no empty drum and crazing

Operation Instructions

 The flush coater is a spraying unit with high reliable, well-adapted, sturdy and durable, easy operated. Only three peopled are needed for the construction, one conveys the raw materials, one controls the spraying gun, and the third one for assistant work (ex. move the tube). While the water adding, mixing and conveying of the materials is completed automatically by the machine. Compared the traditional manual construction, it can save the labor, money and time. Additional, the project quality is much better than manual construction. The spraying pump equipped with safety operating control system, and it would stop no matter which parts have fault, which can guarantee the safety of the machine as well as the operator.

Application Scope

Normal mortar, thermal insulation mortar, dry mortar, anti-crack mortar, interface agent, lacquer putty, building glue, adhesive, fireproof materials, epoxy coatings.

Construction Projects

Interface agent, wall mortar spraying, grid structure spraying, floor grouting, fireproof and anticorrosive paint, strong viscosity painting, etc.

Technical Data of flush coater

Power: 7.5kw, 380v 50hz

Max pressure: 6Mpa

Conveying distance:30m

Conveying height: 20m

Hoppy capacity: 50L

Maximum Aggregate Size:<4mm

Weight:320kg

Remark: Technical data may change due to technical progress. Subject to modification without notice
