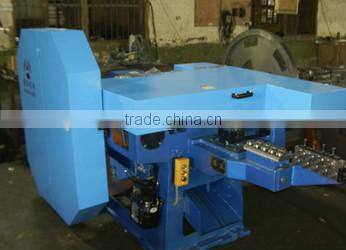

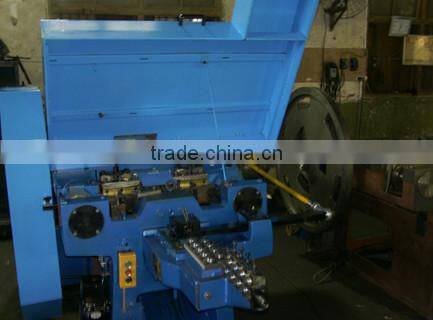

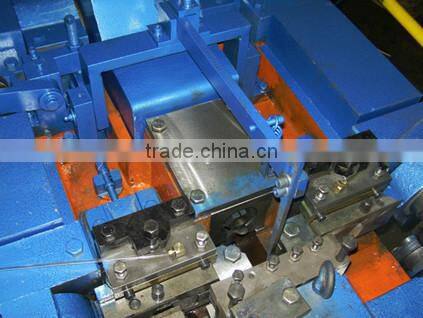

Iron Nail Making Machine Nail Making Machine Price Screw Nail Making Machine Nail Making Machine Price

FOB Price

US$ 2,500 - 4,100 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	LANKAI
Model Number	714Total closed		After-sales Service Provided	Engineers available to service machinery overseas

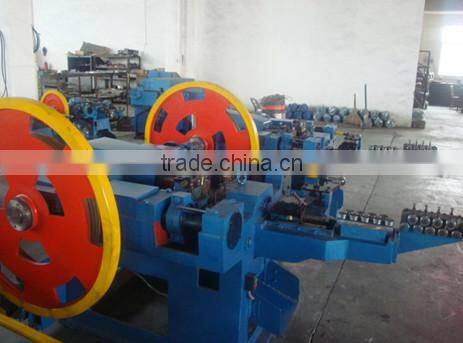

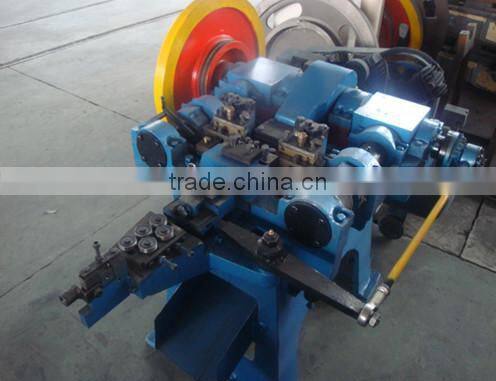

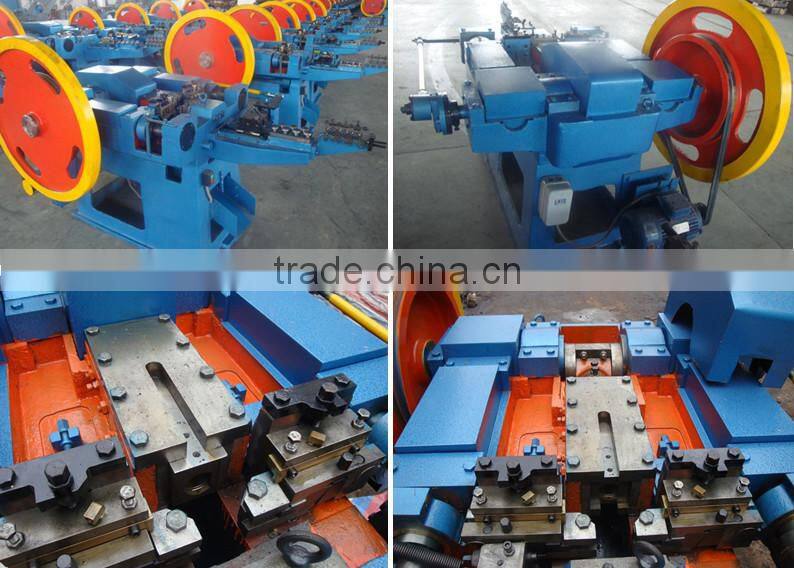

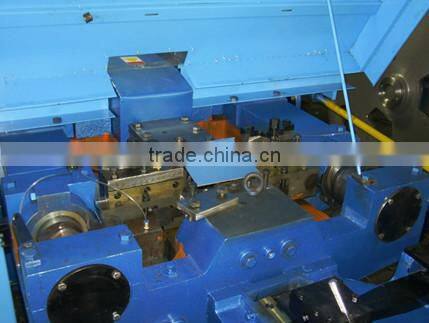

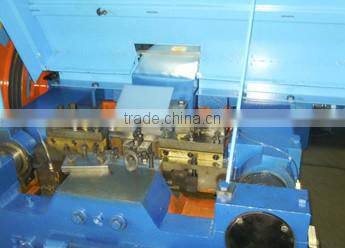

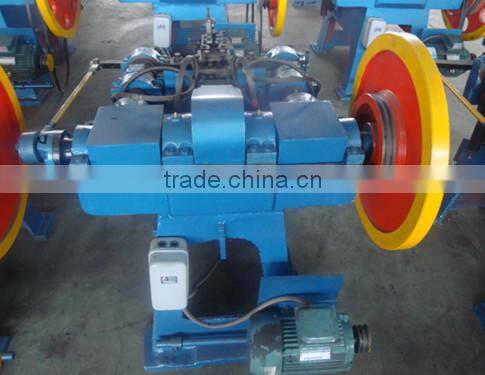

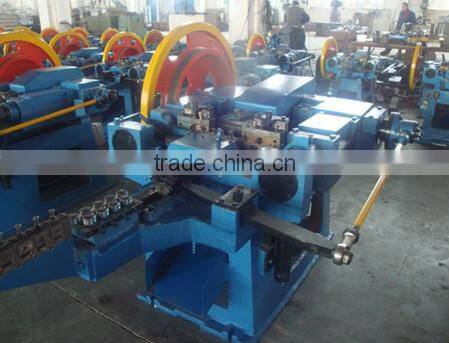

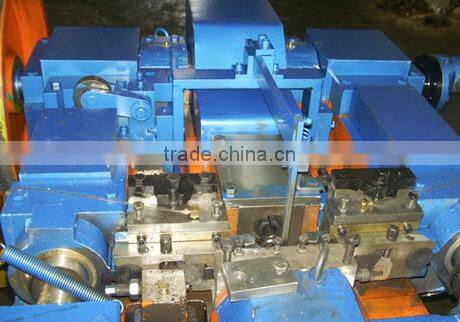

Nail Making machine Nail producing machine

Model 711 nail making machine

Technical parameter:

Model	711
Max Nail making length	32mm
Max Nail diameter	1.8mm
Capacity	450unite/min
Power	1.5kw
Noise	55db
Weight	550kgs
Dimension	13509501000mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model 712 nail making machine

Model	712
Max Nail making length	60mm
Max Nail diameter	2.8mm
Capacity	360unite/min
Power	2.2kw
Noise	60db
Weight	1250kgs
Dimension	165011501000mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model 713 High speed nail making machine

Model	713 high speed
Max Nail making length	85mm
Max Nail diameter	3.8mm
Capacity	325unite/min
Power	3kw
Noise	60db
Weight	1400kgs
Dimension	190012001250mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)

Model 713 Total Closed nail making machine

Model	713 Total closed
Max Nail making length	85mm
Max Nail diameter	3.5mm
Capacity	200-400unite/min
Power	3kw
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model 714 High speed nail making machine

Model	714 high speed
Max Nail making length	110mm
Max Nail diameter	4.5mm
Capacity	250unite/min
Power	3kw
Noise	70db
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model 714 Total Closed nail making machine

Model 714 bigger type nail making machine

Model	714Bigger type
Max Nail making length	140mm
Max Nail diameter	5mm
Capacity	220unite/min
Power	4kw
Noise	70db
Weight	2000kgs
Dimension	235014201330mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

If you are interested in this nail making machine,please feel free to contact Phyllis zhang,it is an pleasure to cooperate with you.

TEL:0086 15939029164
