3 Ton Forklift Truck, New Forklift for Sale

FOB Price

US$ 1,000 - 3,896 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	GOLE	Model Number	TKA10-30,TKA15-30
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	1000kg,1500kg	Max. Lifting Height	4m
Min. Lifting Height	2m	Fork Length	1070mm
Fork Width	120mm	Overall Dimensions	325011602122
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

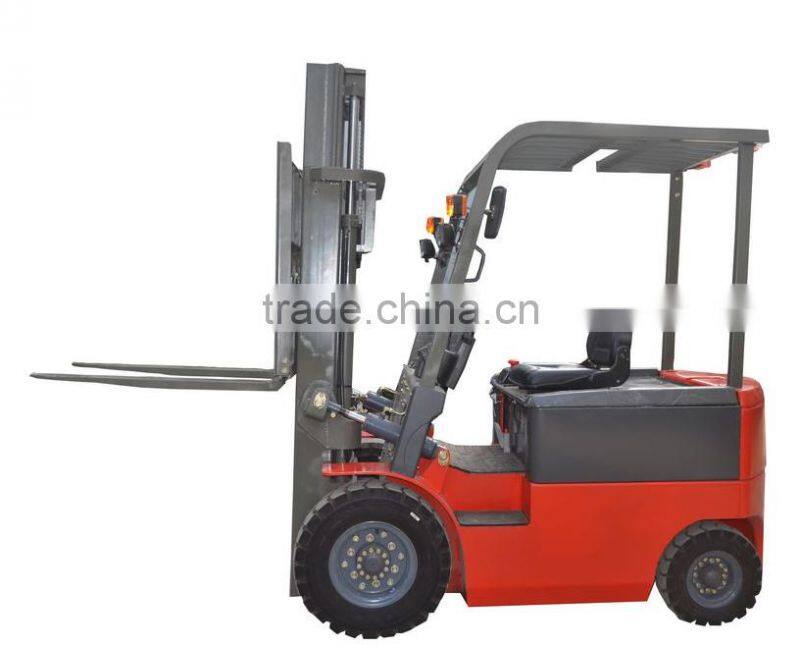

3 ton forklift truck, new forklift for sale

Rated load capacity: 1000-1500 kg, maximum lift height: 4500mm

AC drive motor with strong applicability suitable for small space operation and storey operation;

1. Safety neutral device which does not allow starting when in a neutral position.

2. Curve Safe control to automatically slow down when turning.

3. Safety oil shut-off valve to ensure security of the personnel and cargo.

4. Forward cylinder security locks and variable wheelbase to ensure more security in forklift running.

5. High-strength overhead guard to ensure safety of the operating personnel.

6. Parallel arrangement of the drives to minimize power consumption.

7. Hydraulic power steering to reduce fatigue.

8. Ergonomically designed operating handle with comfortable soft seat to decrease fatigue in working.

Description Model No.	TKA10-30	TKA15-30
Rated Capacity (KG)	1000	1500
Operator Type	Seated	Seated
Max. Lifting Height (MM)	3000	3000
Min. Turning Radius (MM)	1170	1275
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST	2870	2975
Max Travel Speed km/h-laden/unladen	6.5/7.5	6.0/7.0
Load center MM	500	500
Fork Dimensions-L/W/T---mm	92010035	92010035
Max. Gradeability ---%--Laden/unladen	8/10	8/10
Lifting Speed (MM/S)-laden/unladen	125/170	125/170
Overall Length (MM)	2265	2370
Length-to Fork Face	1345	1450
Overall Width (MM)	915	1055
Height-Overhead guard--mm	1965	1965
Height---Mast Lowered (MM)	2065	2065
Height-Mast Extended w/ Load-Backrest -mm	3545	3545
Height--Free Lift --mm	0	0
Height--seat to overhead guard ---mm	1000	1000
Tilt Angle----Forward/Backward--deg.	2/4	2/4
Fork Spread Range (MM)	220-548	220-548
Front Overhang ----mm	175	175
Wheelbase ----mm	880-961	950-1031
Tread ----mm --front/rear	747	871
Min Ground Clearance--mm	90	90
Front Tyre -- (MM)	305×127	305×140
Rear Tyre -- (MM)	267×127	267×127
Service Brake	Hydraulic
Parking Brake	Hand
Battery V/AH	24V /360 AH	24V/480 AH
Battery-Weight ---kg	295	370
Charger-Intelligent	24V /40 A	24 V/50 A
Driving Motor (KW)	2.8	2.8
Steering Motor (KW)	0.75	0.75
Lifting Motor (KW)	3.5	3.5
Service Weight ---kg --incl. Battery	1950	2170
