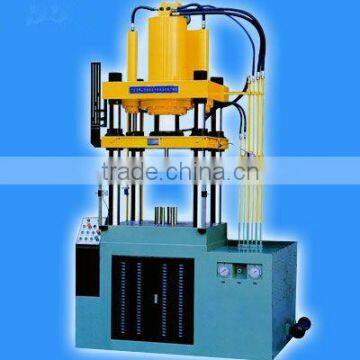

Aluminum pot deep drawing machine
USD $1 - $50,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao Tianjin
- T/T Credit Card
You May Like
-
hydraulic metal pressing machine for making trolley bucket
-
hydraulic metal pressing machine for making trolley bucket
-
hydraulic press machine 150 ton
-
480kg rebar bending machine 380V, manual / Automatic rebar bender GW55D
-
GW50B rebar bender with emergency stop button, steel bending machine have longer working life guaranteed
-
OEM bending machine can change voltage according to customer's needs, GW40B rebar bender with Worm drive system
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Henan, China | |
| Brand Name | GOLE | Model Number | YL32 | |
| Voltage | 380V | Power(W) | 15KW | |
| Weight | 9T | Dimension(L*W*H) | 1280*940*3850mm | |
| Certification | ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Aluminum pot deep drawing machine1.four-column double drive
2. used for metal drawing, curling, flanging, cold-extruding
Aluminum pot deep drawing machine
1.YL32 Series Four-Column Hydraulic Press is one of the new generation of plate process and developed by AccurL. three-beam and four-pole structure design for large operating spaces - suitable for automatic operations forming, punching, bending,straightening and multi-press assemblies to form automatic production line.
2.Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany.
Aluminum deep drawing machine specification:
| Type(YL32) | Unit | 315Tons | 400 Tons | 500Tons | 630Tons | 800Tons | ||
| 1 | Rated Nominal Pressure | KN | 3150 | 4000 | 5000 | 6300 | 8000 | |
| 2 | Knock Out Force | KN | 630 | 630 | 1000 | 1000 | 1000 | |
| 3 | Back Stroke Pressure | KN | 600 | 500 | 900 | 850 | 1000 | |
| 4 | Ram Stroke Length | mm | 800 | 800 | 900 | 900 | 1000 | |
| 5 | Knock Out Stroke | mm | 300 | 300 | 350 | 350 | 350 | |
| 6 | Max.Opening Height | mm | 1250 | 1250 | 1500 | 1500 | 1800 | |
| 7 | Ram speed | Idle Stroke | Mm/s | 100 | 100 | 100 | 100 | 120 |
| Work | Mm/s | 41406 | 41374 | 41470 | 41406 | 41406 | ||
| Return | Mm/s | 60 | 70 | 80 | 85 | 95 | ||
| 8 | Knock out speed | Knock out | Mm/s | 55 | 55 | 75 | 75 | 95 |
| Return | Mm/s | 145 | 145 | 170 | 170 | 170 | ||
| 9 | Work Table size | L-R | mm | 1260 | 1250 | 1400 | 1600 | 2200 |
| F-B | mm | 1160 | 1250 | 1400 | 1600 | 1600 | ||
| 10 | Outline dimensions | L-R | mm | 3500 | 3500 | 3900 | 4510 | 4800 |
| F-B | mm | 1500 | 1600 | 2150 | 2250 | 2400 | ||
| Height | mm | 4600 | 4850 | 5200 | 5400 | 5700 | ||
| 11 | Motor Capacity | Kw | 22 | 22 | 2×22 | 2×22 | 2×30 | |
| 12` | Weight of the Machine | Kg | 14500 | 16500 | 25500 | 33000 | 53000 | |
