Home > Products > other items > Hot Dipped Galvanized Ground Screw Spike F76 x 1600 mm

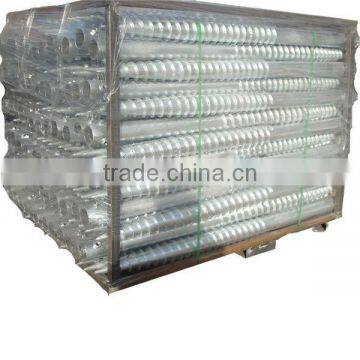

Hot Dipped Galvanized Ground Screw Spike F76 x 1600 mm
US$ 3.5 - 15
/ Piece
100 Pieces(Min. Order)
- Qingdao port or Tianjin port
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | hetian | |
| Model Number | F76 x 1600 mm | Type | Concrete Anchor | |
| Material | Steel | Diameter | diameter 76 mm | |
| Length | 1600mm 1800mm 2000mm | Capacity | 2000kgs |
Product Description
Specifications
Ground Screw Spike1)Material: steel ISO Fe360A
2)surface treatment: hot dipped galvanized
3)All the types of structures
Ground Screw Spike
Hot Dipped galvanized Ground Screw Spike F76 x 1600 mm.
1) Technological parameter.
| specification | F114 x 1200 x 200.00 F114 x 1600 x 220. F114 x 2000 x 220.00 |
| material | Steel Iso 630Fe360A |
| length: | 1200 mm 1600 mm 2000mm |
| outer diameter: | ¢114 mm |
| thickness of tube | 3.0-4.0 mm |
| Durchnesser lochbohrung | 6 x ¢14.00 |
| throat | 167.00 |
| flange thickness: | 8.0mm |
| flange outer diameter | ¢220.00 mm |
| adjustment | M 24 |
| thickness of zinc | 57-75um |
2) Advantages of ground screw spike
1.Ground screw anchors set new standard for safe,fast and affordable construction projects
2.ground screw anchors are installed in a matter of minutes no digging and no concrete
3.our ground screw can be widely used in all the type of soil( sand,and gobi ,desert,rock and so on
