Cattle Fencing Panels

FOB Price

USD $28 - $28 / Piece

80 Pieces(Min.Order)

Port Qingdao Port or Tianjin Port
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Hetian
Model Number	HT15005	Frame Material	Metal
Metal Type	Steel	Pressure Treated Wood Type	Heat Treated
Frame Finishing	Other, hot dipped galvainzed	Feature	Easily Assembled, Eco Friendly, Pressure Treated Timbers, Rodent Proof

Product Description

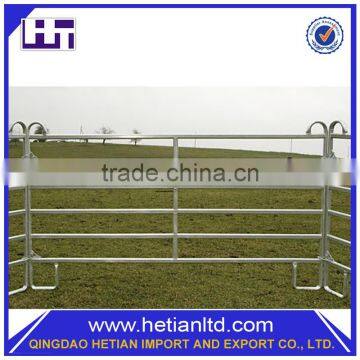

Cattle Fencing Panels

Product Description

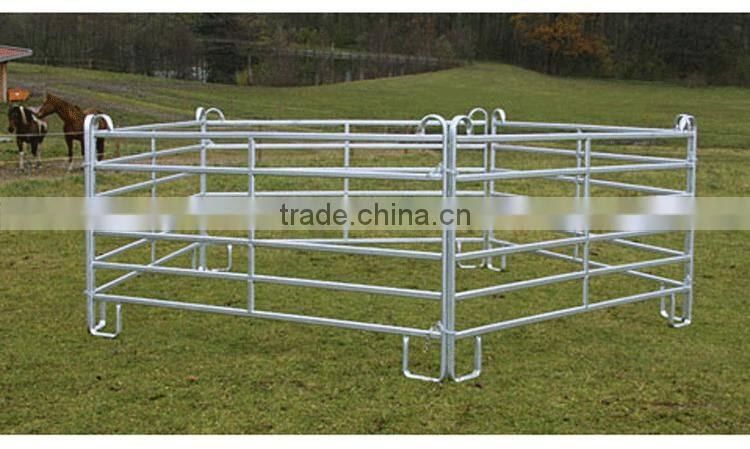

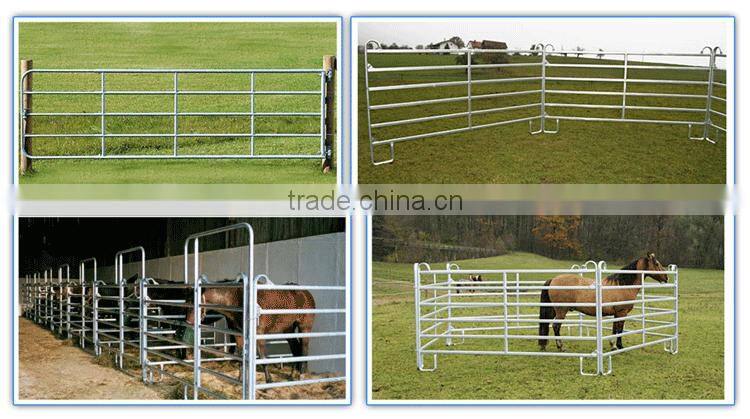

Horse Fence Panel
Material	hot dipped galvainzed square pipe, oval pipe and round pipe and RHS.
Dimension	height:1.8m;length:2.1m,3m
Vertical pipe	RHS:50 X 50 X 1.6 mm or round pipe:50 x 1.6 mm
Horizobal pipe	a.round pipe: 32 x 1.6 mm,42 x 1.6 mm b.square pipe: 40 X 40 X 1.6 mm,50 x 50 x 1.6 mm c.oval pipe: 30 x 60 x 1.6 mm,40 x 80 x 1.6 mm
Bars/Rails	6 bars/rails
Assessories	with hugs ,caps and pins
Production Process	put the pipe on the welded shaping machine , the pipe are galvanized welded,the pipe according to the drawing,the last make the spot smoothing
Advantage	fence panel is light,easy to transport and install,ventilate diaphanous; high strenth and tensil strengthgood pressure resistance,corrosion resistance and weather resistance;anti-oxidzing property

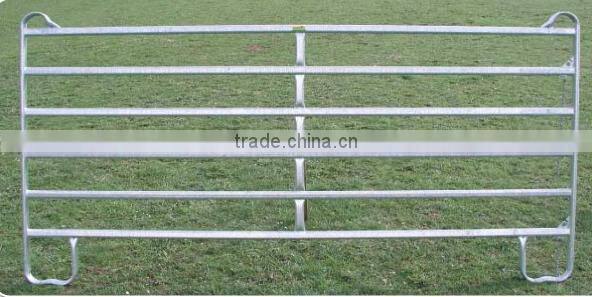

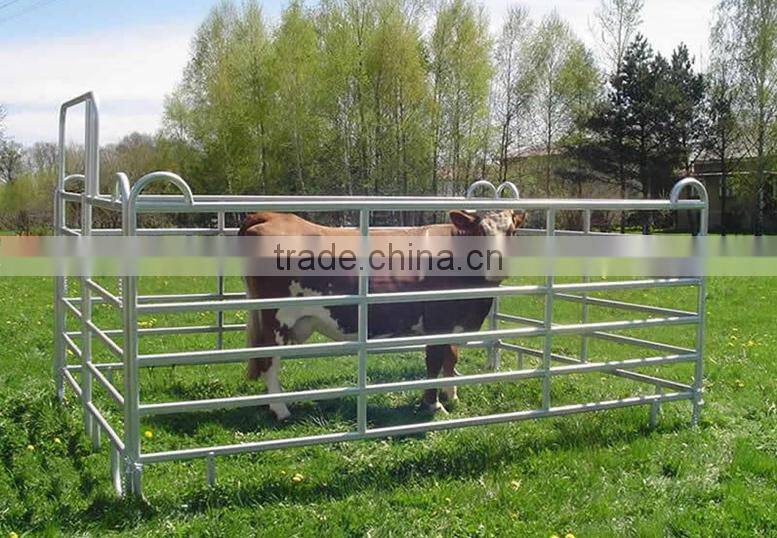

Cattle Panel
Dimension	height:1.8m;length:2.1m,2.4m (economical) height:1.5m,1.8m;length:2.4m,3.0m(heavy duty)
Vertical Pipe	RHS:40 X 40 X 1.5 mm or round pipe:40 x 1.5 mm(economical) RHS:50 X 50 X 2.0 mm or round pipe:60 x 2.0 mm(heavy duty)
Horizobal Pipe	oval pipe:80 x 40 mm;thickness:1.6 mm (economical) oval pipe:80 x 40 x2.0 mm(heavy duty)
Bars/Rails	6 bars/rails
Assessories	with hugs ,caps and pins
Feature	easy maintenance,short installation period,less weight,easy to transport

Sheep Goat Fence Panel
Dimension	height:1.1m;length:2m,3m
Vertical Pipe	RHS:50 X 50 X 1.6 mm
Horizobal Pipe	oval pipe:80 x 40mm;thickness:1.6 mm
Bars/Rails	6 bars/rails
Assessories	with hugs ,caps and pins

1.We strictly select good material to ensure the reliable quality.

2.Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.

3.We buy the material from the big steel factory, never buy the material from small mill.

4.The Technical and specialized support from us will be available.

5.The upgraded products information will be timely supplied.
