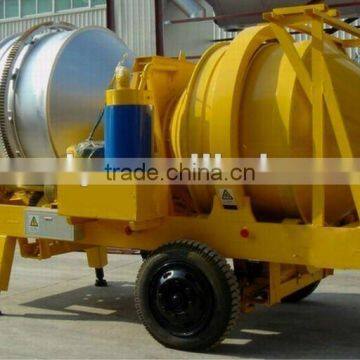

20t/h GCS-20 hot mix plant

Specifications

hot mix plant-20t/h

1.Integrated design of drying and batching drum,reduce initiate cost for customer.

2.Simple structure,easy operation,drying while drum rotate in counter -clockwise

  direction(from burner),discharging while drum rotates in clockwise direction(from burner),and

  the wind are swirled in the center of the drum.

3.PLC control,touch screen,auto/manual switchable.

4.Towing chassis for easy transport and installation.

5.Burner is available for coal and oil,at customer's option.

hot mix plant

hot mix plant Auto Production Line

1)Integrated design of drying and batching drum,reduce initate cost for customer.

2)Aggregate feeding.

3)Aggregate discharged into drying drum.

4)Mineral aggergates are continuously lifted in the drying drum,forming"material curtain",and

   conducting intensive heat exchange with the flame of the burner,and aggregate is conveyed into

   the its elevator.

5)Hot aggregate discharged to mixer drum,QCS Series adopts filer elevator making filler get into

   mixer drum,then the more aggregate is lifted and discharged into drying drum.

6)Mineral aggregates,filler and biumen are continuously lifted and uniformly mixed in the mixer

   drum,the drying drum and aggregate's elevator continuously cycle work.

7)Asphalt Discharge:Mixer drum ends mixing after hot minteral aggregates being uniformly bound

   finished product material is discharged out.

8)If there is the storage silo,finished product material is lifted by its elevator to its storage silo and

   discharged into the storage silo and then stored.
