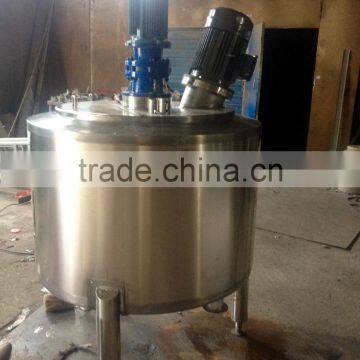

Stainless steel mixing tank with homogeneous
USD $1,500 - $3,000
/ Set
1 Set(Min.Order)
- All ports in China
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Agitator | |
| Application | Liquid | Additional Capabilities | Milling | |
| Place of Origin | Hebei, China | Brand Name | Dingtian | |
| Voltage | 380V\220V | Certification | CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
stainless steel mixing tank with two mixers
1.frame mixer and emulsor
2.efficient mixing
Specifications
stainless steel mixing tank with two mixers(CE certificate)
1.frame mixer and emulsor
2.efficient mixing
stainless steel mixing tank with two mixers(CE certificate)
Description:
The S/S mixing tank is widely applied in beverage, food, dairy, pharmaceutical, chemical and process industries .Our mixing tank can make according to customer's requirement for the structure, single-layer ,double-layer(jacket) and three-layer(insulation layer) or make limpet coil (inside or external ) to heat and cold.
Application field:
1. Used for material mixing tank(heating),disinfection tank, aging tank, fermentation tank, agitation tank, etc.
1. Used for material mixing tank(heating),disinfection tank, aging tank, fermentation tank, agitation tank, etc.
2. Suitable for such fields as dairy, juice beverage, medicine chemical or bio-engineering project, etc.
Structure:
1. Mainly consisting of canister body, honeycomb jacket and outer wrap layer, between the outer wrap layer and jacket is adiabatic material, with lateral agitator.
2. Material is high quality stainless steel.
Standard Filling
1. Quick open type manhole
2 . Numeral indication type temperature meter
3. T type cleaning head
4. Hauling lever type releasing valve
5. Adjustable cone branch feet
6. Agitator
Technical Parameter
| Working Volume (L) | Dimension (DxH)mm | Total Height (mm) | Diameter of Inlet & Outlet (mm) | PU Insulation (mm) | Motor Power (KW) | Mixing Speed (R/Min) |
| 500 | 900 x 800 | 2200 | Φ38 | 50 | 0.75 | ABB/ Siemens 35 -150 Rpm |
| 800 | 1000 x1000 | 2400 | Φ38 | 50 | 0.75 | |
| 1000 | 1100 x 1200 | 2900 | Φ38 | 50 | 1.1 | |
| 2000 | 1300 x 1500 | 3100 | Φ38 | 50 | 1.5 | |
| 3000 | 1550x 1500 | 3300 | Φ51 | 50 | 1.5 | |
| 4000 | 1600 x 2000 | 3800 | Φ51 | 50 | 2.2 | |
| 5000 | 1700 x 2200 | 4150 | Φ51 | 50 | 2.2 | |
| 6000 | 1700 x 2600 | 4500 | Φ51 | 50 | 3 | |
| 1. It can be made according to special requirements of customers. Total Height is in accordance with outlet height of 300mm. If outlet height is changed, Then the total height shall also be changed! | ||||||
| 2. The Power of Motor shall be changed according to the Viscosity of material In the tank! | ||||||
