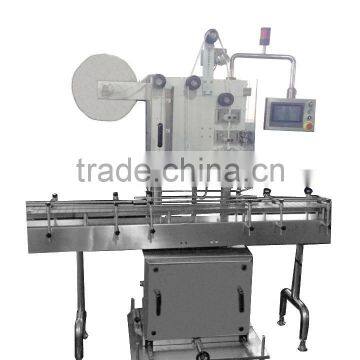

Desiccant stuffing machine

Condition	New		Driven Type	Electric
Voltage	220v		Power	0.55kw
Place of Origin	Shanghai, China		Brand Name	Paikerui
Model Number	GZJ-120		Dimension(L*W*H)	1500*650*2200mm
Weight	350 kg		Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

It is controlled by programmable Logic controller( PLC) , Chinese interface touch screen.
Imported high-speed servo motor

Operating Principles:



According to the size of desiccant.Set the parameters on the touch screen to control the feeding device driven desiccant bag,By U-electric eye locator detects the data back to the programmable logic controller (PLC),

On the basis of the comparison result of the feedback value and the set parameter, If within the set range, then order cutter cylinder moves to complete the feeding action



Features:

1.Compact, elegant design,easy to use and maintenance

2.It is controlled by programmable Logic controller( PLC) , Chinese interface touch screen, easy to learn and operate

3.Imported high-speed servo motor is adopted to feed accurate .

4.Desiccant length can be automatically identified and display the appropriate parameters, easy to operate

5.Desiccant length input setting interface via the touch screen, fixed accurately

6.The lift frame can be applied to bottles of different heights

7. Apply to paper to paper, paper to plastic and other packaging materials back-sealing sealing the entire volume of desiccant

8.The machine adopts stainless steel and other materials, which conform to GMP standard.

9.Can be use for single or multi-machine on-line













Model	Capacity	Desiccant bag length	Desiccant bag width	Rated voltage	Power	External Dimension(L*W*H)	Weight
GZJ-120	160 bottle/min	10~50mm	5~30mm	AC 380/220 V	0.55 KW	1500×650×2200mm	350 kg
