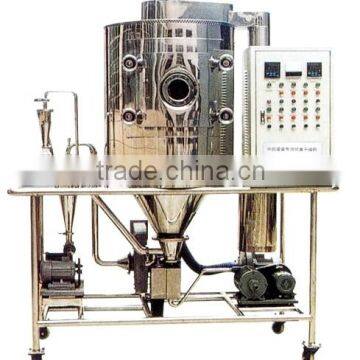

Medicine spray dryer
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | chang gan | |
| Model Number | ZLPG | After-sales Service Provided | Engineers available to service machinery overseas | |
| Type | Drying Machine |
Product Description
pulverizer for Chinese traditional medicine is suitable for drying the Chinese traditional medicine products that are Iow in fusion point and high in the sugar contents. And the machine owns the characteristics that its products do not sticky to the walls and that they are uneasy to absorb the moisture and etc. The technological conditions for the spray and drying are decided according to the features and property of the products to be dried for the machine.
The machine is high in automation is easy in operation. It meets the GMP requirements. The calculation and selection of the technological parameters are totally completed through computers. The successful development of this machine has settled the technical difficult point for which it is very difficult to use the spray and drying technology for Chinese traditional medicine products with Iow fusion point and high sugar contents for many years. This machine is also a new development for the application technology research of the spray and drying in Chinese traditional medicine industry.
Technical parameters
| type | ZLPG-13 | ZLPG-17 | ZLPG-25 | ZLPG-32 | ZLPG-38 | ZLPG-40 | ZLPG-47 | ZLPG-52 | ZLPG-58 | |
| evaporated amount of moisture kg/h | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| treated amount of raw material liquid(kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| output of finished product(kg/h) | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| solid content of raw material(%) | 18-25 | |||||||||
| ratio of moisture of finished product(%) | 3-5 | |||||||||
| electric power(kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| heating source | steam plus electricity | |||||||||
| collecting way of product and its efficiency | two-grad cyclone or grade cyclone duster and one-grade damp duater ≥95% | |||||||||
| automatic conta | indicator of temperature of hot air and hunmidity of air exhaust | |||||||||
| temperature of air in () | 150-200 | |||||||||
| temperature of air out () | 80-100 | |||||||||
| overall dimensions (mm) | L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
