30B universal grinder

FOB Price

US$ 1,000 - 5,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Changgan
Model Number	30B	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

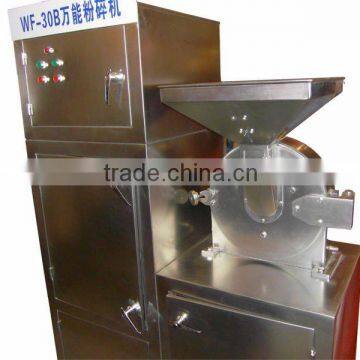

Model 30B High effective and Univeral Grinder

Description
grinder set consists of Model 30B grinder, EXC collector of raw material and ESC collective duster. It solves the problem, i.e. the dust is flying during the period of crushing raw material.
The principle of work is as follows: after raw material is fed into the crushing chamber, it undertakes the comprehensive actions such as impacted by teeth, shearing force, friction force, impacted between raw materials, finally the raw materials are crushed. Through sieving. The needed powder can be got.
The grinder, collector, of raw material and ESC collective duster are all made of stainless steel and are in conformity with the requirements of GMP

Sketch of structure

Technical parameters

productive capacity (kg/h) 100-300	overall dimension mm
revolution of main shaft (rpm) 3800	overall dimension mm
degree of fineness of finished product 80-120	grinder	720×635×1400
size of raw material to be fed (mm) <2	collective	1200×600×720
power of motor (kw) 5.5	duster	600×600×1700
power of fan (kw) 0.55	weight kg	450
