VISION Tea Color Separation Machine

Materials

The following samples are for your reference:

Tea color sorter: green tea, black tea, white tea, fermented tea etc.

Description

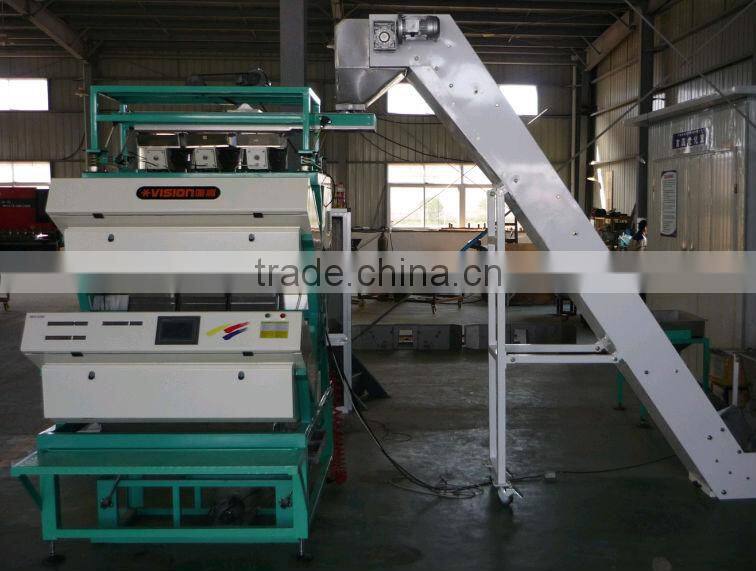

Vision tea CCD color sorter

1. The color sorter uses 2048 high performance CCD sensors with definition up to 0.02mm² and thus is able to detect fine color differences of tea in parts.
2. The high quality special industrial lenses designed and manufactured for tea color sorting. The working parameters of the lenses are customized for color sorting of tea with optimized light path design to ensure that sensitive spectrum of tea can be utilized best and every details can be imaged on the image sensor.
3. The high speed DSP technology provides the sorter with fast detection speed and high identification rate.
4. The tea detection signal control system, including high source spectrum design, high quality image collection and color sorting detection algorithm, is designed according to the spectrum characteristics and identification characteristics of tea through spectrum analysis to optimized design in each stages to ensure color sorting precision.
5. The main control system uses ARM9 high-end embedded chip to effectively increase the control speed and color sorting precision.
6. The complete sorter applies intelligent closed-loop control. The industrial grade data bus ensures the reliability of communication and the control system and provides powerful interference resistance capability.
7. The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameter settings and easy operation. The color inter face provides great vividness.
8. High speed air valve is used to ensure quick response, low power consumption and long service life. Since tea is easy to break when passing through the lifter, the dual-layer structure is adopted for one-feeding and two-detection color sorting to reduce the broken while ensuring the color sorting precision.
9. The sorter uses intelligent temperature and air pressure control technology to ensure the best working state. The sorter is equipped with automatic fault alarming and the modularized structure for easy repairing and maintenance.

Technical parameter

Tea color sorter VSN2000 Series

Note: The above parameters vary with types, shapes and grain sizes of raw materialand defect rate. Please consult the sales staff before buying.

  Business Cooperation

Qualifications & Honors

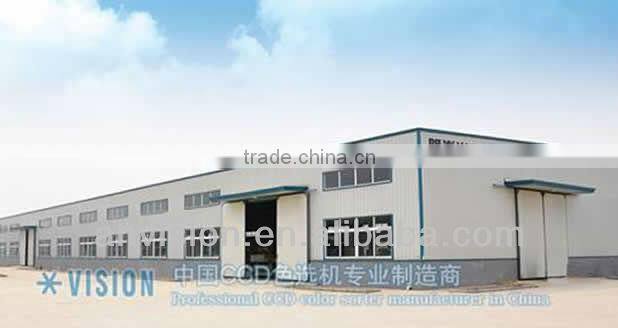

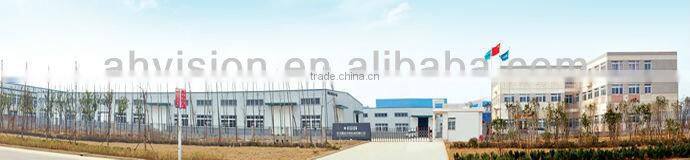

Welcome to visit  our company.
