Home > Products > Communication accessories > wholesale plastic accessories operating temperature fiber optical 1x8 plc splitter

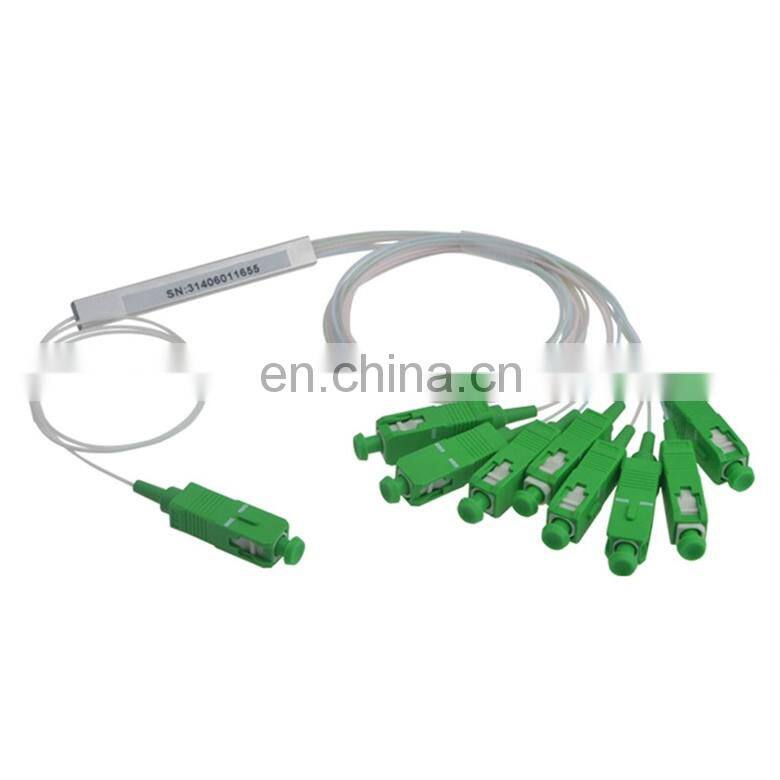

wholesale plastic accessories operating temperature fiber optical 1x8 plc splitter
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
best price sc upc single mode low insertion loss sumitomo pg fast connector
-
Fast Delivery SC UPC/LC APC Fiber Optic Adapter/FTTH Simplex/Duplex, SM Fiber Adaptor with Shutter
-
wholesale good quality china supplier new type low price optical fiber cable
-
hot sale fiber optic equipment 8 ports 16 port mini ftth epon onu gpon olt
-
CATV high power 16 output with 22 or23 dBm 1550nm indoor CATV Optical amplifier EDFA
-
Hot sale indoor toslink shutter transmitter tv ftth pon wdm catv Optical Receiver
Product Description
|
Parameter |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|||
|
wavelength(nm) |
1260~1650 |
|||||||||
|
Fiber type |
G657A1 or customer specified |
|||||||||
|
Insertion Loss (dB) |
3.5 |
7.0 |
10.2 |
13.2 |
16.5 |
19.8 |
24.0 |
|||
|
Uniformity of the insertion loss (dB) |
0.4 |
0.6 |
0.8 |
1.0 |
1.1 |
1.5 |
2.0 |
|||
|
PDL(dB) |
0.1 |
0.1 |
0.1 |
0.20 |
0.25 |
0.25 |
0.3 |
|||
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|||
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|||
|
Wavelength loss uniformity (dB) |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|||
|
Temperature sensibility (-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|||
|
Operating Temperature (℃) |
-40~80 |
|||||||||
|
Storage Temperature (℃) |
-40~85 |
|||||||||
|
Size (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
50×7×4 |
60×12×4 |
N/A |
|||
|
ABS Module size (mm) |
100×80×10 |
120×80×18 |
141×115×18 |
|||||||
|
MINI Module size (mm) |
40×4×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
100×40×6 |
N/A |
|||
