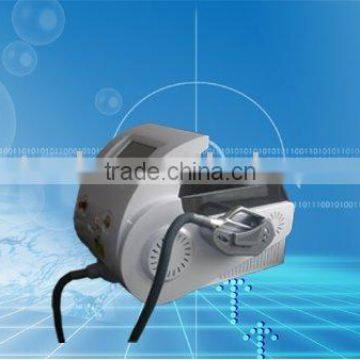

Skin Rejuvenation Portbale E-light(RF&IPL) For Hair 480-1200nm Removal &Skin Rejuvenation Machine With CE Approved

Technical Specification:

 KM-E-300C+ Series  IPL Photorejuvenation Treatment System with RF function (1 Handpiece)

Light Source:

Intense Pulsed Light

Principle

It combines three advanced technologies: Bipolar Radio Frequency + IPL +Skin Contact Cooling.

When the three are united in one treatment, wonderful treatment experience and result can be expected. The energy of Radio Frequency can reach the middle and deep layer of the skin and heat up tissue, thus, lower energy is applied during the IPL treatment. Uncomfortable feeling during the IPL treatment will be decreased significantly and better result can be expected. In addition, cooling system involved in E-light can also ease the uncomfortable feeling.

The absorbing of the energy of radio frequency is not concerned with melanin. So, the E-Light treatment can get good result on the soft or thin hair so as to decrease the risk caused by traditional IPL treatment

Wavelength:

420/510/560/640~1200nm (Standard)
640/690/755~1200nm (Option)
480/560/585/640~1200nm (Option)

Function:

1. Remove unwanted hair;
2. Smooth fine wrinkles;
3. Shrink and tighten pores
4. Remove acne
5. Remove freckle, facial blemish;
6. Remove facial vascular lesions. (Telangiectasis)
7. Rejuvenate skin

Advantage:

1. Durable sapphire filters with excellent cooling result.
2. Many interchangeable sapphire filters for option applying to different applications and skin types;
3. New connection for machine and handle piece, will not leak any water when replacing handle piece.
4. Have the alert device for conk out of water level, water temp, water flux and refrigeration
5. Remember system and Reset function ease for medical or esthetic institutions to decrease cost
6. Professional and modern design; Elegant appearance, competitive price and perfect after-sale service
7. Long continuous work time, stable function, shot period of treatment, easy operation, no down time, delivery in time without delay.

Spot size:

12 x 30mm2 ; 8x40mm2  (IPL+RF)

Cooling System:

Air & Close Water Circuitlation & Treatment head with semiconductor cooling temperature adjustable

IPL Light Energy:

10~50 J/cm2  (adjustable)

Pulse Duration:

2~15ms  (adjustable)

Pulse Sequence:

1~15 pulses (adjustable)

Delay Time:

5~50 ms  (adjustable)

Integrated Skin Cooling:

-4~ +10

Operative Interface:

8.4  TFT true color LCD touch screen

Working time:

Continue working for 8~12 hours (under optimal working temperature between 20~25)

Prepay Light Shots:

Selectable and Management by IC card function built in

Electrical Source:

100/110V, 50~60Hz; 220~260V, 50~60Hz

Trademark:

Health&Beauty

RF Frequency:

1~10MHz (adjustable)

RFOutput Mode:

Bi-Polar

RF Energy

How it works

IPL (Intense Pulsed Light) is a kind of light with high energy and broad wavelength, within the range

from 420nm to 1200nm. Intense Pulsed Light with broad spectrum affects pigmentations, vascular

lesions and hair follicles. Photochemical and photochemical action will be triggered by the radiation of IPL.

Pigment is shattered and eliminated out of body through metabolism. Meanwhile, IPL will also promote collagen production, which can make the skin more flexible and smooth. The light with long wavelength can easily pass through epidermis layer to the hair follicles in the deep skin layer. At the targeted area,high energy occurs to destroy follicles and hair shaft, preventing regrowth of new hair. With a series of treatment, IPL technology can help restore a more youthful appearance without downtime and side effect.

20~100 J/cm3 (adjustable)

Net Weight:

31kgs;

Machine Size:

620mmx440mmx500mm(L x W x H)

Gross Weight:

45kgs

 Aluminum box :

765mmx540mmx700mm

Transportation:

Air Express or Air Cargo or Choose by the customer

Warranty

Last but not the least: One-year warranty and lifelong technical service leave you no worry at all!
