Good Quality Veterinary Digital One Channel Electrocardiograph ECG EKG-901V-2 Machine CE/ISO Certified

FOB Price

US$ 199 - 399 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Carejoy
Model Number	EKG-901V-2		Properties	Other, ECG

Features:

Specification:

Safety standard	IEC60601-1 class I, type CF
Input circuit	Floating; Protection against Defibrillator effect
Lead	Standard 12 Leads, Lead change automatically
Patient current leakage	<10μA
Input impedance	≥10ΜΩ
Calibrating voltage	1mV±3%
A/D conversion	12 bit
Frequency response	0.05Hz~150Hz (IEC)
Time constant	>3.2seconds
CMRR	>80dB
	>100dB (with filter)
EMG filter	35Hz (-3dB) / 25Hz (-3dB)
Sensitivity	1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording system	Thermal-array
	8 dots/mm ( vertical )
	16 dots/mm ( horizontal, 25mm/sec )
Paper speed	25, 50mm/s±3%
Recording paper	50mm,20m, high-speed roll
Input circuit current	≤50nA
Power supply	AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery
Skin voltage tolerance	±300mV
Noise level	<15uVp-p
Dimensions	310×230×70mm
Dimension of packing	400×280×160mm
Weight	2.75kg

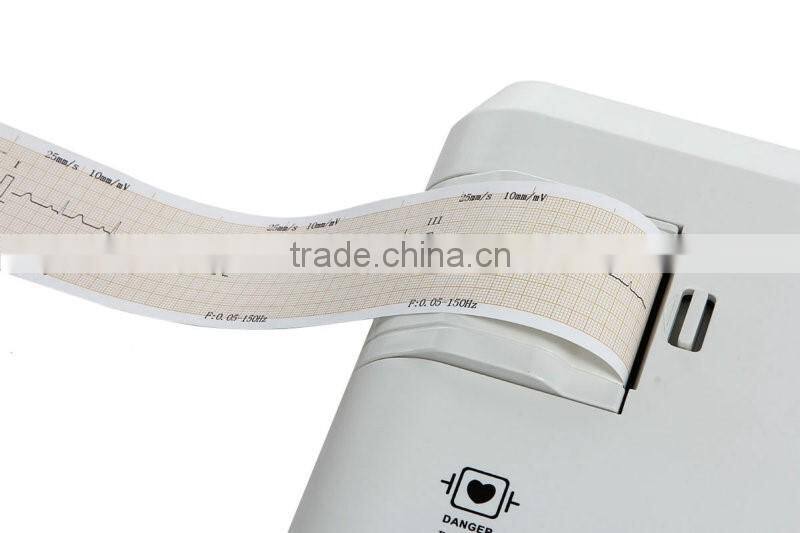

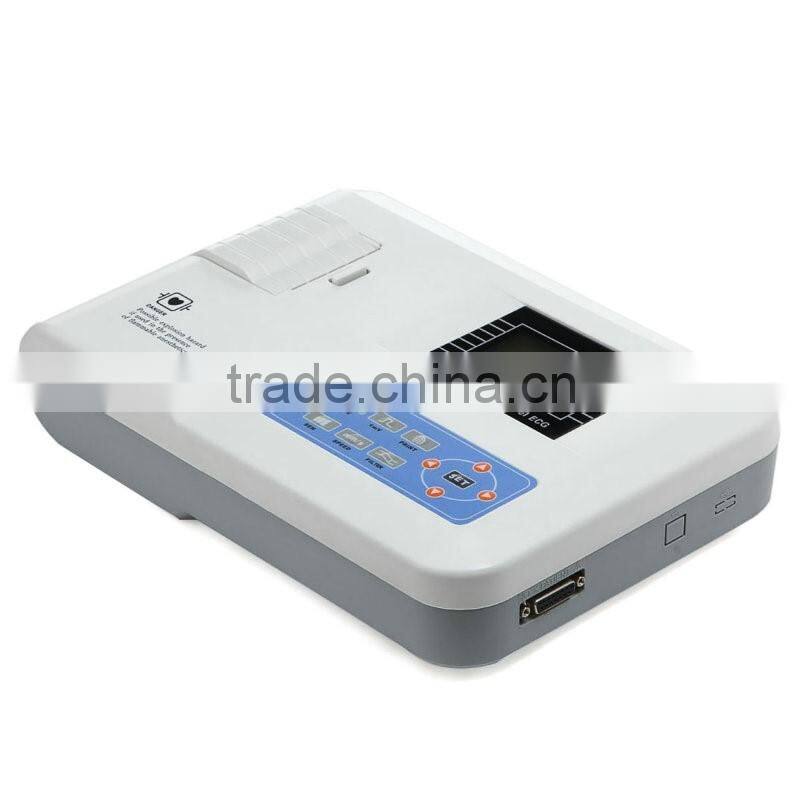

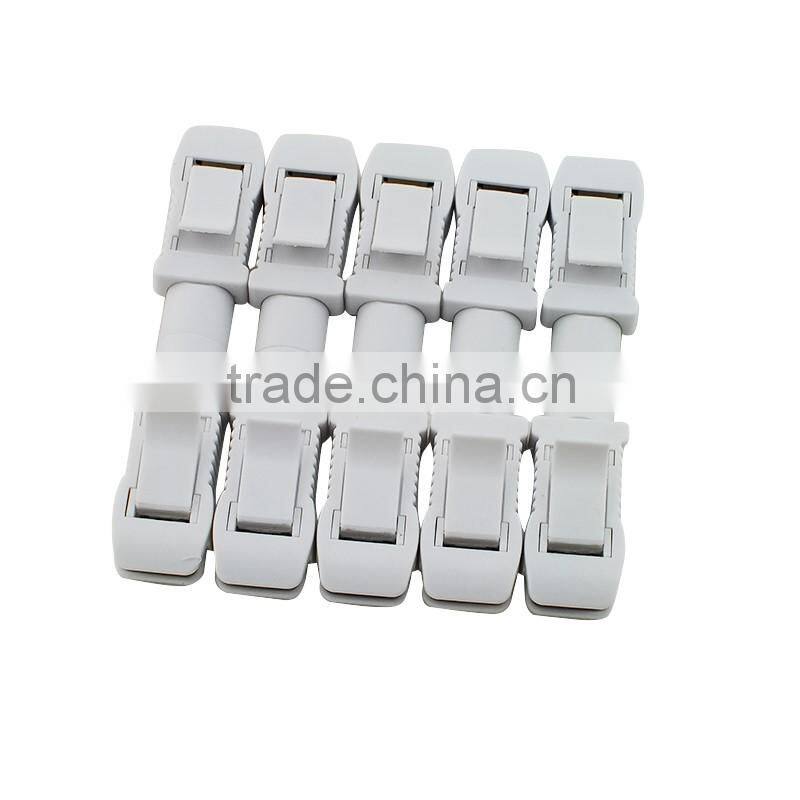

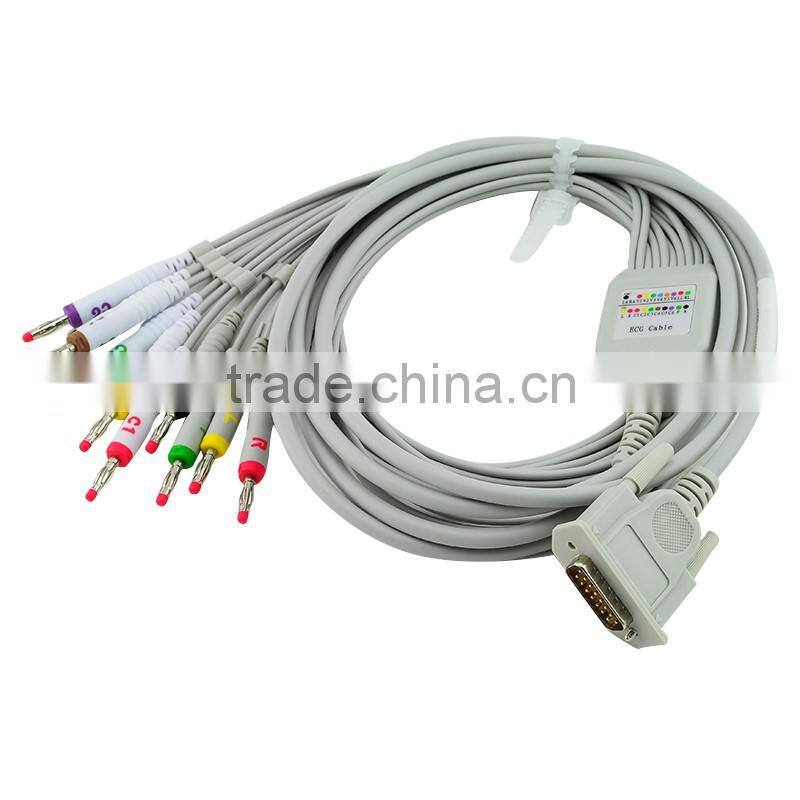

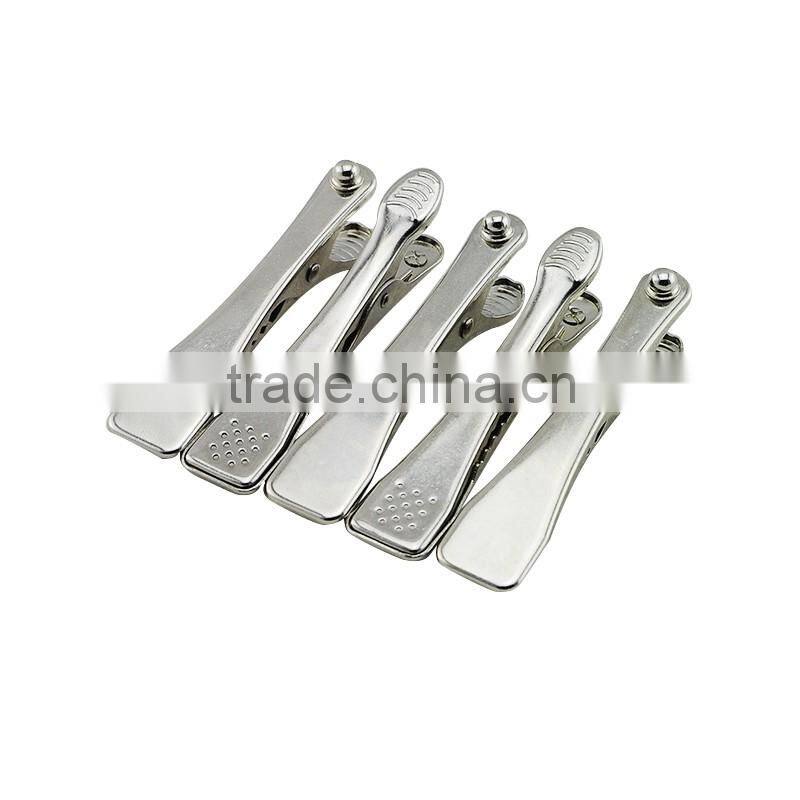

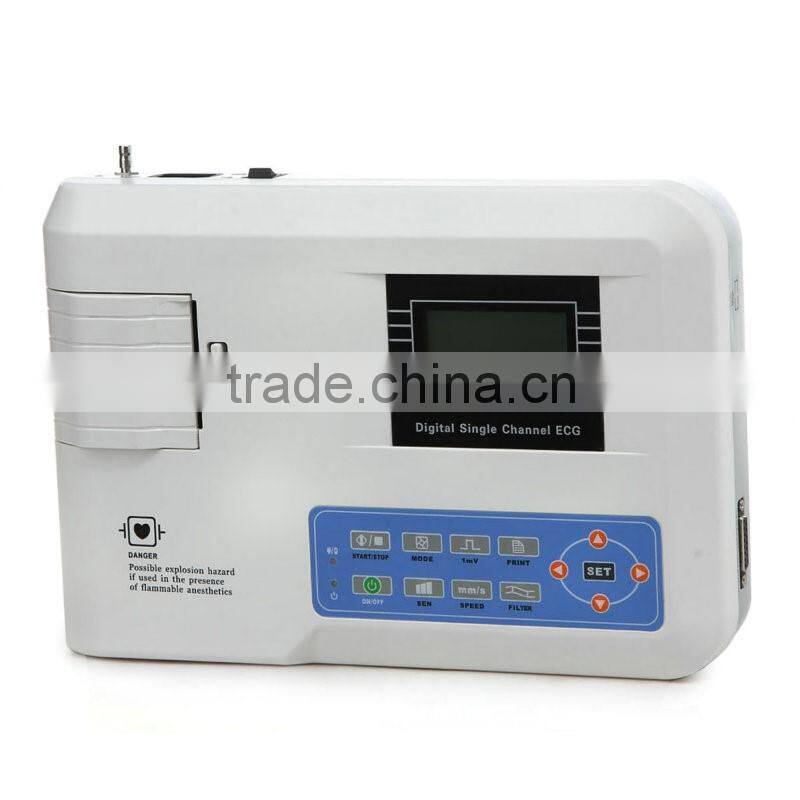

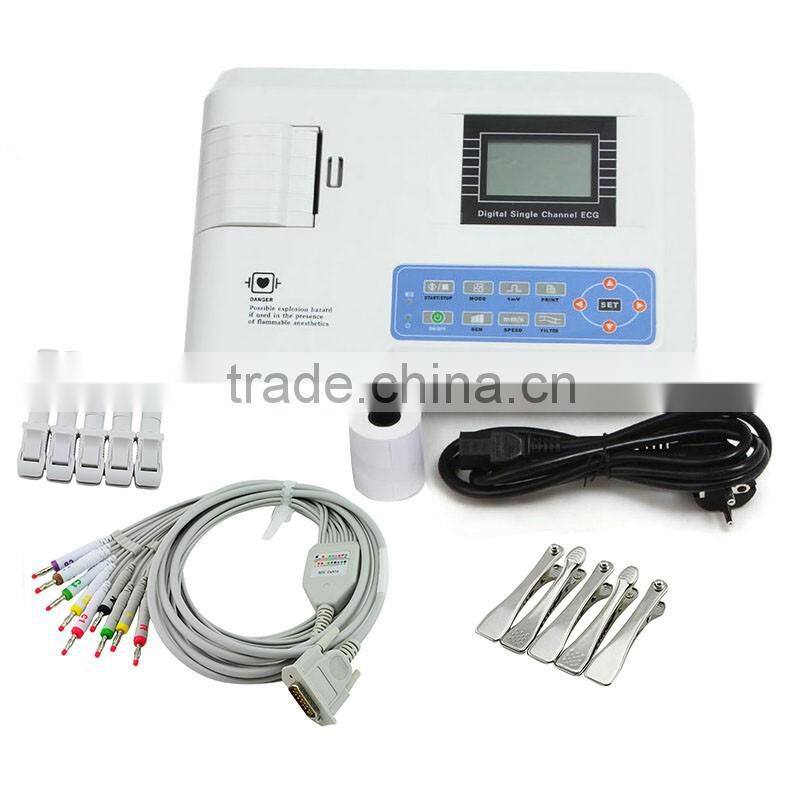

Detailed Images
