2016 New Handheld Ultrasound Scanner Palm Ultrasound Machine

 2016 new Handheld Ultrasound Scanner palm ultrasound machine

Description:

This Handheld Ultrasonic diagnostic instrument (here in after referred as instrument) adopts full digital beanformer (DBF); full digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.; display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode; with a large memory and offers permanent storage, cine loop in real time; has measurements of distance, area, circumference, heart rate, gestational weeks and so on; Chinese and English transformation; pseudo color processing; real-time clock; many note functions as full-screen character noting; adpots large scale integrated circuit FPGA, MSF, surface mounting technology and so on.

Specifications:
- Full digital processing technology
- 6.5 inch LCD with clear image
- Various probes
- Cost effective
- Offer OEM service
Features:
- Full digital ultrasound core processing technology
- Anti-dazzle  laser laser engraving buttons feel comfortable
- Convex array / linear array / asperity , multi- frequency probe optional
- AC and DC power supply, with a large -capacity lithium battery
- 6.5  inch high-resolution LCD screen
- Wide viewing angle , anti-glare , image clear and more delicate
- Compact size : 302 × 152 × 40mm
- Host weight 1.2KG, handheld , chest , linked to a variety of applications
Clinical application:
- The abdomen, obstetrics, gynecology, emergency, routine inspection
-Troops, ambulance, teaching, family medical special environment inspection, etc
- Department of health, or reproductive service inspection
Display size:
6.5 inch LED displayer

Display modes:
B, B/B, 4B, B+M, M;

Image multiplying factor:

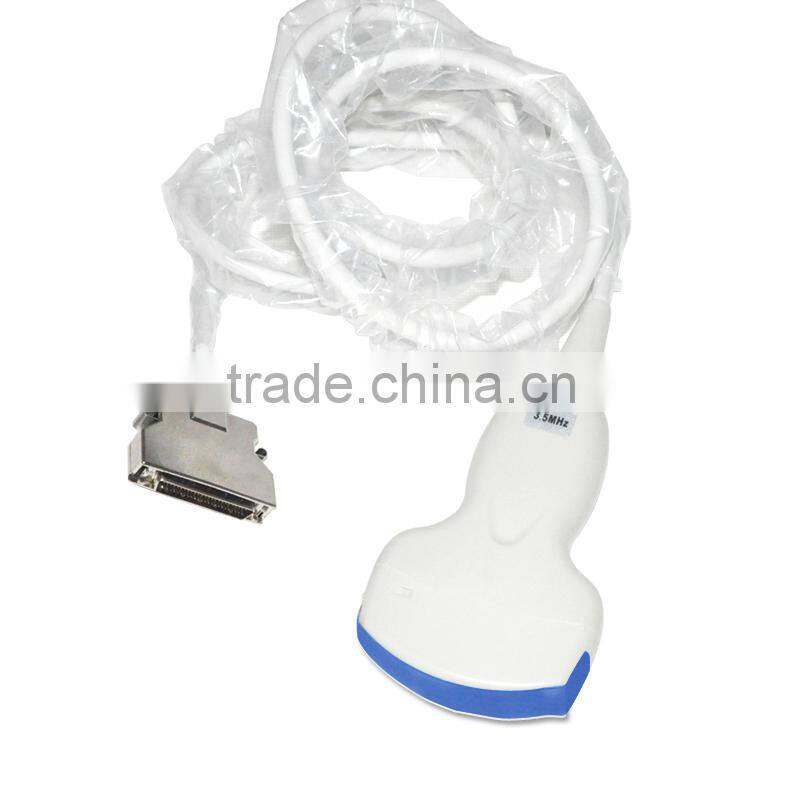

3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes),×0.8, ×1.0 (display penetration depth);

E-zoom:
Magnify 2 times of real time image
Dynamic range:
0~120dB adjustable.
Focus position:
Dynamic electron focusing.
Image processing:
8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

Gray scale:
256 levels
Frequency conversion:
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe.

Measuring function:
Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
Annotation function:
- Hospital name, patient’s name, age and gender
- Kinds of body marks (with probe’s position)
- Full-screen character annotation
- Real-time clock display

Puncture guide:
3.5MHz convex array probe can display puncture guide line in B mode.

Gain control:
8 segments TGC and overall gain can be adjusted respectively.
Image polarity:
Left and right flip, up and down flip.
Capacity cine loop:
Real time display 256 consecutive images
