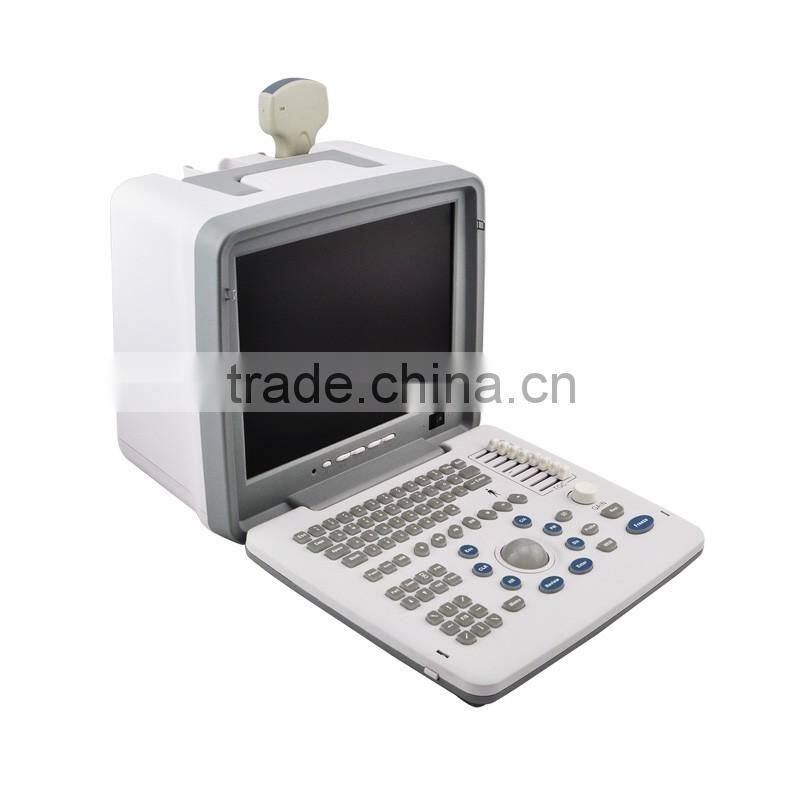

2016 Large Screen LED Good Image Full Digital Portable Ultrasound Scanner Machine With Probe-External Workstation (80 Element)

Large Screen Good Image Full Digital Portable Ultrasound Scanner Machine with Probe-External Workstation (80 element)

Features for Ultrasound Scanner:
DBF: Digital Beam Forming
RDA: Real-time dynamic aperture imaging
DRA: Dynamic real-time acoustic apodizer
DRF: Dynamic receiving focus
DFS: Dynamic frequency scanning

Ensure that the image is not distorted, edge clearer, level richer
Humanized operating design
8 sections TGC gain adjustment
With abundant built-in software packages
Comprehensive software measurement capabilities, to allow more extensive clinical application
Two probe connectors
Probe connected with a variety of choice to achieve maximum functionality.
Excellent value for money
VLSI, advanced technology, stable performance
Reasonable cost control, to achieve the perfect embodiment of price and performance

Specification for Ultrasound Scanner:
- Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
- Local zoom: 2 times local zoom in real time
- Dynamic range: 64dB – 96dB adjustable
- Focus:      4-segments dynamic electronic focuses selected
- Gray scale: 256
- Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
- Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame  correlation, spot correlation, linear interpolation, etc.
- Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected
- Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and  calculating fetus weight, etc.
- Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number,  gender, age; 16 body marks with probe location, full screen character annotation, real time clock display.
- Puncture lead: Image B: Puncture guide line under B mode
- Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain  adjustable.
- Image reverse: left/right, black/white, up/down
- Storage: 128 images permanent storage
- Cine loop: 256 images real time display cycling/one-by-one checked
- Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can  be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.

Standard configuration:
10-inch SVGA high resolution monitor
2 probe connector
1 USB

Optional:
80 elements R60, 3.5MHz multi-frequency convex probe
High frequency linear probe
Electronic trans-vaginal probe
Rectal probe
Video thermal recorder
3D Ultrasound image working station, etc.

Package Content:
- Main Unit:                                                    1 each
- Power cable:                                               1 each
- Ground Line:                                               1 each
- Fuse (3A):                                                   2 each
- User Manual in English:                               1 each
- Packing list:                                                 1 each
- Optional part:                                               1 set

Package: Standard export carton.

Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.

4. OEM/ODM services are available.
