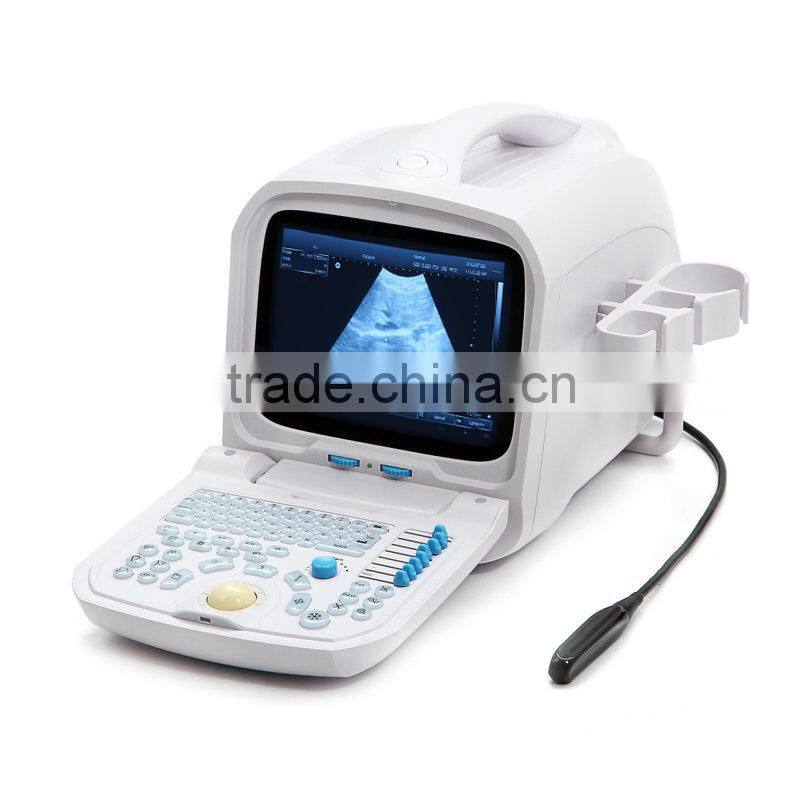

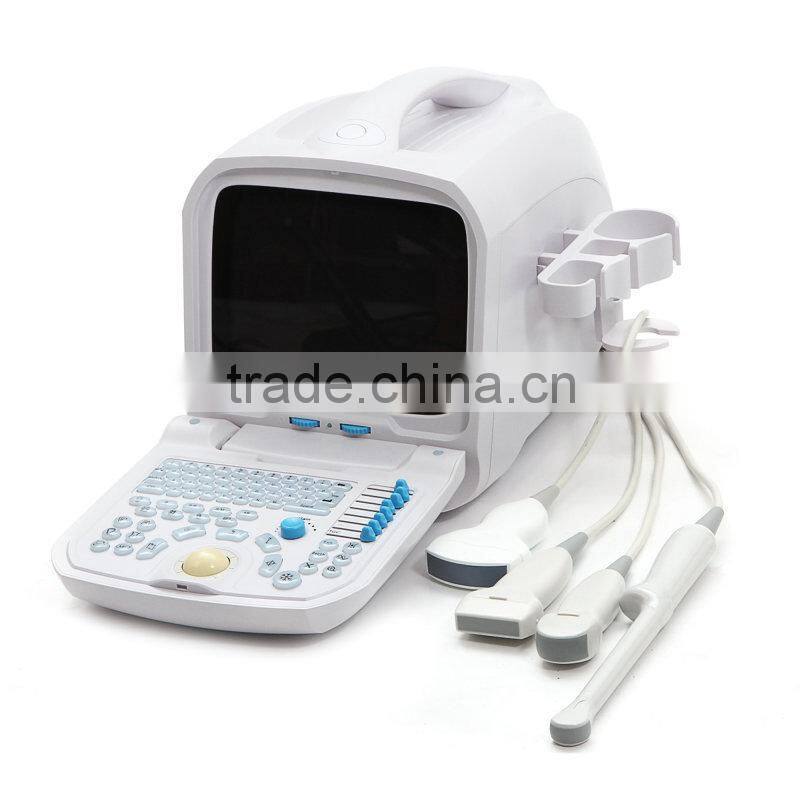

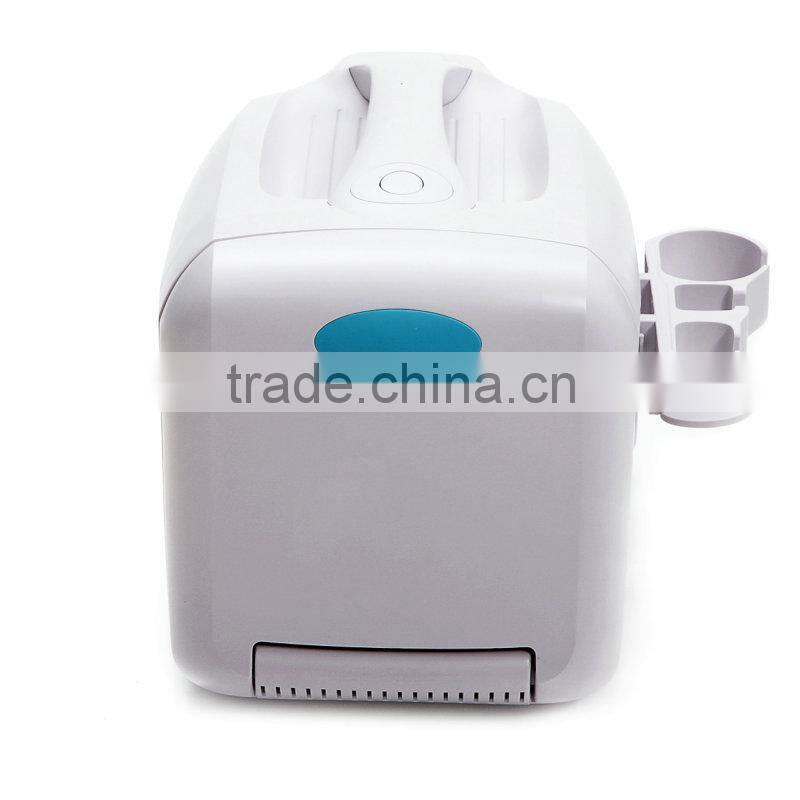

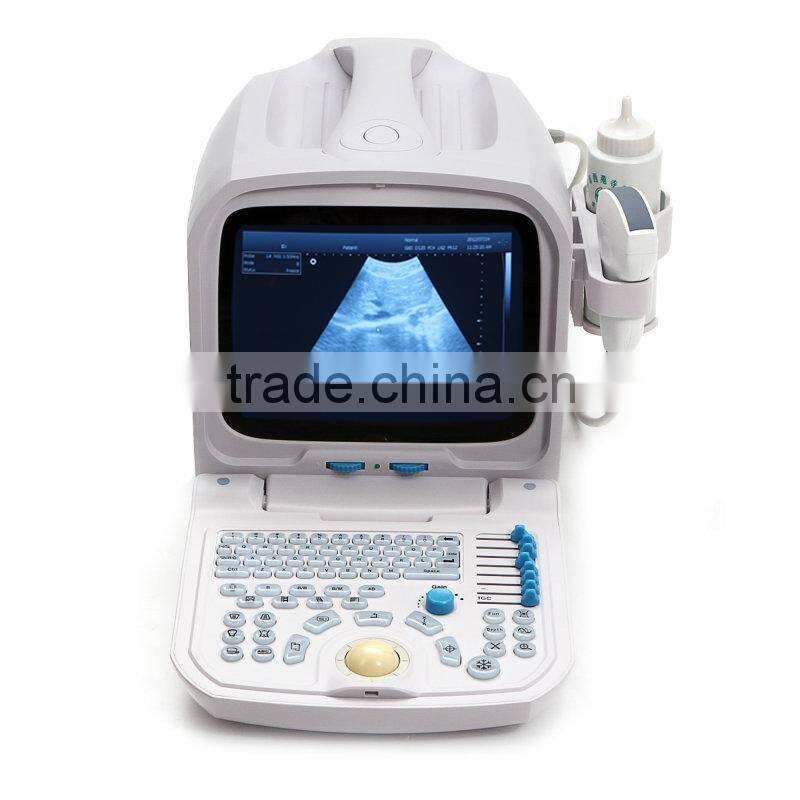

CE Mark Medical Equipment Portable Ultrasonic/Cheapest Ultrasounic Scanner/Machine 3.5Mhz Multi-frequency Convex Probe-Shelly

CE Mark Medical Equipment Portable ultrasonic/Cheapest ultrasounic Scanner/Machine 3.5Mhz multi-frequency Convex Probe-Shelly

Features for Portable Ultrasound Scanner:

- Application of FPGA& SMT technology, brief circuits with reliable performance

- Dynamic frequency imaging, multistage focusing, aperture control

  - Multi-frequency (4-frequency) & high sensitivity probe contributes to high resolution images

  - Applicable to abdominal, obstetrics, gynecological, urological and small parts diagnosis

  - Cline-loop & permanent image storage

  - 8-segment TGC

  - Built-in color coding module & VGA video outlet

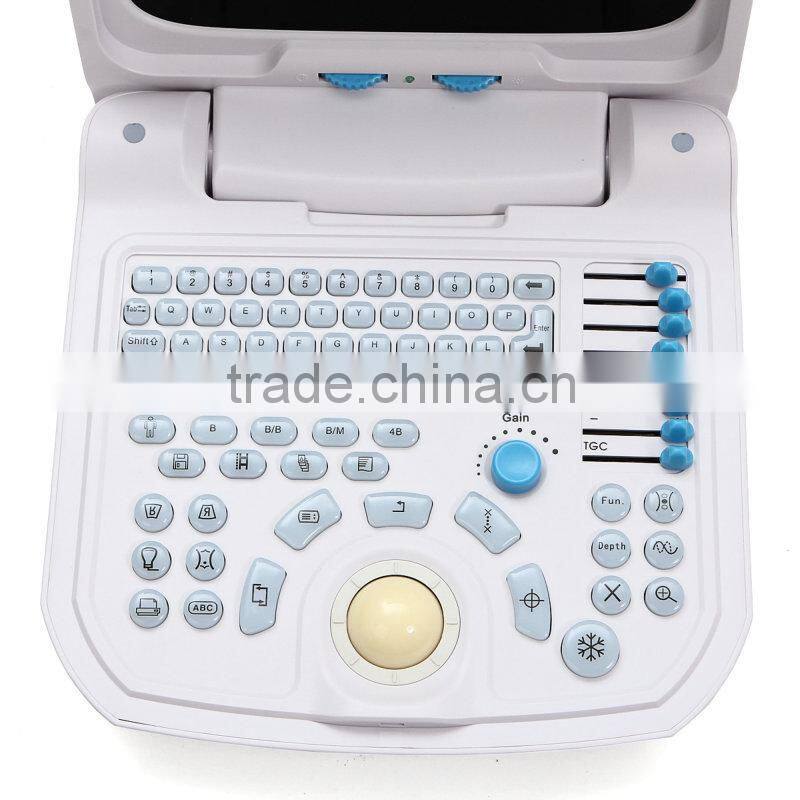

  - User-friendly with one-touch keyboard & trackball operation

  - USB port

Specification for Portable Ultrasound Scanner:

- Display modes: B, B+B, B+M, M, 4B

  - Scanner depth: 230mm

  - Gray scale: 256

  - Image magnification: x0.8, x1.0, x1.2, x1.5, x2.0

- Cline-loop: maximum 128 frames

  - Permanent Image storage: 32 frames

  - Image conversion: up/down, left/right, black/white

  - Local zoom: 4(can be used at frozen/real-time)

  - Frame correlation: selectable 4 levels

  - Body marks: 43

  - Pseudo color processor: 7 colors

  - Video output: PAL-D, VGA

  - Monitor: external monitor can be used

  - Measurement: distance, circumference, area, heart rate, pregnant week, fetal weight, EDD

  - Comments: real-time clock, date, scanning depth, model of probes, parameter of frame correlation, combination of focus, patient’s ID, gender, age

  - Power supply: AC220V±22V or AC110±11V, 50Hz±1Hz or 60 Hz±1Hz

  - Gross Weight: 12kgs

  - Net Weight: 10kgs(including probe)

  - Carton Size: 47cm x 39cm x 39cm

Optional:
- Micro-convex probe
- High frequency linear probe
- Electronic trans-vaginal probe
- Micro-Convex probe
- Video thermal recorder
- 3D Ultrasound image working station, etc

Package Content:
- Main Unit:                                       1 each
- Convex probe:         1 each
- Power cable:                                  1 each
- Ground Line:                                  1 each
- Fuse (3A):                                    2 each
- User Manual in English:                 1 each
- Packing list:                                    1 each

Payment Information:
We accept payment by following payment methods:
- PayPal:

 PayPal enables you to send payment quickly and securely online
- Western Union:

You can select to pay by Western Union during check out
- Bank wire transfer:

 You can select to pay by bank wire transfer during check out
You must offer home or mobile phone when the item's Value exceed 100 (USD, EUR, AUD, GBP)

Shipping Method & Time:
- All items will be shipped by EMS, it takes 7-10 workdays for delivery.

- Optional Express by DHL, you can contact us for DHL freight, it takes 3-7 workdays for delivery.

- All items will be shipped to buyer’s confirmed address in order confirmation.
Paypal address should be provided if payment made by Paypal. Please check your PayPal address is right.

Warranty Policy:
Every product has 18 months Warranty!
