Newest Touch Screen Palm Multi parameter Patient Monitor with bluetooth function PC Sync software by USB cable-Maggie
US$ 160 - 680
/ Set
1 Set(Min. Order)
- Beijing or Tianjin
- Credit Card
You May Like
-
5.1 inch touch screen Multi parameter Patient Monitor with bluetooth function PC Sync software RPM-8000B
-
Carejoy 7 Inch Patient Monitor multi parameter ECG NIBP SPO2 TEMP RESP PR CE ISO certified RUS-9000F
-
Touch Screen Handheld Multi parameter Patient Monitor with bluetooth function PC software
-
Big sale 7 Inch Vital Sign Patient Monitor 6 parameter ECG NIBP SPO2 TEMP RESP PR by CE ISO FDA approved
-
Professional portable 7 Inch Patient Monitor 6 parameter suitable ICU CCU hospital clinic by CE ISO FDA approved
-
Carejoy Wholesale cheap price 7 Inch Patient Monitor 6 parameter ECG NIBP SPO2 TEMP RESP PR medical monitoring CE ISO certified
Product Details
| Type | Visual Acuity Examination Apparatus | Brand Name | Carejoy | |
| Place of Origin | Beijing, China | Model Number | RPM-8000B |
Product Description
Product Description

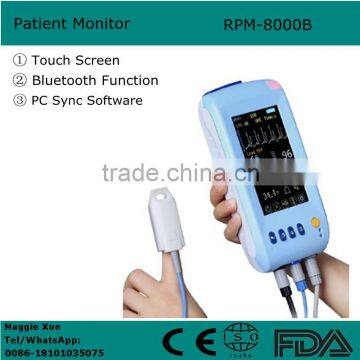

Handheld Patient Monitor
Description:
Introduction for Palm Patient Monitor
RPM-8000B Palm multi-parameter patient monitor has super high quality and very competitive price.
All-in-one designed module with 5 standard parameters: ECG, NIBP, SPO2, Pulse Rate and Temperature.
Free matched two sets advanced software is for data downloading and tele-monitoring, and has convenient & rapid Bluetooth printer can print datas and ECG waveform.
This machine can meet all requirements, and meet requirements of hospital & other departments in emergency treatment, first-aid, rescue,etc.
RPM-8000B Palm multi-parameter patient monitor has super high quality and very competitive price.
All-in-one designed module with 5 standard parameters: ECG, NIBP, SPO2, Pulse Rate and Temperature.
Free matched two sets advanced software is for data downloading and tele-monitoring, and has convenient & rapid Bluetooth printer can print datas and ECG waveform.
This machine can meet all requirements, and meet requirements of hospital & other departments in emergency treatment, first-aid, rescue,etc.
Function for Palm Patient Monitor
Touch screen,5.1 inch color TFT LCD, simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15hours running time, support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm;
Long time monitoring and sleeping monitoring;
Easy to carry, suitable for ambulance center, has the stand for fixing;
Touch screen,5.1 inch color TFT LCD, simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15hours running time, support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm;
Long time monitoring and sleeping monitoring;
Easy to carry, suitable for ambulance center, has the stand for fixing;
Prior:
Storage and review data up to 9999 user ID and 3888groups via Trend Graph and Trend List.
USB and Bluetooth data upload;
Horizontal and vertical display selectable;
Big font screen interface is easy to observe;
Back light can be adjusted;
Free advanced software
Optional Bluetooth printer to print the waveform and data out.
Storage and review data up to 9999 user ID and 3888groups via Trend Graph and Trend List.
USB and Bluetooth data upload;
Horizontal and vertical display selectable;
Big font screen interface is easy to observe;
Back light can be adjusted;
Free advanced software
Optional Bluetooth printer to print the waveform and data out.
Specifications
Following is the specifications, which has complete configuration of ECG,TEMP, NIBP and SpO2.
1. General Specifications:
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
2. Power Supply
AC Power Adaptor
Input: 100~240VAC, 50/60Hz, 0.7A
Output: DC 5V, 1.5A
Battery
Li-ion rechargeable battery, 3.7V,/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃, NIBP working period is 15 minutes)
Recharge Time: 10 hours.
3. Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
AC Power Adaptor
Input: 100~240VAC, 50/60Hz, 0.7A
Output: DC 5V, 1.5A
Battery
Li-ion rechargeable battery, 3.7V,/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃, NIBP working period is 15 minutes)
Recharge Time: 10 hours.
3. Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
4. Monitoring Parameter
ECG
Input:3- lead ECG cable, standard AAMI cable connector
Lead Selection:I,II,III
Gain Selection:×1,×2,×4,×8
Sweep Speed: 12.5, 25, and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB), filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%), ±3 %(70%~89%),unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range:30 bpm~250bpm
Measurement Rage: Adult 30 mmHg~255mmHg, Pediatric 30 mmHg~160mmHg
Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope. The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
5. Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
6. Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper,Paper roll diameter≤Φ 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Power Supply:
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) 1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
ECG
Input:3- lead ECG cable, standard AAMI cable connector
Lead Selection:I,II,III
Gain Selection:×1,×2,×4,×8
Sweep Speed: 12.5, 25, and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB), filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%), ±3 %(70%~89%),unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range:30 bpm~250bpm
Measurement Rage: Adult 30 mmHg~255mmHg, Pediatric 30 mmHg~160mmHg
Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope. The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
5. Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
6. Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper,Paper roll diameter≤Φ 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Power Supply:
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) 1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
Packing list
- Color palm patient monitor main unit 1 pc
- 3-lead ECG cable ( include surface TEMP probe) 1pc
- Adult finger SpO2 sensor 1 pc
- Adult NIBP cuff 1 pc
- NIBP extension tube 1 pc
- PC software CD 1 pc
- BlueTooth Radio 1pc
- USB cable 1 pc
- AC power adaptor 1 pc
- The operator’s manual 1 pc
- Color palm patient monitor main unit 1 pc
- 3-lead ECG cable ( include surface TEMP probe) 1pc
- Adult finger SpO2 sensor 1 pc
- Adult NIBP cuff 1 pc
- NIBP extension tube 1 pc
- PC software CD 1 pc
- BlueTooth Radio 1pc
- USB cable 1 pc
- AC power adaptor 1 pc
- The operator’s manual 1 pc
Selectable Accessory
- Pediatric finger Spo2 sensor
- Neonatal wrap SpO2 sensor
- Bluetooth printer
- Pediatric finger Spo2 sensor
- Neonatal wrap SpO2 sensor
- Bluetooth printer
