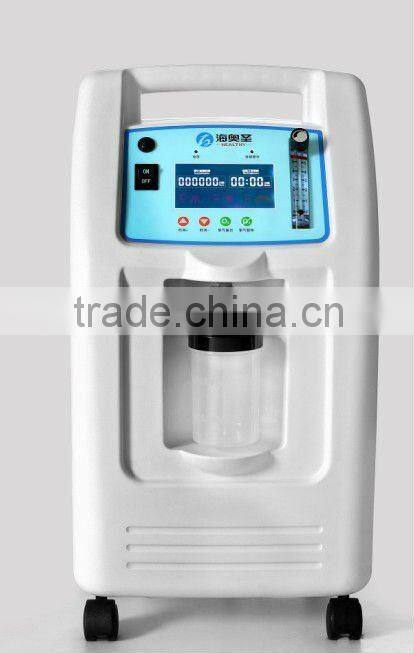

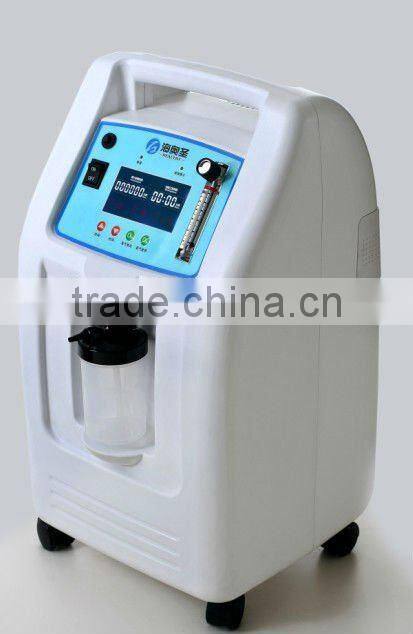

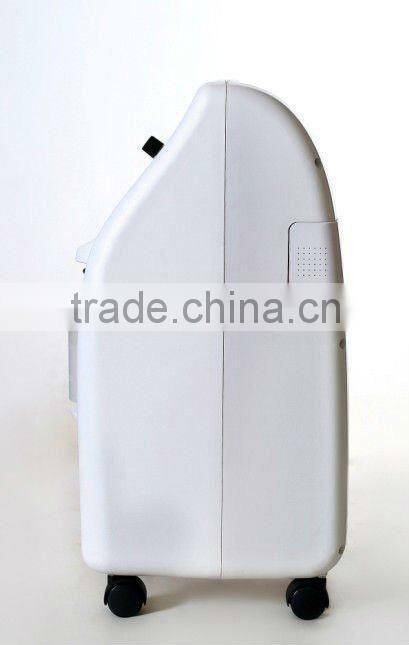

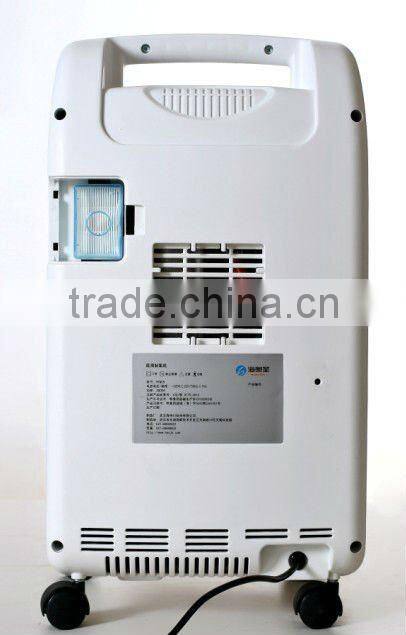

Medical Oxygen Concentrator Household Oxygen Therapy Device

Household protable Oxygen concentrator

Main Technical

Voltage/Frequency: 220V ± 22V,50Hz ± 1Hz

Power: 350VA

Size: 320*310*605(length×width×heighth)mm3

Weight: <16.8 kg
Gas channels: 1

Oxygen Output Pressure: 0.04 ~ 0.06 MPa
Oxygen flow rate: (0 ~ 5) L / min

Oxygen thickness:  ≥ 90% under flow rate: (0 ~ 5) L / min
Moisture content: ≤ 0.07g/m3

Carbon dioxide content: ≤ 0.01%
Flow adjustment range: continuously adjustable under the flow rate: (0 ~ 5) L / min; tolerance should be ± 10%
Noise: <60dB (A)
Storage conditions: temperature -40 °C ~ 55 °C, humidity ≤ 80%, atmospheric pressure 50 kPa ~ 106kPa

Application Range

The instrument is used for health care.

Working Theory of Product

1. Molecular sieve: Molecular sieve is the aluminosilicate crystals  produced by means of artificial hydrothermal synthesis, which is divided into different models according to its different Si-Al-ratio. Based on the size of the internal cavities inside the crystal, it may accordingly adsorb or exclude different molecules, and decide the sequence of absorption by different molecular polarity and relative polarizable extent of substances, therefore lead to a separation. So it’s called "molecular sieves."
2. The principle of pressure swing absorption: molecular sieve generates different absorption capacity to different gases, and it has a very strong absorption capacity to certain gas. Meanwhile, the molecular sieve’s absorption capacity to the selected gas is related to the environmental pressure, the greater is the environmental pressure, the stronger is its absorption capacity to the selected gas.

3. The principle of oxygen-making: The oxygenator get use of the molecular sieve’s character that the internal pressure of a sealed container containing of molecular sieve will increase when injecting air into it. At this time, the molecular sieve will absorb a lot of nitrogen in the air with the increasing of ambient pressure, while the oxygen in the air is still existed in gaseous form, then the oxygen are collected through some pipelines. This process is called "absorption" process. When the nitrogen absorption process in the container reaches a certain level, then exhaust of the vacuum container and nitrogen will be released from molecular sieve with the ambient pressure decreases. This process is called "desorption" process.
