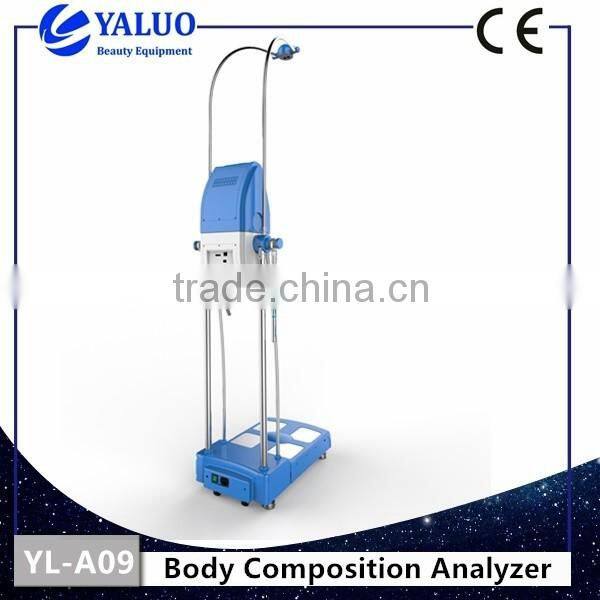

YL-A09 Body Composition Analyzer for Fat Water Muscle Detector

-Grasp the slimming effect to make the slimming treatment, providing the scientific basis.
-The reasonable ease and weight control help maintain the best physical strength Distingush between muscle type overweight and obesity, find the best control weight method.
-Direct energy intake and dietary intake of nutrients in proportion.
-Guiding take nutrition recovery measures to promote the hard synthesis muscles.
-Evaluation the rehabilitation treatment effect, guiding scientific body slimming with scientific training, rehabilitation, and nutrition.
-Understand and detection teenagers the status of the physical and health, developing their the feasible exercise program.
-Understand the environment, nutrition and other factors on body composition effects.
-Know about the difference of similar others group ingredients.
-As reduce cardiovascular, diabetes and some cancers and other chronic disease incidence of the important preventive measures.

Test Method

multi-frequency bioelectrical impedance analysis

 (MFBIA)

Test Part

bioelectrical impedance analysis on the part of left

upper limb, right upper limb, trunk, left lower

extremity, right lower extremity

Test Frequency

three differenct frequency(20KHz, 50KHz, 100KHz)

Electrode Method

8 point contact eletrode

Computing Method

do not estimate through empirical value

Output Value(25)

TBW, protein, mineral salt, body fat, bone weight,

IBW, fat-free weight, SMM(skeletal muscle),

BMI(body mass index), PDF(percentage of body fat),

WHP(waist-hip ratio), moisture ratio, obesity diagnosis,

nutritional assessment, weight assessment, obesity

assessment, goal weight, weight control, fat control,

muscle control, health assessment, basic metabolism,

bioelectrical impedance

Rated Current

less than 180μA

Voltage

AC100V/240V, 50Hz/60Hz

Power

15W

Screen

320*240 STN LCD touching screen

Operation Language

English and multiple language optional

Values Storage

50000*10 and SD card unlimited expansion is available

External Storage

SD card transfer to computer for large storage

External Interfaces

RJ-45, USB2

Printer Interfaces

USB

IC Card System

standard IC card control

Printer

A4 color paper ink-jet printer(manufacturers

appoint the model), internally installed thermal

MEAS. of Package

package:

82*52*32cm(carton No.1)

160*52*47cm(Carton No.2)

Test Time

no more than 2 minutes

Operation Environment

temperature: 10~400°C(50~1040°F)

humidity: 30~80%RH, 500~600hPa

Conservation Environment

temperature: 0~400°C(32~1040°F)

humidity: 30~80%RH, 500~600hPa

Test Scope of Weight

10~200kg

test scope of age: 10~99 ages

test scope of height: 90~200cm

External Expansion Project

ultrasonic height measurer(selective purchasing)
