Micro Camera Skin and Hair Auto Diagnostic Tool Visia Skin Analysis Machine

micro camera skin and hair auto diagnostic tool

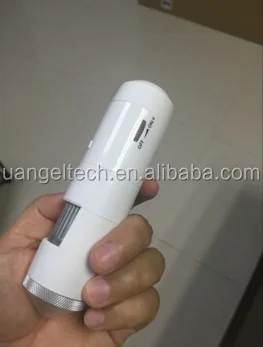

this production is a well-designed portable digital microscope, and widely used in beauty care field. two modes
(wifi/usb) can be selected, Wifi mode is perfectly matched with IPAD, IPHONE and Android devices (Tablet PC and Mobile), USB mode is perfectly matched with Windows .

1.Specification

Image :CMOS Sensor
Controller: High Speed DSP (M-jpeg)
Magnification Range: 5X ~ 200X (Manually)
Focus Range: 0 ~ 40mm, other ranges can be customized
Frame Rate: VGA15~20 f/s Under 300 LUX Brightness
Capture Resolution: 640*480, can be magnified and minified
Take Images: SNAP Shot , Freeze
Video Capture Resolution: 640*480
WIFI Standard:IEEE 802.11 b/g/n standards compliant
Frequency Range: 2.400 ~ 2.4835GHz
Light Source: Built-in 4~ 8 White-light LED and adjustable illumination ensure the magnified images are clear and bright
Illumination Scope: 0 ~ 30000LUX
Brightness Control: Manual adjustment
Fixed Foundation: Tailor-made for the microscope
Power Supply: Rechargeable 1000mA self-protection lithium battery

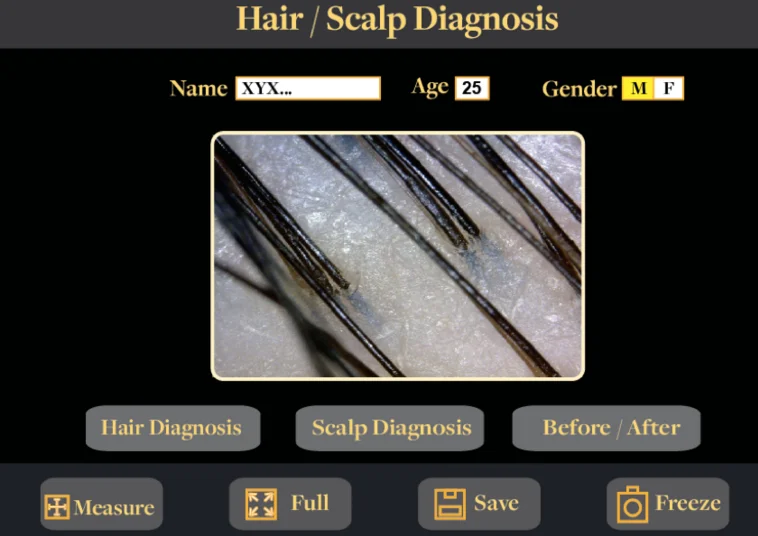

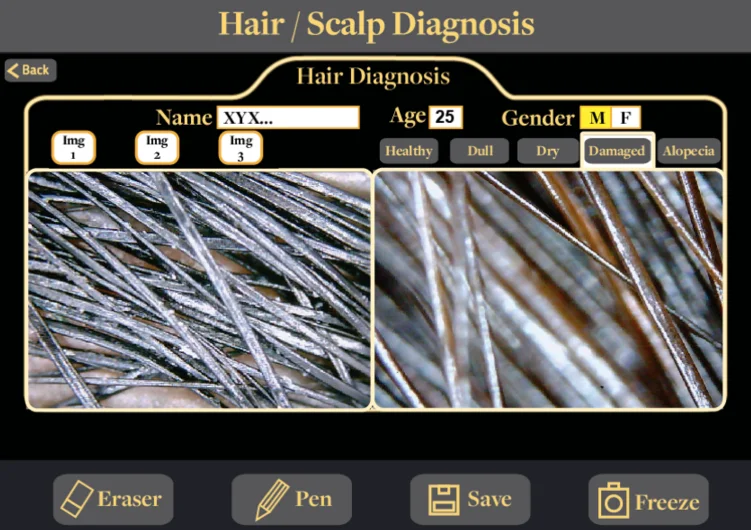

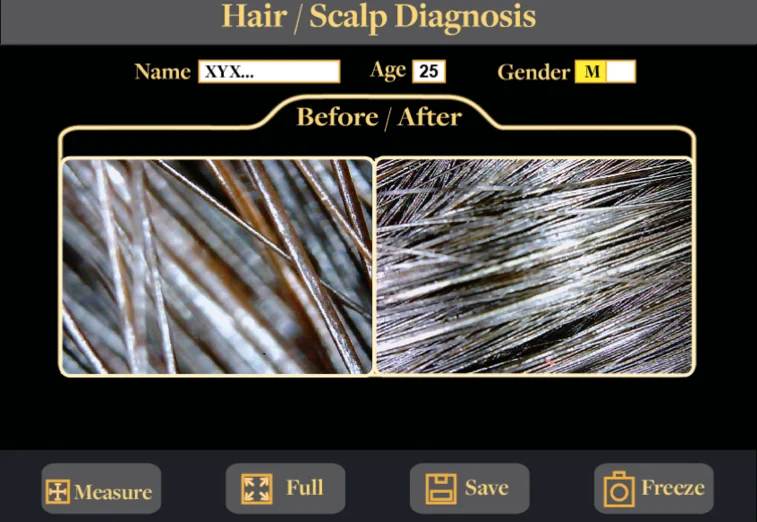

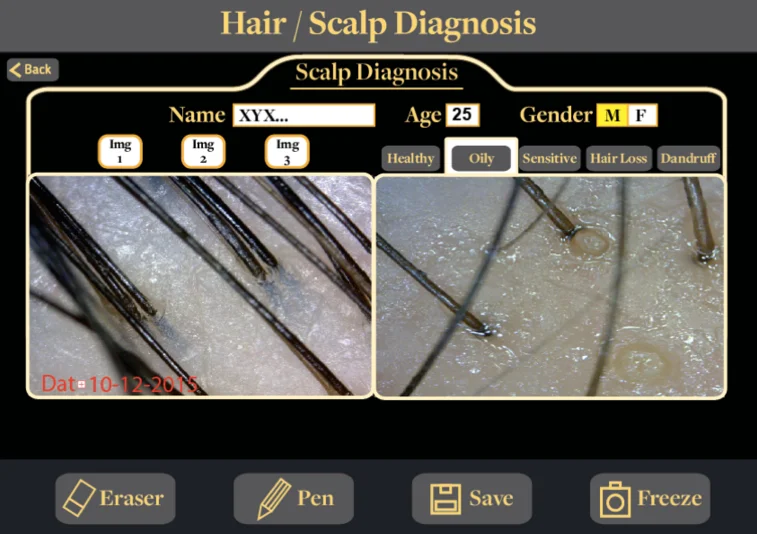

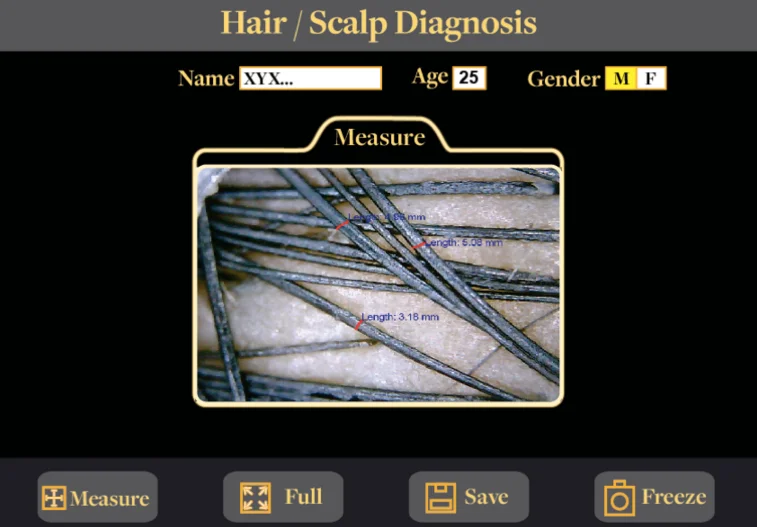

Application Software: Hair check
Support O/S: WIFI capable: such as IOS and Android
USB capable: Win XP , Vista,Win7, Win8
Language: Chinese, English (other languages can be customized)
Product Dimension: 142 mm ( L ) X 37 mm ( D )
Product Net Weight: 100g
Available Color: Black/Blue

2.Notes before use

Don’t disassemble the devices or change the interior parts, that would cause damage.
Don’t use alcohol or organic solvents to clean the surface of devices
Don’t touch the lens with your fingers.
Avoid outdoor use if possible.
Storage temperature:°C ~ 40°C, Humidity: 45%RH ~ 85RH%.
if product gets wet, turn off the power immediately.
Wireless signal range within 10 m

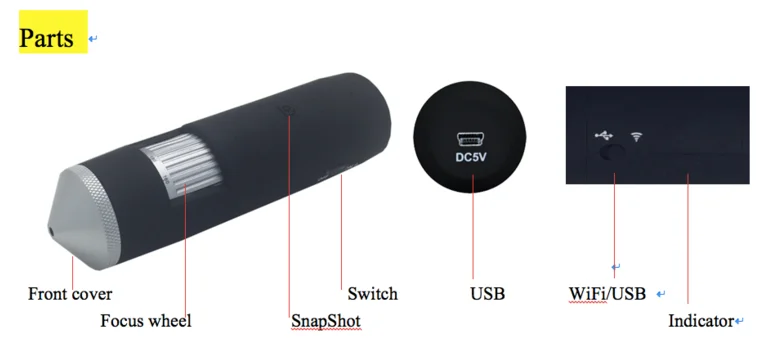

3.Standard parts and accessories

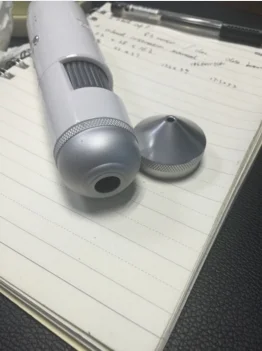

1) Microscope (1pcs)
2)Charger and USB cable(1pcs)
3)Special base
4) CD
5) Warranty card (1pcs)
