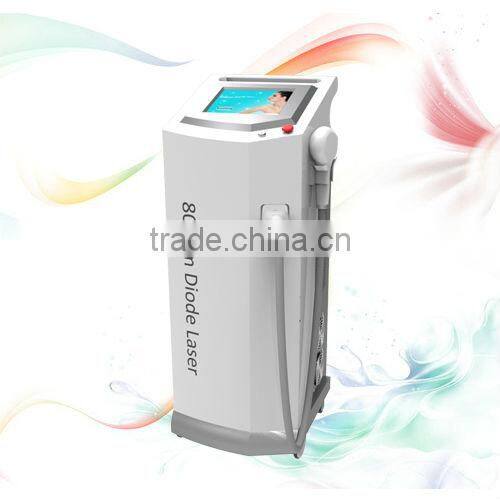

2014 Newest Ipl Hair Removal/808nm 50-60HZ Diode Laser Permanet Hair Removal Machine Clinic

Working Theory

1.Lasers and light sources use the principle of selective photo thermolysis to eliminate hair and its potential regrowth without damaging the surrounding skin.

2.During a laser hair removal treatment, light passes through the skin and is absorbed by the melanin in the hair shaft. This absorption raises the temperature of the hair follicle and thermally destroys the cells responsible for regrowth.

3.The attributes of the light (wavelength, pulse duration and power) are chosen to ensure damage to these cells and not to the rest of the skin.

Specifications

 2014 Newest IPL Hair Removal/808nm

Diode Laser permanet hair removal machine

Advantages :

1, The global unique 12*20mm big spot hair removal crystals, it can save the treatment time, increase the energy output and reduce the treatment cost.

2, Permanent remove the hircus,shank-feathering ,whiskers and body hair.

3, Super strong cooling circulatory system (water, wind and Semi-conductor), this can protect the stability of the instrument for a long time continuous operation.

4, 10.4 inch touch screen; The humanized designed expert treatment system; Multi-mode intelligent control; Easy setting energy and accurate positioning of hair make the operation simple and convenient.

5, The highest 150J/cm2 output power in the world and 400ms pulse width, which can make sure the best result of permanent hair removal and reduce the pain to the least.

6, The head can keep working for 20 million flashes, which prove that the high cost efficiency of our machine.

7, Use Germany micro channel cooling technology laser device, the output power can reach to 600W.

8, Plug-pull can replace the crystal plate of treatment handle according to the different treatment need.

9, A full range of self-test system, predict and detect possible failures and accidents occur.

10, Modular design for easy debugging maintenance and replacement, saving the cost of after-sale.

Treatment characteristics

1.Terminator 808 + combines the benefits of all 3 wavelengths, It is groundbreaking for the laser hair removal industry.

2. combined wavelengths covering the optimal treatment spectrum 808nm 755nm 1064nm,  the treatment Characteristics for different hair

3.Virtually painless

4.All skin types, even tanned skin

Features & Advantages of 808 diode laser

1) High energy, no pigmentation, excellent treatment result can be expected at the first treatment and suitable to all types of hair .
2) Long laser width, Effective for the hair follicles produce heat accumulation, Permanent hair removal.
3) Safety, Almost no skin scattering, no harm to the skin and sweat glands, no scar, no any side-effect
4) Skin Touching cooling system can make momentary epidermal anesthesia, no any painless during

, increases comfort during treatment .
5) Best thermostatic water cycle system guarantee semiconductor pump can't burn cavities due to overheating.
6) Self-checking and auto-protection mechanism to ensure the stability .

7) Strong Sapphire touch cooling system can make momentary epidermal anesthesia, no any painless during, increases comfort during treatment.
8) Quick: Squared big spot size could prompt the treatment speed, treatment speed and efficiency. Reduce treatment time for original 1/5.
9) The power module design is suitable for import and export business. It is convenient to maintenance.

Semiconductor laser hair removal machine is freezing through technological innovation, so that the treatment of head to negative temperature, unlike other laser burns the skin, to better protect the skin, hair follicle melanin by specific wavelength of laser absorption, and the heat exchange to destroy hair follicle, the laser energy can be shot down into the hair follicles within the hair follicle is destroyed energy decomposition, so that the hair follicles to stop growing, because the laser energy about 15% of the skin can penetrate the dermis layer, the epidermis and more with melanoma of the hair follicle deep through the heat damage to hair follicle degeneration and atrophy; achieve permanent hair removal results.







Technical parameter:



Laser type:Semiconductor laser
wavelength:808 nm
Output Mode:pulse output
Control Method:Touch control
Screen Size:10.4 Inch
Energy density:10-50J/cm2  (Deviation≤±2%)
Pulse width range:1-400ms
Spot size:12*20mm
Frequency:1-10HZ
Light spot surface temperature:0-30°C
Cooling System:Semiconductor+built-in water+Air Cooling triple cooling systems
Dimension:500×425×1120mm
Net weight:60kg
Fuse specification:Ø5×25 10A
Input Power:1800W
Power:AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ







Before & after pictures:

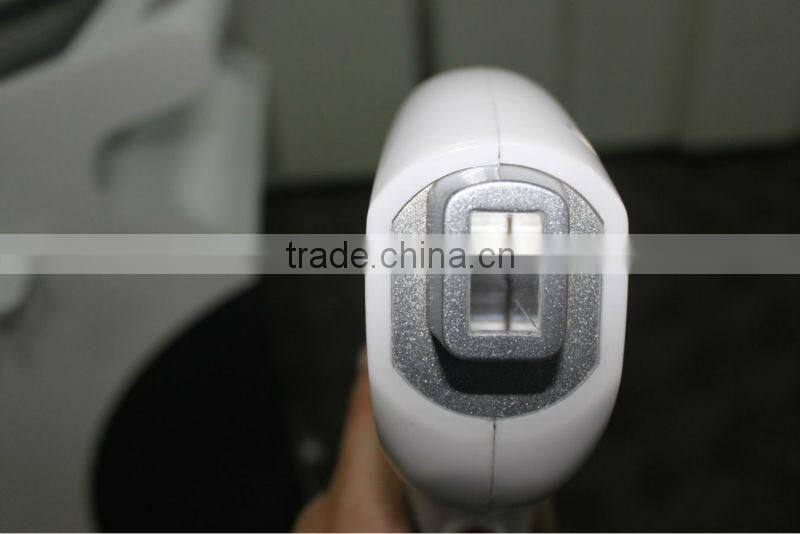

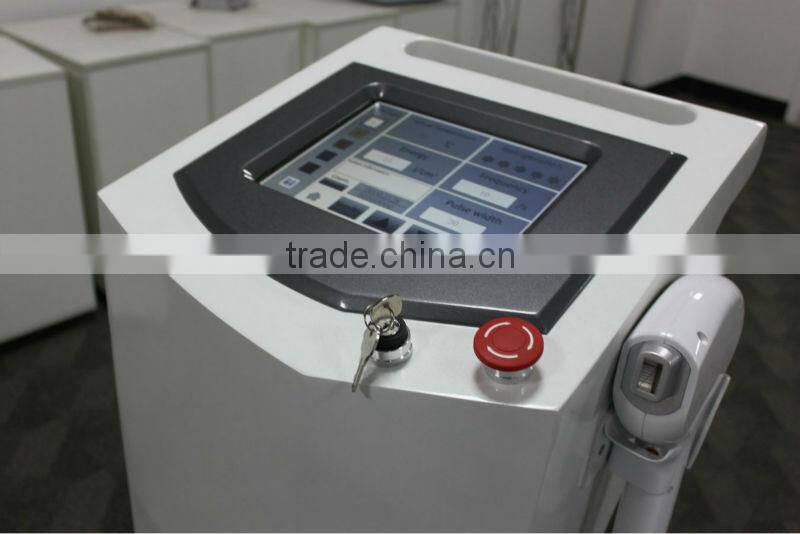

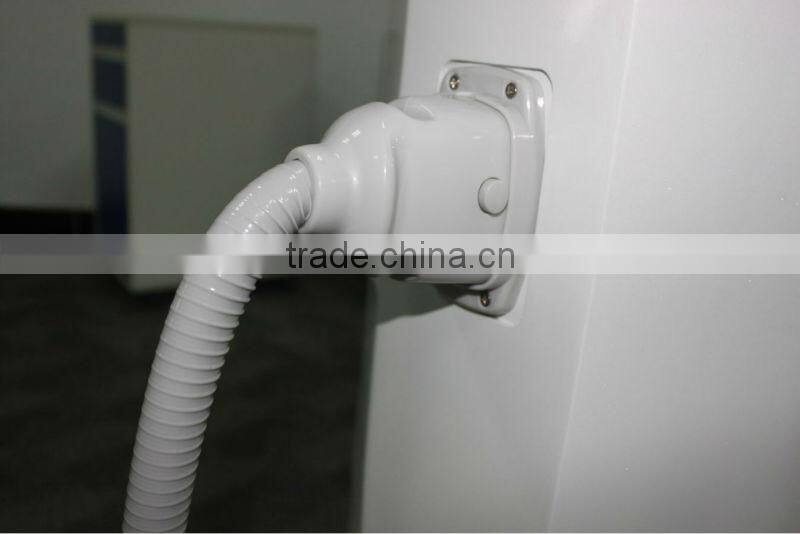

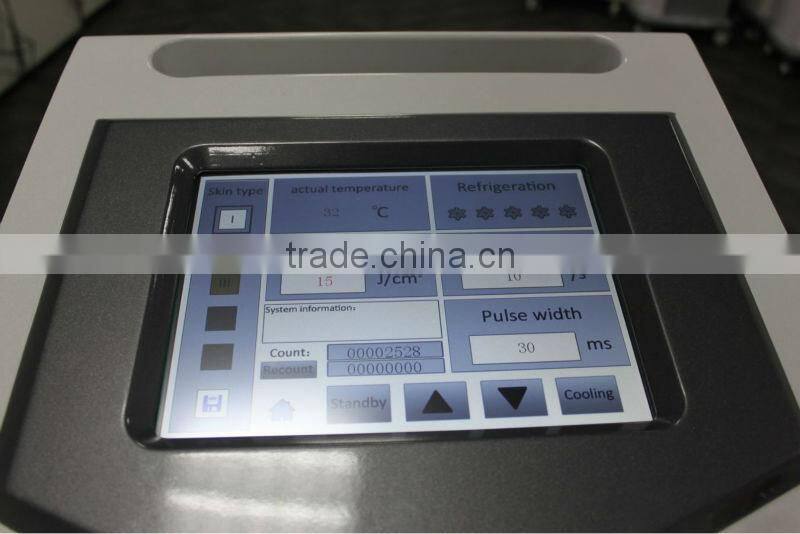

Detail pictures:











Our factory pictures:









Delivery Terms:



Contact me:

Beijing Nubway Company

Trade manager:cn1510126669

Skype: annie-nubway

Our Services

1.We will guarantee the quality of our equipment, all the beauty machines will have over 48 hours test, then the QC department check again the stability before packing.

2.If there is a deficiency, please leave message or call us, our technical department will check the machine situation face to face on internet or you take some videos to show the situation. We will give reply and solve method within 24 hours.
